Drainage Planning for Concrete Flatwork in the Bay Area: Slopes, Swales, and Code

Proper concrete flatwork drainage Bay Area design determines whether a surface lasts for decades or begins failing within a few seasons. Slope, swale placement, and local grading code compliance are not optional details — they are the foundation of every successful flatwork project. Contractors who treat drainage as an afterthought create problems that no sealant or patching can fix. Those who invest in concrete flatwork with drainage built into the design from the start protect both the surface and the structure it surrounds.

The Bay Area presents drainage challenges that are more demanding than most regions. Expansive clay soil dominates much of the terrain, and water that pools near slabs or foundations triggers seasonal swelling cycles that crack concrete and undermine structural stability. Winter storms deliver high rainfall volumes over short periods, stressing any drainage system not designed for peak flow. This combination of soil type and rainfall pattern means drainage design cannot be improvised on the job site.

This guide covers minimum slope requirements, drainage infrastructure options, California Building Code compliance, and the most common drainage failures observed on Bay Area flatwork projects — along with the lessons each failure provides.

Concrete Flatwork Drainage Bay Area: Why Slope Is Non-Negotiable

The Mechanics of Surface Drainage

Slope is the primary mechanism that moves water off a concrete surface. Without adequate slope, water sits on the slab, infiltrates through hairline cracks, and saturates the subbase — the compacted material beneath the concrete that provides load support. A saturated subbase loses bearing capacity, which produces settlement, cracking, and surface heave.

• Minimum slope for most flatwork: 1%, or 1/8 inch per foot — the absolute floor for functional drainage
• Recommended slope for driveways: 1.5%–2% cross-slope directed away from structures
• Maximum slope for pedestrian surfaces: 5% longitudinal, 2% cross-slope, per ADA accessibility requirements
• Garage apron standard: 1.5% minimum sloping away from the garage door

Slope must be designed into the formwork before the pour. Once concrete sets, the only remedies are expensive overlay systems or full slab replacement.

How Bay Area Rainfall Patterns Shape Design

The Bay Area receives most of its annual precipitation between November and March. Storms can deliver one to three inches of rain within 24 hours, generating substantial surface runoff across impervious concrete areas. This concentrated seasonal pattern means drainage systems must handle peak loads — not average conditions.

The region's soil conditions amplify the problem. Much of the Bay Area sits on expansive clay that absorbs water slowly. Runoff that cannot infiltrate quickly must be channeled completely off the site, which demands properly designed surface grades, swales, and discharge connections.

Where Drainage Problems Appear Most Often on Bay Area Sites

Driveways and Patios

Driveways and patios represent the majority of residential flatwork projects, and both surfaces are prone to drainage failures when slope is insufficient. Common problem scenarios include:

• Driveways that slope toward the garage rather than away from it, channeling water directly into the structure
• Patios poured level with or higher than adjacent foundation walls, pushing water toward the building perimeter
• Surfaces with negative cross-slope that funnel runoff toward landscaping beds or neighboring property
• Aprons poured without a channel drain, allowing water to pool at the garage threshold

Homeowners comparing surface options should review the analysis of concrete versus pavers on expansive Bay Area soil — drainage performance differs significantly between the two systems, and that difference affects long-term maintenance demands. The relationship between poor drainage and concrete driveway cracking from Bay Area clay soil is well documented: water that migrates beneath a slab causes soil movement that transmits stress upward into the concrete.

ADU Slabs and Side Yards

Accessory dwelling unit (ADU) projects introduce additional drainage complexity. ADU slabs placed in rear or side yards often share drainage paths with the primary residence. Water from both structures must be routed to a single compliant discharge point — typically the street or an approved storm drain connection.

Side yards present a particular challenge. Narrow spaces between structures limit swale width and reduce the ability to achieve adequate slope within the available horizontal distance. Engineers frequently specify linear channel drains in these locations to compensate for constrained site geometry.

Designing Slope and Grade: A Step-by-Step Approach

Setting the Correct Cross-Slope

Designing slope into flatwork follows a defined sequence that should be completed before formwork begins:

1. Establish the high point. This is typically the edge closest to the structure. All drainage must flow away from foundation walls, not toward them.
2. Identify the low point and discharge location. Water must have a code-compliant destination — the street, a bioretention area, or a subsurface drain tied to an approved system.
3. Calculate the required grade change. For a 12-foot-wide driveway at 1.5% slope, the low edge sits 2.16 inches below the high edge. This difference is set into the forms.
4. Set forms to match calculated elevations. Use a builder's level or laser level to verify all form boards before concrete placement begins.
5. Verify slope during the pour. A 4-foot level placed perpendicular to the drainage direction should show the correct bubble offset for the target grade percentage.
6. Document final grades. Some Bay Area municipalities require grade verification as part of permit closeout, particularly for ADA-accessible surfaces.

Pro insight: Never rely on visual estimation to set slope — a surface that looks level to the eye may be draining in the wrong direction entirely. Always verify grade with instrument measurement before and after screeding.

Using a Transit or Laser Level

Rotating laser levels have become the standard tool for flatwork grade verification. A laser set to a known elevation allows crews to confirm form heights at multiple points across the slab area. Key practices include:

• Set the laser reference point at a benchmark elevation tied to the site's finished grade plan
• Check form height at a minimum of every four feet across the slab width
• Re-verify after any form adjustment — movement is common on freshly compacted subbase
• Record all readings before the pour begins to document compliance

Code Standards Every Bay Area Contractor Must Follow

California Building Code Minimums

The California Building Code (CBC), Title 24, sets baseline requirements for flatwork drainage. The table below summarizes the most relevant provisions for residential and light commercial work:

These are minimums. Experienced Bay Area contractors routinely target 1.5%–2% across all flatwork to provide a margin against subbase settlement, which tends to reduce installed slope over a slab's lifespan.

Municipal Stormwater Requirements

Each Bay Area city layers additional requirements on top of state code, and the variation between jurisdictions is significant. San Jose enforces impervious surface runoff management rules tied to its municipal separate storm sewer system (MS4) permit. Property owners pursuing concrete driveway permits in San Jose must demonstrate that new impervious area does not increase peak runoff above pre-project levels.

Oakland, Berkeley, and San Francisco each maintain their own grading ordinances. Permit reviewers in these jurisdictions will reject plans that meet CBC minimums but fail local stormwater management standards. Contractors should request city-specific grading and drainage requirements before finalizing design documents — not after submission.

Swales, Channels, and Inlets: Moving Water Off the Site

Vegetated Swales vs. Concrete Channels

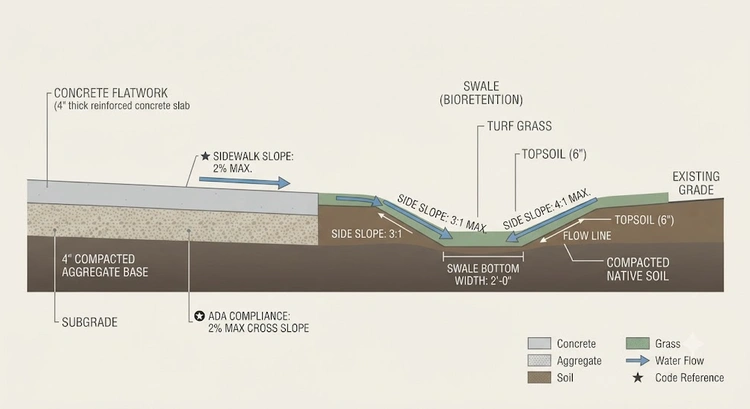

A swale is a shallow, sloped channel designed to carry surface water from one location to an approved discharge point. Two primary types are used on Bay Area flatwork projects:

• Vegetated swales (bioswales): Lined with grass or native plants; slow runoff velocity, filter pollutants, and allow partial soil infiltration. Most Bay Area stormwater permits credit vegetated swales toward impervious surface mitigation requirements. Preferred for residential projects wherever space allows.
• Concrete channels: Rigid, high-capacity conduits used when flow volumes are high or site constraints prevent vegetated solutions. Common along property lines between flatwork and fencing. Require permits in most jurisdictions and must connect to approved discharge points.

Catch Basins and Area Drains

When surface slope alone cannot move water off a site efficiently, point drainage infrastructure is required. Common components include:

• Area drains: Grated inlets set flush with the concrete surface; collect water at low points and direct it into underground pipe systems
• Catch basins: Larger inlets with a sump below the outlet pipe; trap sediment and debris before water enters the municipal storm system

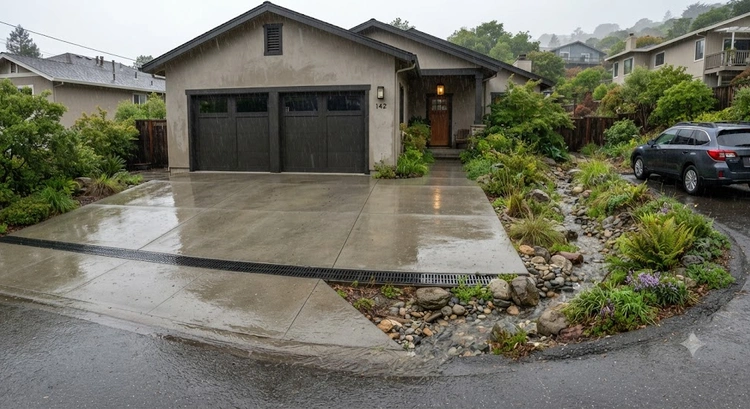

• Linear channel drains (trench drains): Narrow slot inlets installed perpendicular to drainage flow; highly effective for garage aprons, driveway thresholds, and commercial flatwork where wide catchment is needed in a limited footprint

All connections to public storm systems in the Bay Area require permits. Discharging runoff onto a neighboring property without a recorded easement is prohibited under California Civil Code and exposes property owners to civil liability.

What Drainage Failures on Bay Area Sites Actually Look Like

Foundation Damage from Misdirected Runoff

The most costly flatwork drainage failure pattern involves concrete that inadvertently directs water toward the home's foundation. This occurs when:

• Patios are poured level with the foundation sill plate with no slope away from the wall
• Driveways crown in the center but terminate at the garage foundation without a channel drain at the apron
• Subbase settlement over time reverses the drainage direction on older slabs that were initially installed correctly

The consequences are consistent with documented patterns of expansive clay soil damage to Bay Area foundations. Chronic moisture exposure at the foundation perimeter triggers seasonal heave and shrinkage cycles that crack stem walls and shift footings. Foundation repair following a drainage failure costs far more than the drainage infrastructure would have.

The relationship between drainage and cracking extends to joint design. Reviewing control joint placement rules for Bay Area concrete flatwork reveals that joints located at low points can allow water infiltration directly into the subbase if they are not sealed properly — connecting two elements of flatwork planning that are often treated as independent decisions.

Pavement Heave from Saturated Clay

Clay soil expands when saturated and contracts when dry. Concrete slabs placed over poorly drained clay experience differential movement — sections over wetter soil rise while drier sections remain stable. The result is an uneven, cracked surface that creates trip hazards and accelerates structural deterioration.

Homeowners reviewing concrete driveway costs in the Bay Area should account for drainage infrastructure as a line item, not an optional upgrade. Proper drainage adds cost upfront but substantially reduces the probability of full slab replacement within the first ten years of service life.

Persistent Myths About Concrete Drainage, Corrected

Myth: Flat Concrete Drains Adequately

Reality: Flat concrete retains water. A 1/16-inch dip across a ten-foot surface holds standing water after every rain event. Water sitting on concrete accelerates surface scaling, promotes algae and moss growth, and infiltrates micro-cracks that widen over successive freeze-thaw or wet-dry cycles. The 1% minimum slope exists because field testing has shown that anything less allows standing water under normal precipitation conditions.

Myth: More Concrete Means Better Water Control

Expanding impervious coverage does not solve drainage problems — it amplifies existing ones. More concrete produces more runoff volume, which an undersized drainage system cannot handle. Bay Area municipalities have become more aggressive about impervious surface limits precisely because large concrete areas overwhelm municipal storm systems during peak rainfall events. The correct solution is not less concrete, but properly engineered drainage designed to manage the runoff that impervious surfaces generate.

Frequently Asked Questions

Key Takeaways

• Concrete flatwork drainage in the Bay Area requires a minimum 1% slope built into the formwork before the pour — post-cure corrections are costly and often ineffective.
• Bay Area clay soil and concentrated winter rainfall make engineered drainage infrastructure — swales, trench drains, and catch basins — essential on the majority of regional flatwork projects.
• Bay Area municipalities layer stormwater management requirements on top of California Building Code minimums, and permit applications must include a compliant grading and drainage plan specific to each city's rules.
• Flatwork that directs water toward a foundation accelerates clay soil movement, stem wall cracking, and footing displacement — proper drainage is as much a foundation protection measure as a surface performance requirement.
