More than 60 percent of Bay Area soils are classified as expansive clay — a geological reality that explains why does concrete driveway crack Bay Area properties at rates far exceeding the national average. Clay minerals swell when saturated during wet winters and contract sharply during dry summers. That relentless volumetric cycling generates uplift and lateral forces that standard concrete slabs are not engineered to absorb. Homeowners who invest in quality concrete flatwork and driveway installation still need to understand the soil beneath them to protect that investment long term.

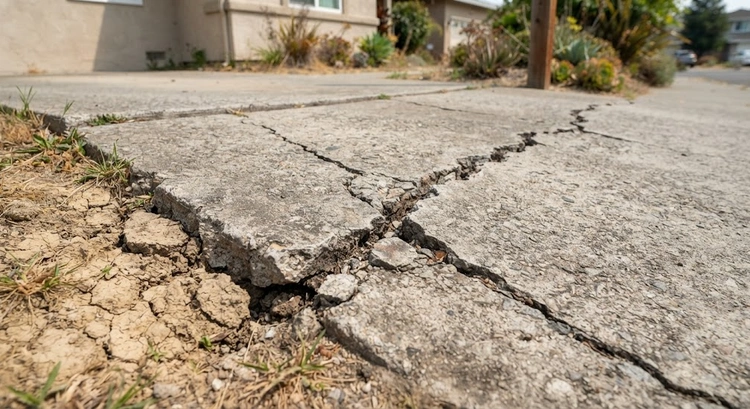

Bay Area clay soil expansion causing concrete driveway to crack with visible surface fractures
Figure 1 — Expansive clay soil beneath a Bay Area driveway producing differential settlement and progressive surface cracking across panel joints.

The fault rarely lies with the concrete itself. A properly batched, fully cured four-inch slab will still crack when the subgrade shifts by even a quarter of an inch. Bay Area homeowners routinely replace driveways at significant cost, only to watch new cracks appear within two to three years — because the soil conditions driving the damage were never corrected. Expansive soil affects foundations and flatwork alike, and any remediation strategy must account for both surfaces simultaneously.

This article examines the geological forces at work, how crack severity escalates from cosmetic to structural, and which interventions produce lasting results on Bay Area clay. Property owners who understand these dynamics stop the cycle of repeated, ineffective repairs.

The Geology Behind Bay Area Expansive Clay Soil

What Makes Bay Area Clay Different

Bay Area soils are dominated by montmorillonite-rich Vertisols — clay minerals with an exceptionally high capacity for moisture absorption. According to the expansive soil classification used by geotechnical engineers, montmorillonite can absorb up to ten times its dry volume in water. These soils are widespread across the East Bay hills, Santa Clara Valley, and portions of the Peninsula — precisely where residential density is highest.

Key characteristics of Bay Area clay soil:

  • Plasticity index above 35 — far exceeding the threshold for high shrink-swell potential
  • Active zone depth typically 5 to 8 feet below grade, meaning the soil influencing the slab extends well beneath the aggregate base
  • Lateral swelling pressure that can exceed 4,000 pounds per square foot under confined conditions
  • Visible color shift from dark gray-brown when wet to pale tan with deep fissures when desiccated

How Seasonal Cycles Amplify the Damage

The Mediterranean climate of the Bay Area creates near-perfect conditions for expansive clay damage. Wet winters saturate the soil; dry summers desiccate it. This annual shrink-swell cycle — repeated without interruption — works like a slow hydraulic jack beneath the driveway slab. Over five to ten years, cumulative differential movement can displace sections of concrete by one to two inches vertically. Poor surface drainage accelerates the process by concentrating water at slab edges rather than directing it away from the structure, creating zones of localized saturation that expand and contract far more aggressively than the surrounding soil.

Why Does Concrete Driveway Crack in the Bay Area: Patterns and Causes

Understanding crack morphology helps identify whether the cause is soil movement, poor installation, or normal shrinkage. Not every crack signals a serious problem — but some patterns demand immediate professional evaluation.

Early-Stage Cracking Patterns

Cracks appearing within the first one to three years of installation are frequently misattributed to curing errors. In Bay Area conditions, early cracking often reflects the first full seasonal cycle acting on an unprepared subgrade. Common early patterns include:

  • Hairline shrinkage cracks — typically cosmetic, running parallel to control joints and remaining stable across seasons
  • Map cracking (crazing) — a shallow surface network indicating rapid moisture loss during curing, confined to the top quarter inch
  • Single linear cracks crossing a slab panel — indicate point loading from clay uplift concentrated beneath one zone
  • Corner cracks at roughly 45 degrees — a signature of differential settlement rather than curing defects

Pro Insight: A diagonal crack running from a slab corner at 45 degrees is a reliable indicator of differential soil settlement beneath that corner — not a curing defect. Addressing drainage and subgrade conditions before patching prevents immediate recurrence.

Advanced Deterioration

Without intervention, early cracks widen and multiply. Water infiltrates through open cracks, accelerating clay saturation and intensifying the next expansion cycle. The table below summarizes damage progression stages and the appropriate response at each level.

Damage Stage Crack Width Vertical Displacement Recommended Action
Stage 1 — Early Less than 1/8 inch None Seal cracks; regrade drainage
Stage 2 — Moderate 1/8 to 1/4 inch Less than 1/4 inch Polyurethane injection + drainage correction
Stage 3 — Severe 1/4 to 1/2 inch 1/4 to 3/4 inch Panel replacement with subgrade stabilization
Stage 4 — Critical Greater than 1/2 inch Greater than 3/4 inch Full replacement with engineered base course

The decision between driveway repair and full replacement hinges largely on which stage the damage has reached and whether the root cause has been corrected.

Practical Strategies to Minimize Driveway Cracking on Clay Soil

The most effective interventions occur before concrete is ever poured. Retrofitting soil stabilization beneath an existing slab is costly and disruptive. Proactive subgrade design dramatically extends service life and reduces lifetime maintenance costs.

Pre-Pour Soil Preparation

These steps should be non-negotiable on any Bay Area clay site:

  1. Over-excavate and replace — remove the top 12 to 18 inches of native clay and replace with compacted Class 2 aggregate base. This eliminates the most volumetrically active zone.
  2. Lime stabilization — mixing quicklime or hydrated lime into existing clay at 5 to 8 percent by dry weight permanently reduces plasticity index and shrink-swell potential. The chemical reaction is irreversible, making this a durable long-term solution.
  3. Geotextile separation layer — a woven geotextile placed between the aggregate base and native subgrade prevents clay migration upward into the base over time, preserving drainage capacity.
  4. Moisture conditioning at compaction — compact the subgrade at optimum moisture content (within ±2%). Clay compacted below optimum moisture will swell aggressively once wetted by the first rain season.

Proper curing procedures matter, but they cannot compensate for an inadequate subgrade. Subgrade preparation is where driveway longevity is won or lost on Bay Area soils.

Reinforcement and Jointing Best Practices

  • Specify #4 rebar at 18-inch centers in both directions — not wire mesh — on clay subgrades. Rebar maintains structural integrity across cracks if seasonal movement does occur.
  • Increase slab thickness to 5 or 6 inches on sites with confirmed high-plasticity clay.
  • Space control joints no more than 10 feet apart — shorter than the standard 12-foot guideline — to create predictable, manageable crack locations.
  • Cut joints to one-quarter of slab depth within 24 hours of pour.
  • Apply a penetrating silane-siloxane sealer every three to five years to reduce moisture infiltration through the slab surface.

Warning: Fiber-reinforced concrete controls shrinkage cracking effectively but does not replace rebar when soil movement is a known risk factor. On expansive clay, both fiber reinforcement and rebar are warranted — not one as a substitute for the other.

When to Repair a Cracked Driveway — and When to Replace It

The repair-versus-replace decision is frequently made too early — replacing salvageable concrete — or too late, after repeated patching has consumed funds better spent on full remediation. Clear criteria prevent both errors.

Repair Is Appropriate When

  • Cracks measure less than 1/4 inch wide with no measurable vertical displacement between panels
  • The slab surface remains level within a single panel when checked with a straightedge
  • Fewer than 30 percent of the total driveway area is affected
  • The underlying cause has been identified and corrected — drainage regraded, downspouts extended, irrigation lines relocated
  • The driveway is fewer than eight years old with no prior repair history

Repair methods appropriate for Bay Area clay conditions include polyurethane foam injection, epoxy crack injection for structural cracks, and partial panel sawcut-and-replace. Signs that driveway cracking may correlate with broader foundation movement should always be ruled out before committing to surface repair alone — a cracking driveway can be an early indicator of deeper structural issues.

Replacement Is the Right Call When

  • Vertical displacement exceeds 3/4 inch between adjacent panels
  • Multiple repair attempts have failed within a five-year window
  • Active tree roots have disrupted the subgrade and cannot be removed without compromising adjacent structures
  • More than 40 percent of the slab area shows Stage 3 or Stage 4 damage
  • The original installation lacked aggregate base preparation on native clay

Replacement paired with engineered base preparation consistently outperforms repeated patching on expansive clay over a ten-year cost horizon. The per-square-foot differential favors replacement in most Stage 3 to Stage 4 scenarios when lifetime maintenance costs are included.

Tip: Before any repair or replacement, have a contractor probe the subgrade moisture with a pocket penetrometer. Repairs applied over saturated clay will fail prematurely regardless of material quality or application technique.

Diagnosing the Real Cause of Your Driveway Cracks

Misdiagnosis leads to misdirected repairs and wasted investment. Several mechanisms can fracture a concrete driveway, and not all point to clay movement. Accurate diagnosis is the prerequisite for effective remediation — and one reason why does concrete driveway crack Bay Area assessments should always include a subgrade probe, not just a visual inspection.

Visual Clues That Point to Soil Movement

Clay-driven cracking produces distinctive patterns that differentiate it from other failure modes:

  • Heaving at slab edges — the perimeter rises higher than the center, reversing the designed drainage slope toward the structure
  • Cracks that widen measurably in late summer (peak clay shrinkage) and partially close in February (peak saturation)
  • Diagonal cracks emanating from panel corners rather than running parallel to edges
  • Cracking concentrated adjacent to downspouts, planters, or irrigation lines — localized moisture sources driving localized clay expansion

Homeowners should photograph cracks in late October and again in late April to document seasonal change. A crack that measurably widens or narrows with the seasons confirms soil movement as the primary driver. Foundation repair specialists use this same seasonal documentation technique when evaluating whether driveway cracking correlates with structural foundation movement beneath the house.

Ruling Out Other Causes

Before attributing all cracking to clay, other causes must be systematically eliminated:

  • Overloading — residential driveways designed for passenger vehicles are not rated for delivery trucks, concrete mixers, or roll-off dumpsters. A single overload event can cause immediate fracture that mimics soil-induced cracking.
  • Alkali-silica reaction (ASR) — a chemical reaction within the concrete matrix itself that produces map cracking and surface popouts; completely unrelated to subgrade conditions
  • Freeze-thaw deterioration — less common in Bay Area lowlands but relevant at elevations above 1,500 feet during cold winters
  • Inadequate curing — produces early surface crazing typically confined to the top quarter inch, not full-depth structural fractures

ADU and home addition projects that involve new flatwork adjacent to existing driveways present a specific risk: excavation for new footings disturbs adjacent soil moisture and consolidation, which can trigger clay movement in previously stable areas of the driveway.

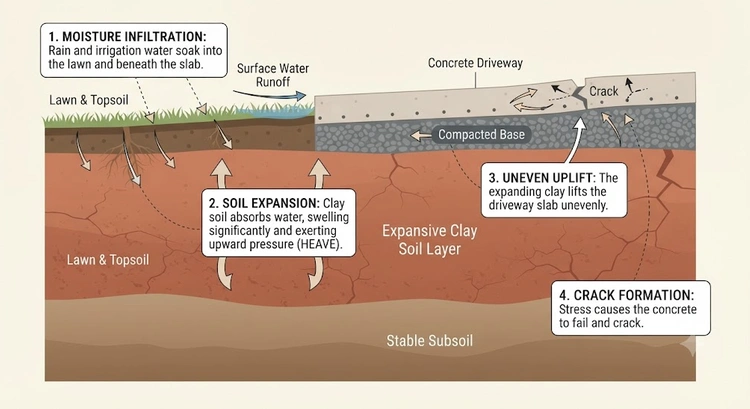

Infographic showing how Bay Area clay soil expansion and contraction cycles cause concrete driveway cracking
Figure 2 — The seasonal shrink-swell cycle of Bay Area expansive clay and its progressive effect on concrete driveway slab integrity.

Frequently Asked Questions

Why does concrete driveway crack in the Bay Area so much faster than in other regions?

The Bay Area's high concentration of montmorillonite clay soil, combined with dramatic seasonal moisture swings between wet winters and dry summers, creates a shrink-swell cycle that exerts enormous and repeated stress on concrete slabs. Most other U.S. regions do not experience this combination of expansive soil type and Mediterranean climate, which is why Bay Area driveway cracking rates are significantly higher than the national average.

Can a new concrete driveway be designed to resist cracking on Bay Area clay soil?

Cracking can be substantially minimized — though not entirely eliminated — through a combination of engineered subgrade preparation, lime stabilization of native clay, increased slab thickness, rebar reinforcement at 18-inch centers, closely spaced control joints, and regular silane-siloxane sealing. No single measure is sufficient on its own; the full package of interventions is required to achieve meaningful longevity on expansive clay.

How can a homeowner tell whether driveway cracks are caused by soil movement or poor installation?

The most reliable indicator is seasonal behavior: cracks caused by clay movement will widen during dry months and partially close during wet months. Cracks from poor installation — inadequate curing, overloading, or mix design errors — remain stable year-round. Photographing cracks at the end of summer and the end of winter provides documentary evidence that definitively distinguishes the two causes without laboratory testing.

Key Takeaways

  • More than 60 percent of Bay Area soils are classified as expansive clay, making subgrade preparation — not just concrete quality — the decisive factor in driveway longevity.
  • Clay-driven cracking follows predictable seasonal patterns that widen in summer and partially close in winter, allowing homeowners to confirm soil movement as the root cause through simple photographic documentation.
  • Effective prevention requires over-excavating native clay, replacing it with compacted aggregate base, and reinforcing the slab with rebar rather than wire mesh — interventions that must happen before the pour, not after cracking appears.
  • Replacement paired with engineered base preparation outperforms repeated patching in most Stage 3 to Stage 4 damage scenarios when total costs over a ten-year horizon are compared.
