Expansive clay soil is the single biggest foundation risk for new construction in the Bay Area. Expansive clay soil foundation Bay Area conditions affect an estimated 60–70% of the region's buildable land, according to USGS regional soil surveys. Any contractor designing a new home foundation in Alameda, Santa Clara, or Contra Costa County must account for clay movement before the first footing is poured.

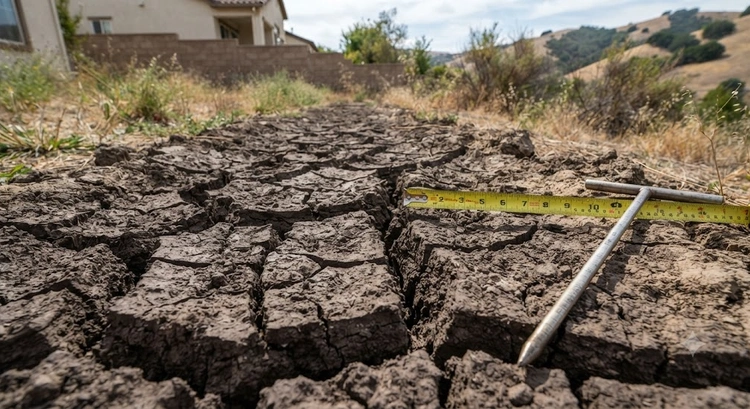

Expansive clay soil foundation Bay Area new home construction site showing cracked dry clay and exposed footing excavation
Figure 1 — Expansive clay soils across the Bay Area flatlands can shift several inches vertically through seasonal wet-dry cycles, placing severe stress on new home foundations.

The Bay Area sits on some of the most geologically active land in North America. Clay-heavy soils derived from marine sediments dominate the flatlands and hillside margins from San Jose to Oakland. These soils swell when wet and shrink when dry — a cycle that generates uplift pressures exceeding 10,000 psf on unprotected concrete elements. Our experience confirms: undersized or improperly designed foundations on these sites fail within five to fifteen years.

Understanding how expansive clay behaves — and how engineering compensates for it — separates a durable structure from a costly repair project. The soil report is the starting point. A thorough soil investigation tells the engineer everything needed to size footings, select reinforcement, and specify moisture controls. Without that data, any foundation design is a guess.

What Expansive Clay Soil Does to New Bay Area Foundations

The Expansion-Contraction Cycle

Montmorillonite clay — the dominant mineral in Bay Area expansive soils — absorbs water between its molecular layers. Volume change from dry to saturated states commonly reaches 30–50% in high-plasticity soils. The Bay Area's wet winters and dry summers drive a predictable annual cycle: soils swell from November through April, then shrink from June through October.

The vertical movement this generates at the soil surface is called heave. Our team consistently measures seasonal heave values of 1–4 inches on untreated sites across the Santa Clara Valley and East Bay flatlands. Four inches of differential heave under a slab causes significant structural damage. The cycle repeats every year unless the site is engineered to interrupt it.

Pro insight: Seasonal heave on Bay Area clay sites rarely stabilizes on its own — our team treats moisture control as a permanent infrastructure element, not a construction-phase task that ends at final inspection.

Differential Movement and Structural Damage

Uniform heave across an entire footprint is manageable. Differential heave — where one corner rises three inches while another stays level — breaks foundations. Common damage patterns include:

  • Diagonal shear cracks through concrete slabs
  • Step cracks in masonry stem walls
  • Out-of-plumb door and window frames
  • Grade beam separation at re-entrant corners
  • Slab upheaval at interior partition walls

Most soil-induced cracking in the Bay Area follows the wet-dry boundary. The perimeter dries faster than the center, generating curl stress that propagates inward. Our structural assessments consistently identify perimeter footings installed without adequate depth below the active zone as the most common failure point on residential clay sites.

Reading the Soil Report Before Construction Starts

Plasticity Index and Expansion Potential

The Plasticity Index (PI) is the most direct quantitative indicator of expansion risk. Per ASTM D4829, soils with PI above 35 are classified as high-expansion. Much of the Bay Area flatlands — particularly areas underlain by Bay Mud and alluvial clay deposits — test at PI 40–70. Our geotechnical partners regularly report sites in Fremont, Union City, and Milpitas at the upper end of that range.

Expansion potential categories used in California practice:

  • Low: PI below 15, expansion index below 20
  • Medium: PI 15–35, expansion index 20–50
  • High: PI 35–55, expansion index 50–90
  • Very High: PI above 55, expansion index above 90

CBC Section 1803 requires expansion potential testing on all new residential sites in California. Most Bay Area jurisdictions enforce this without exception. Expansive soils affect an estimated 25% of U.S. land area, but the concentration in coastal California makes the issue disproportionately impactful for Bay Area builders.

Depth of the Active Zone

The active zone is the depth at which seasonal moisture fluctuation affects soil volume. Below it, clay moisture content stays relatively stable year-round. In the Bay Area, the active zone typically extends 5–10 feet below grade. Our team specifies footings that bear below the active zone on high-PI sites — usually 18–24 inches deeper than standard residential practice.

The soil report also identifies moisture content at multiple depths and establishes expected seasonal variation. Bay Area soil conditions vary significantly by microclimate and elevation, which is why a site-specific geotechnical investigation cannot be replaced by regional generalizations or adjacent-lot data.

Warning: Specifying footings at standard residential depth — 12 to 18 inches — on a high-PI Bay Area site is a design error our team encounters repeatedly in permit-set reviews.

Foundation Design Moves That Counter Clay Movement

Post-Tensioned Slabs

Post-tensioned (PT) slab is the primary system for expansive clay sites in California, and our team defaults to it on any site with medium or higher expansion index. PT slabs use high-strength tendons stressed after concrete cures. This places the slab in biaxial compression, giving it the rigidity to resist differential heave without cracking.

PTI DC10.5-12 (Slab-on-Ground Foundations) governs the design. Key parameters our engineers specify on Bay Area clay sites include:

  • Minimum tendon spacing of 8 feet in each direction
  • Edge moisture variation distance (em) calculated per site PI
  • Both center lift and edge lift conditions analyzed independently
  • Perimeter grade beam depth confirmed below active zone

Deepened Footings and Grade Beams

Where PT slab is not appropriate — crawl space or raised foundation systems — our team specifies continuous grade beams deepened to 30–42 inches below grade on high-PI sites. Deepening below the active zone removes the footing from the shrink-swell cycle. Interior piers bearing on stable subsoil provide intermediate support without engaging active-zone clay at mid-span.

Moisture barriers are a parallel requirement on every clay site. A 6-mil or 10-mil polyethylene barrier under the slab retards evaporation from the subgrade and reduces differential moisture variation. Our specifications also include perimeter drainage — typically a 4-inch perforated drain in open-graded gravel at footing depth, daylighted away from the structure at minimum 2% grade.

Common Misconceptions About Building on Bay Area Clay

Our team reviews permit sets and failed foundation designs regularly. The same misconceptions appear on a predictable rotation. Addressing them directly prevents expensive corrections after the concrete is poured.

Myth 1: Lime treatment eliminates expansion risk.
Lime stabilization reduces PI and swell potential — it does not eliminate either. Treated subgrades still require engineered foundation systems. Lime is a soil prep tool, not a foundation design substitute.

Myth 2: Clay is manageable without a geotechnical report.
This assumption costs tens of thousands of dollars in repairs. Site conditions vary block to block. A neighbor's successful project on different soil tells engineers nothing about an adjacent lot.

Myth 3: Conventional footings work if poured deeper.
Depth helps, but unreinforced or lightly reinforced footings still fail on high-PI clay. The reinforcement schedule and concrete section must match calculated moment demands from differential heave. Depth alone does not solve the problem.

Myth 4: Established vegetation prevents soil movement.
Trees and shrubs extract soil moisture aggressively. Large trees adjacent to foundations create severe differential moisture conditions — the textbook cause of heave on one side paired with subsidence on the other. Our team recommends a minimum 15-foot setback from large tree canopies to any footing.

Myth 5: Slab cracking on clay is inevitable — engineering cannot prevent it.
Properly designed PT slabs on Bay Area clay sites perform well for decades without structural cracking. Cracking is a design and construction failure, not a geological inevitability.

Expansive Clay Soil Foundation Bay Area: System-by-System Comparison

Our team evaluates foundation systems on expansive clay sites against four criteria: structural performance, cost premium over a standard design, constructability on typical Bay Area urban lots, and long-term maintenance burden.

Foundation System Performance on High-PI Clay Cost Premium vs. Standard Lot Constraints Maintenance Burden
Post-Tensioned Slab Excellent — biaxial compression resists differential heave 10–18% Low — works on standard urban lots Low — sealed tendon system
Conventionally Reinforced Slab (deepened) Good on medium-PI; marginal on high-PI sites 8–14% Low Medium — cracks require monitoring
Raised Foundation (deepened grade beam + piers) Good — piers bypass active zone 15–25% Medium — crawl space access required Medium — vapor barrier upkeep
Drilled Pier and Grade Beam Excellent — piers anchored in stable strata below active zone 25–45% High — drill rig access required Low
Conventional Slab (standard depth, unreinforced) Poor — not appropriate for medium or high-PI sites 0% Low High — ongoing repair cycle

Our team's default recommendation for new residential construction on Bay Area clay: post-tensioned slab where the footprint and lot access allow, drilled pier and grade beam where very-high PI soil requires maximum movement isolation between structure and active zone.

Infographic comparing expansive clay soil foundation Bay Area design strategies from post-tensioned slab to drilled pier systems
Figure 2 — Foundation system performance comparison on Bay Area expansive clay soils, from post-tensioned slab to drilled pier construction.

Red Flags During Construction and After Move-In

During Construction

Our inspection team identifies specific field conditions that indicate the engineered system is being compromised during construction. Early detection prevents expensive post-pour corrections.

  • Subgrade not pre-wetted: Dry clay at pour time creates immediate differential moisture conditions. Specifications should require pre-wetting to optimum moisture 24–48 hours before the pour.
  • Footing excavations cut short of specified depth — most common when crews rotate or the inspector is absent during the critical depth measurement window.
  • PT tendons installed without adequate cover — minimum 3/4 inch from slab bottom on clay sites; our specifications call for 1 inch.
  • Moisture barrier laps and penetrations left unsealed — defeats the vapor control the engineering assumed in calculating em values.
  • Perimeter drain not installed or not daylighted correctly — standing water at footings during the first wet season generates immediate heave.

After Move-In

Clay movement continues after occupancy. Contractors doing final walkthroughs — and anyone performing subsequent inspections — should watch for these early indicators:

  • Diagonal cracks at window and door corners within the first wet season — classic differential heave signature
  • Sticky or binding interior doors — indicates frame racking from foundation movement
  • Visible gap at slab-to-wall joint along one wall only — one side heaving or settling relative to another
  • Water infiltration at foundation perimeter during the first winter — drainage system underperforming

Pro insight: Our team recommends a foundation inspection 12–18 months after move-in on all Bay Area clay sites — catching early movement before cracks propagate through saves significant repair cost down the line.

Standard Clay Sites vs. High-Plasticity Zones: What Changes

Standard Protocol

On sites with medium expansion potential (PI 15–35, expansion index 20–50), standard California practice applies with moderate reinforcement enhancements. Our team specifies the following baseline on medium-PI Bay Area sites:

  • PT slab designed per PTI DC10.5-12
  • Perimeter grade beams at 18–24 inches below grade
  • 6-mil vapor barrier, lapped 12 inches at seams, sealed at all penetrations
  • 4-inch perforated perimeter drain in open-graded gravel
  • Pre-wetting of subgrade to optimum moisture before pour

These measures add 8–12% to foundation cost over a non-expansive-soil design. Most Bay Area projects absorb this within the normal geotechnical contingency. The engineering investment is straightforward. The consequences of skipping it are not.

High-PI Site Engineering

High-PI sites (expansion index above 90) require a qualitatively different approach. The engineering calculations change substantially — PTI DC10.5-12 center lift and edge lift analysis at very-high PI parameters produces much larger tendon forces and grade beam depths than medium-PI sites. Standard reinforcement schedules are insufficient.

Additional measures our team implements on very-high expansion sites include:

  • Drilled piers to stable bearing stratum — typically 20–35 feet on Bay Area alluvial sites
  • Grade beams spanning between piers, isolated from soil contact on sides and bottom with cardboard void form
  • Lime or cement stabilization of top 12–18 inches of subgrade before placement
  • Thickened edge beams with #6 reinforcing at 12 inches on center
  • 10-mil reinforced vapor barrier with sealed penetrations at all conduit and plumbing sleeves

The cost premium on very-high PI sites reaches 35–50% over a standard slab. Our team communicates this to owners during design development — not at permit submittal. It is a soil condition cost. The alternative is a failed foundation within five to ten years and a remediation project that costs more than the premium would have.

Frequently Asked Questions

How do most people determine if a Bay Area lot has expansive clay soil?

A geotechnical investigation with laboratory PI testing is the definitive method. Visual indicators — surface cracking patterns in dry season, dark-gray sticky soil when wet — suggest high clay content, but PI testing quantifies the actual risk. Our team requires a soil report before finalizing any foundation design on Bay Area sites where expansion potential is unknown.

What is the typical cost difference for a foundation engineered for expansive clay soil?

Our experience puts the premium at 10–25% over standard residential foundation cost for medium to high-PI sites. Very-high PI sites with drilled pier systems can reach a 45–50% premium. The exact number depends on PI classification, site access, and the selected system. Most owners find the upfront cost is far less than post-construction repair on an undersized foundation.

Does expansive clay affect ADU foundation design the same way as a primary residence?

Yes — the same soil conditions apply regardless of structure size. Our team designs ADU foundations on clay sites using the same PT slab or deepened footing protocols used for primary homes. A smaller footprint does not reduce expansion forces at the foundation perimeter. Anyone planning a detached ADU on a Bay Area lot should commission a site-specific soil investigation before finalizing the foundation type.

How does landscape irrigation affect expansive clay under a new foundation?

Lawn and garden irrigation near the foundation perimeter introduces moisture that drives differential heave — perimeter clay swells while drier interior soil remains lower. Our team consistently identifies irrigation within five feet of the foundation perimeter as a contributing factor in heave damage cases. Landscape grading should direct all surface water away from the structure at a minimum 2% slope across the first ten feet.

Can the expansive clay soil foundation Bay Area problem be corrected after a foundation is poured?

Partially. Mudjacking, polyurethane foam injection, and underpinning can stabilize or lift a settled or heaved foundation. These are remediation measures — they do not alter the soil condition. Drainage modification and moisture barrier upgrades are typically required alongside structural repair to prevent recurrence. Correct initial design is significantly less expensive than remediation on any timeline.

What permits are required for new foundation work on expansive clay sites in the Bay Area?

All new foundations require building permits. Bay Area jurisdictions — Santa Clara County, Alameda County, Contra Costa County, and their incorporated cities — require a geotechnical report for new construction on expansive soils per CBC Section 1803. Some jurisdictions with known high-PI zones have specific prescriptive requirements in local code amendments. Our team coordinates permit documentation with the project geotechnical engineer throughout design and through final inspection.

Key Takeaways

  • Expansive clay soil is the dominant foundation risk for new Bay Area construction, with seasonal heave values that regularly exceed four inches on untreated medium to high-PI sites across Alameda, Santa Clara, and Contra Costa counties.
  • A site-specific geotechnical report with Plasticity Index testing is non-negotiable — our team treats it as the first deliverable on every Bay Area foundation project, not an optional expense.
  • Post-tensioned slabs designed per PTI DC10.5-12 are the most cost-effective engineering solution for medium to high-PI sites; drilled pier and grade beam systems are the appropriate choice where very-high expansion conditions require complete isolation from the active zone.
  • Construction-phase quality control — subgrade pre-wetting, footing depth verification, vapor barrier integrity — carries equal weight to the engineering design itself on expansive clay sites, and failures in the field regularly negate what was correctly specified on paper.
