We have worked on dozens of new home foundation projects across the Bay Area, and the calls that stay with us are the ones where a builder discovered — after framing was already underway — that the foundation did not meet seismic foundation requirements Bay Area jurisdictions enforce under the current code cycle. Those discoveries cost real money and real time, and they are almost always preventable.

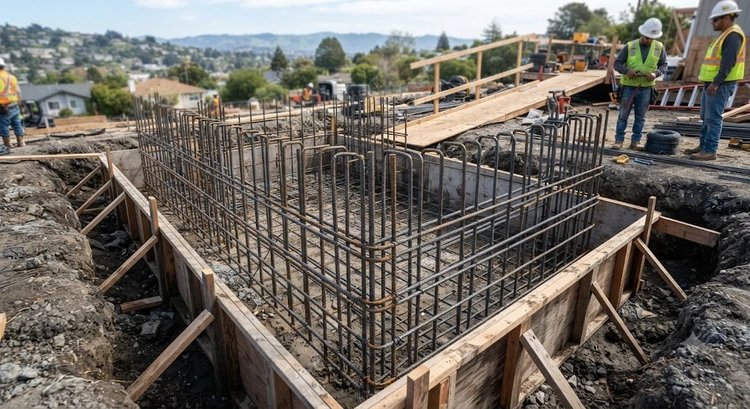

Seismic zone 4 foundation requirements Bay Area new home construction with reinforced concrete footing
Figure 1 — Reinforced concrete perimeter footing designed to meet seismic zone 4 foundation requirements in the Bay Area.

The Bay Area sits within what legacy codes called Seismic Zone 4, now mapped through the California Building Code (CBC) Table 1613.2 and ASCE 7 ground motion parameters. The CBC adopts ASCE 7 by reference, layering state amendments on top, and local jurisdictions such as San Francisco, Oakland, and San Jose add further amendments that tighten anchor bolt schedules, require expanded geotechnical reports, and restrict construction within the Alquist-Priolo 50-foot fault setback zone around active fault traces. Anyone starting a new build should understand that these layers of requirements interact in ways that a surface-level reading of one document will not reveal. Understanding the Bay Area foundation permit process for new home construction early in design prevents the kind of mid-project corrections our team fields every season.

In our experience, the gap between what builders assume the code requires and what the code actually requires is widest on sites with problematic soils — bay-fill areas in San Mateo, Redwood City, and San Jose where liquefiable strata run shallow, Hayward Fault corridor parcels in Fremont, and inland sites underlain by high-plasticity expansive clays. Each of those conditions triggers different code pathways, and each pathway changes the foundation system, the reinforcement schedule, and the special inspection requirements under CBC Chapter 17.

Chart comparing seismic design requirements by foundation system for Bay Area Zone 4 sites
Figure 2 — Comparison of seismic design parameters across common foundation systems used on Bay Area Zone 4 sites.

Field Cases: What Failures Taught Us About Seismic Code

Lessons From Loma Prieta and Northridge

The 1989 Loma Prieta earthquake concentrated its worst foundation damage in the Marina District and in bay-fill zones along the South Bay, precisely the areas where geotechnical reports now flag Site Class E and F soils requiring the most conservative ASCE 7 Section 11.4.8 analysis. Post-event forensic studies showed that houses on shallow spread footings with minimal continuous reinforcement experienced differential settlement and cripple wall collapse at rates three to four times higher than those on engineered stemwall systems. The Northridge event in 1994 added a parallel data set showing that inadequate anchor bolt embedment was the single most common factor in sill plate separation failures on otherwise code-compliant buildings from earlier code cycles.

Modern Failure Modes We Still See

Our team still encounters echoes of those older failure modes on teardown-and-rebuild projects, where a contractor assumes the existing foundation is reusable without verifying that it meets current Seismic Design Category D or E thresholds. We have pulled permits in Fremont parcels within the Hayward Fault corridor where the previous footing had no transverse ties in the stem wall at all — a condition that would fail the very first CBC Chapter 17 special inspection. Recognizing these patterns early is why we treat the pre-design soil report as non-negotiable on every Bay Area site, not as an optional add-on after the structural drawings are complete.

Seismic Foundation Requirements Bay Area: Budget and Cost Realities

Cost Comparison by Foundation System

Budget conversations about seismic compliance tend to stall when home builders treat the seismic premium as a separate line item rather than as an integrated part of the foundation system cost. The table below reflects the range our team observes across Bay Area projects, accounting for permit fees, special inspections, and material costs in this market.

Foundation System Typical Cost (per sq ft) Seismic Premium Best Suited For
Reinforced Stemwall / Raised Perimeter $18 – $28 12 – 18% Sloped lots, Site Class C/D with good bearing
Conventional Slab-on-Grade $14 – $22 10 – 15% Flat lots, Site Class C, low-PI soils
Post-Tensioned Slab $20 – $32 8 – 12% High-PI expansive clay sites, inland valleys
Drilled Pier / Grade Beam System $35 – $60 5 – 10% Liquefiable strata, bay-fill, Site Class E/F

Hidden Cost Drivers Most Budgets Miss

The seismic premium percentages in that table cover reinforcement upgrades and anchor bolt schedules, but they do not capture the cost of CBC Chapter 17 special inspections, which on a mid-size custom home typically run $4,000 to $9,000 for the foundation phase alone. Soil report costs also scale with complexity — a standard geotechnical investigation on a stable Site Class C parcel may run $3,500, while a liquefaction assessment with lab testing on a bay-fill lot in Redwood City can exceed $18,000. Most builders who contact our team midway through design are surprised to learn that these soft costs are not optional; several Bay Area jurisdictions require a stamped geotechnical report before they will issue a grading permit, regardless of lot size.

Prescriptive Minimums vs. Performance-Based Engineering

The Prescriptive Path Under CBC Section 2308

CBC Section 2308 provides a prescriptive path for conventional light-frame construction that allows builders to follow tabulated values without commissioning a full site-specific ground motion analysis — a significant cost savings on straightforward projects. Under this path, anchor bolts must be placed within 12 inches of sill plate ends and not less than seven bolt diameters from plate ends, with maximum spacing set by the shear wall schedule. Cripple wall bracing under CBC Section 2308.9 requires structural sheathing on all sides when cripple wall height exceeds 14 inches and the building sits in a high seismic design category, which describes the vast majority of Bay Area residential parcels. Our team finds that the prescriptive path is genuinely adequate for standard Site Class C lots on flat ground with no proximity to active fault traces — roughly 30 to 35 percent of the new-build sites we evaluate each year.

When Performance-Based Design Makes Sense

For sites that fall outside the prescriptive envelope — Site Class D with soft clay lenses, irregular plan shapes exceeding the aspect ratios CBC Section 2308 allows, or structures taller than the three-story limit — a licensed structural engineer must produce a site-specific design using ASCE 7 ground motion parameters derived from the CBC Table 1613.2 spectral acceleration maps. Performance-based engineering also becomes relevant when an owner wants a post-earthquake functionality objective beyond the code's collapse-prevention baseline, as is common for high-value custom builds where our clients want the structure to remain occupiable after a design-level event. That objective requires explicit nonlinear analysis and is a fundamentally different — and more expensive — scope than prescriptive compliance.

When to Exceed Minimums and When the Code Floor Is Enough

Conditions That Call for Exceeding the Minimums

Our experience across hundreds of Bay Area sites has produced a reasonably clear picture of when exceeding the code minimum is not just advisable but effectively mandatory for a durable outcome. Liquefiable bay-fill soils require drilled piers through the liquefiable strata to competent bearing, regardless of what a prescriptive table might otherwise allow, because the table simply does not apply when the bearing stratum itself is unstable. Sites within the Alquist-Priolo 50-foot setback require fault rupture hazard analysis and may require setback variances that change the buildable footprint entirely. High-PI expansive clay sites — common on the inland flanks of the East Bay hills — require post-tensioned slabs or deepened footings to manage differential movement that would crack a standard slab within a few seasonal cycles regardless of seismic performance.

When the Code Floor Is Genuinely Sufficient

On competent Site Class C parcels with no liquefaction risk, no proximity to mapped fault traces, and standard rectangular plan geometry, the prescriptive CBC path delivers a foundation that will perform well in the design earthquake. Adding reinforcement beyond what the engineer of record specifies for those conditions rarely produces a measurable performance benefit and can create unexpected problems — over-reinforcing a slab, for example, can restrict the controlled cracking that post-tensioned systems rely on for load distribution. The seismic foundation requirements Bay Area codes impose already represent a significant engineering margin above the bare minimum needed for gravity loads, and home builders on straightforward sites should not feel pressure to gold-plate a design that the structural engineer has sized correctly for the actual site conditions.

Common Field Errors That Trigger Failed Inspections

In our team's experience, most failed foundation inspections in the Bay Area trace back to one of three root causes: rebar placed outside the required cover zone, anchor bolts set before the engineer reviewed the sill plate layout, or special inspection hold points bypassed because the inspector was not notified of the pour schedule in time.

Reinforcement Placement and Lap Splice Failures

ACI 318 Class B tension lap splices are the most frequently cited deficiency our team encounters on failed first inspections of stemwall foundations. The splice length for the #5 bars common in Bay Area stemwalls at the standard concrete strength is not something most framers have memorized, and when the rebar subcontractor changes without briefing the new crew, short laps appear. Concrete cover violations are the second most common citation — rebar chairs removed or not installed in the first place, leaving bars resting on the form and providing essentially zero effective cover against corrosion. Both errors require documentation of corrective action before the pour, and in some jurisdictions a structural engineer's wet-stamp letter confirming the fix before the building department will release the hold point on the inspection record. Understanding how these field details connect to the broader permit timeline is part of what we cover when clients ask about the seismic framing requirements for new homes in the Bay Area.

Anchor Bolt and Hold-Down Errors

Anchor bolt errors divide roughly equally between spacing violations and embedment depth violations. The spacing requirement — within 12 inches of each sill plate end, then at the engineer-specified interval — is straightforward enough in theory, but contractors who are setting bolts before the structural drawings are fully coordinated with the architectural plan sometimes space from door openings instead of from plate ends, producing a compliant-looking layout that fails on measurement. Embedment depth errors typically occur when bolts are set in wet concrete without a template and drift upward before the concrete sets, reducing the 7-inch minimum embedment required for standard anchor bolts under most Bay Area engineering specifications. Our team recommends templated anchor bolt setting with the structural engineer's representative present for any pour where hold-downs are being cast in place — the cost of that oversight call is trivial relative to the cost of a rejected pour.

Raised Foundation vs. Slab-on-Grade in Seismic Zones

Raised Foundation Advantages and Limitations

Raised perimeter foundations offer genuine advantages in seismic zones: the crawlspace provides access to utilities without cutting slabs, the system tolerates differential settlement better on sites with variable soil conditions, and cripple wall retrofit is possible later if code requirements change. The limitation is that the cripple wall itself introduces a soft-story risk if it is not braced per CBC Section 2308.9 — a condition responsible for a disproportionate share of residential collapse in past Bay Area earthquakes. Our team always specs the cripple wall sheathing on every raised foundation regardless of wall height, because the cost difference is marginal and the performance difference in a major seismic event is not. The raised system also performs poorly on liquefiable sites because the perimeter footing offers no lateral confinement; on those sites, a grade beam and pier system is the correct choice regardless of access preferences.

Slab-on-Grade Advantages and Limitations

Slab-on-grade systems eliminate the cripple wall risk entirely and provide a continuous diaphragm at grade level that distributes seismic loads efficiently into the soil — a real structural advantage when the soil is competent. The limitation that matters most on many Bay Area sites is the interaction with expansive clay soils. Most people building on high-PI clay without a post-tensioned slab design will experience cosmetic cracking within five to ten years, and structural cracking within fifteen, as the clay cycles through wet-season expansion and dry-season shrinkage. Understanding how expansive clay soil affects Bay Area foundations is essential context before choosing between a conventional slab and a post-tensioned system on those sites. Post-tensioned slabs for high-PI clay sites are the standard recommendation in our practice and throughout Bay Area geotechnical practice, though they require specialized contractors and more detailed inspection protocols during the stressing phase.

Myths About Seismic Zone 4 Debunked

Myth: New Construction Is Automatically Safe

The most persistent misconception our team encounters is that any building permitted after a recent code update is inherently seismically safe, because the code must have caught everything. Code compliance is a minimum performance floor, not a guarantee of performance, and the floor varies significantly based on site classification, whether special inspections were actually conducted, and whether the geotechnical report reflected real site conditions rather than a generic regional assumption. The USGS Earthquake Hazards Program publishes ground shaking probability maps that show the wide range of hazard even within a single Bay Area county — new construction on a Site Class E lot in a high-hazard zone and new construction on a Site Class C lot in a moderate-hazard zone both receive building permits, but they represent very different risk profiles even if both technically satisfy the code minimum.

Myth: A Thicker Slab Always Means Better Seismic Performance

Home builders sometimes request thicker slabs than the engineer specified under the assumption that more concrete means more seismic resistance, but slab thickness is not the primary variable controlling seismic performance in a wood-frame house. The lateral resistance comes from the shear walls, the hold-downs, the diaphragm connections, and the foundation-to-framing continuity — the slab itself primarily carries gravity loads and provides the diaphragm at grade. Adding unrequested thickness to a slab increases dead load on the foundation, increases cost, and in post-tensioned systems can actually complicate the stressing calculations. Our team redirects those conversations toward the elements that actually matter: anchor bolt schedules, hold-down hardware, and the quality of the special inspection program under CBC Chapter 17.

Frequently Asked Questions

What is the difference between Seismic Zone 4 and Seismic Design Category D or E?

Seismic Zone 4 is the legacy UBC classification that mapped most of the Bay Area into the highest hazard tier. The current CBC and ASCE 7 framework replaced zone designations with Seismic Design Categories (SDC) A through F, derived from site-specific spectral accelerations and occupancy classification. Most Bay Area new homes fall into SDC D or E depending on soil classification, with SDC E applying to Site Class E soils — the soft bay muds and liquefiable fill areas — where ground motion amplification is most severe.

Do local amendments vary significantly between Bay Area cities?

Yes, and the variation matters in practice. San Francisco requires a city-specific soil investigation report format and has additional amendments to the CBC anchor bolt schedule for hillside construction. Oakland has its own hillside ordinance that affects grading and drainage requirements adjacent to foundations. San Jose applies amendments related to liquefaction hazard disclosure. Our team maintains current knowledge of each jurisdiction's amendment package because assuming one city's requirements apply in another is a reliable path to a rejected permit application.

How does soil classification change what the foundation must include?

Soil classification under the ASCE 7 site class definitions — ranging from Site Class A hard rock through Site Class F for soils requiring site-specific response analysis — directly controls the spectral acceleration values the structural engineer uses to size the lateral force-resisting system. A Site Class D classification rather than C can increase the design base shear by 30 to 50 percent, which translates into heavier anchor bolt schedules, closer hold-down spacing, and potentially a different foundation system altogether. This is why our team treats the geotechnical report as the document that determines the structural design scope, not the other way around.

What special inspections are required for a new home foundation in the Bay Area?

CBC Chapter 17 requires continuous special inspection of concrete placement and reinforcement placement for foundations designed under the engineered path in high seismic design categories. This means a deputy inspector must be present during rebar installation to verify cover and lap splices, and again during the concrete pour to verify mix design compliance and placement methods. Anchor bolt installation typically requires periodic special inspection, with the frequency set by the structural engineer. Post-tensioned slab stressing requires inspection of tendon placement before the pour and documentation of stressing elongation after.

Are post-tensioned slabs appropriate for high-PI clay sites in the Bay Area?

Post-tensioned slabs are the standard engineering recommendation for high-plasticity index clay sites throughout the Bay Area inland valleys because the prestress keeps the slab in compression across the full plan area, resisting the differential heave and shrinkage that would crack a conventionally reinforced slab. The design must account for the soil's modulus of subgrade reaction and the expected seasonal movement range, both of which come from laboratory testing of the site clay.

What are the consequences of a failed foundation inspection?

A failed special inspection triggers a hold on all subsequent work until the deficiency is documented and corrected to the inspector's and engineer of record's satisfaction. If concrete has already been placed over non-compliant reinforcement, the corrective options range from supplemental core testing to partial demolition and re-pour in the most serious cases. Beyond the direct repair cost, the schedule impact typically runs two to four weeks on a single-family project, and some jurisdictions require the building official to review the correction documentation before releasing the hold.

When is a soils report required before a Bay Area foundation permit will be issued?

Most Bay Area jurisdictions require a geotechnical investigation report for any new structure on a lot where the building official determines there is a potential geologic hazard — which in practice means virtually any lot within the Alquist-Priolo study zone, any lot in a mapped liquefaction hazard zone, and any lot where the proposed foundation system requires an engineered design rather than the prescriptive CBC Section 2308 path. Several cities, including San Francisco, require a soils report for all new construction regardless of hazard mapping.

Final Thoughts

The seismic foundation requirements the Bay Area enforces exist because the region's earthquake history has been specific and instructive about what fails and what holds. Our team at Pro Home Foundation brings that accumulated knowledge to every new build we support, from the initial soil report review through the final special inspection sign-off. Anyone planning a new home in the Bay Area is welcome to contact us early in the process — before the structural drawings are finalized and before design decisions get locked in that are costly to reverse.
