Seismic Framing Requirements for New Homes in the Bay Area

What happens to a new home when the ground starts shaking and the framing wasn't built to handle the force? The answer, for too many Bay Area homeowners, involves cracked sheathing, buckled walls, and repair bills that dwarf the original cost of doing it right. Understanding seismic framing requirements Bay Area building codes impose on new construction is one of the most important things a builder or homeowner can learn, and it starts long before the first board is nailed. Pro Home Foundation's home and ADU framing team treats these standards as a baseline — not an optional upgrade — on every project.

California's building codes set the bar deliberately high for earthquake performance, and most of the Bay Area falls into Seismic Design Category D (SDC D) — one of the strictest residential classifications in the country, as documented by the U.S. Geological Survey's earthquake hazards program. That designation affects wall sheathing thickness, fastener schedules, anchor bolt spacing, hold-down hardware, and the way floor and roof diaphragms (the horizontal systems that transfer seismic energy to the walls below) connect throughout the structure. Every permitted new home in the Bay Area must satisfy these thresholds before a final inspection sign-off is issued.

The complexity catches first-time builders off guard more often than most people expect. Seismic framing requires current code knowledge, close coordination with the structural engineer of record, and a methodical approach to hardware sequencing that general framing crews don't always apply by default. Getting any single piece wrong is a reliable path to a failed inspection — or a home that underperforms when it matters most.

Seismic Framing Requirements Bay Area Codes Establish

The California Building Code (CBC) governs new home construction across the state, and the Bay Area's high seismic hazard pushes most projects into SDC D — the designation that triggers the strictest wood-frame residential requirements in California. These rules don't exist in isolation; they interact with soil conditions, building height, and floor-plan geometry in ways that make every project slightly different from the last.

How the California Building Code Sets the Bar

The CBC adopts the International Building Code with California-specific amendments, and those amendments layer seismic specificity well beyond the base national standard. For new homes, the key areas governed include:

• Lateral force-resisting systems — the shear walls, moment frames, and diaphragms that absorb and redirect earthquake energy through the structure
• Prescriptive vs. engineered design paths — smaller, regular-shaped homes may follow simplified prescriptive tables; larger or irregular homes require a licensed structural engineer to produce a full lateral analysis
• Special inspection requirements — SDC D projects typically require third-party inspectors to observe and document hardware installation during framing, adding a layer of accountability beyond the city inspector's visit

Homeowners planning a new build should also review the Bay Area ADU framing permits process, since detached ADUs follow a nearly identical seismic review pathway and the same SDC D structural standards as a new primary residence.

SDC D Requirements at a Glance

Framing Missteps That Fail Seismic Inspection

Failed framing inspections in Bay Area cities come down to the same handful of errors, repeated across different crews on different projects. Most are entirely preventable with proper planning and a crew that understands exactly what the inspector is verifying on site.

Pro tip: Bay Area framing inspectors verify nailing patterns with a physical count and a nail gauge — not just a visual sweep — so incorrect nail spacing on shear walls is the single most common reason new construction fails first framing inspection.

Nailing Pattern Errors

Shear walls get almost all of their lateral strength from the nailing pattern that attaches the structural sheathing to the framing members behind it. The most common nailing failures include:

• Using sinker nails (which are thinner and shorter) instead of the specified 8d or 10d common nails called out on the structural drawings
• Nailing at the wrong spacing — placing nails at 8 inches on edge boundaries when 6 inches is required, for example, cuts shear capacity by a measurable margin
• Missing nails at panel edges and corners, exactly where shear transfer demand is at its highest
• Over-driving nails with an air gun set at too high a pressure, which crushes the panel face and reduces holding strength even when the nail count looks correct

Missing or Undersized Hardware

Hold-down anchors — the metal connectors that tie individual wall studs down to the foundation or the floor below — are frequently either omitted entirely or substituted with a smaller-capacity product without documented engineer approval. Other hardware failures that routinely trigger re-inspection include:

• Anchor bolts placed too far apart or within 12 inches of a sill plate end, where splitting forces concentrate
• Missing tension straps at wall-to-floor and wall-to-roof connections, especially at gable ends
• Collector elements (the framing members that gather diaphragm forces and deliver them to shear walls) left out or undersized at floor and roof boundaries
• Hardware installed with the wrong fasteners — using drywall screws or staples in connector holes designed for structural nails or bolts

Solving Framing Problems That Surface Mid-Build

Even well-planned projects encounter framing issues during construction, particularly when field conditions differ from what the structural plans assumed. Catching deficiencies early — before concrete is poured over anchor bolt templates or before drywall covers the frame — limits both the cost and the delay of correction.

When the Engineer Flags a Structural Deficiency

If the structural engineer of record or the special inspector identifies a deficiency during the framing phase, the standard resolution path follows a predictable sequence:

1. Stop work on the affected area immediately — additional non-compliant framing built on top of the problem compounds the correction
2. Document the existing condition with photographs and field measurements before anything is moved or modified
3. Submit a Request for Information (RFI) to the engineer, describing precisely what was built versus what the drawings specified
4. Implement the engineer's written correction — this may mean sistering studs, adding blocking, or swapping out incorrect hardware for the specified product
5. Schedule a re-inspection after all corrections are complete, prior to covering any framing with insulation or finish materials

Attempting to argue around a flagged deficiency in Bay Area jurisdictions rarely saves time. Inspectors maintain detailed visit records and refer back to them on every subsequent visit, so the cleanest path forward is always a thorough correction.

Common Field Corrections

These repairs appear most frequently on Bay Area seismic framing projects after an inspection deficiency is identified:

• Retrofit nailing — adding nails to under-nailed sheathing panels in a documented pattern before drywall goes up
• Sistering studs — bolting a new full-height stud flush against a split, over-notched, or undersized member to restore the section's capacity
• Adding blocking — installing horizontal framing members between studs to create a continuous load path at floor and roof diaphragm boundaries
• Hardware swap-outs — replacing lighter-duty connectors with the engineer-specified Simpson Strong-Tie or equivalent products using the correct fastener schedule

For builders comparing structural approaches before starting, wood framing vs. steel framing for Bay Area homes covers the performance trade-offs that affect how seismic corrections get applied differently across framing systems.

Framing Details That Deliver the Biggest Seismic Payoff

Not every seismic framing detail carries equal structural weight. Certain components do the heavy lifting when earthquake forces reach a building, and focusing attention and quality there returns the most resilience per dollar spent.

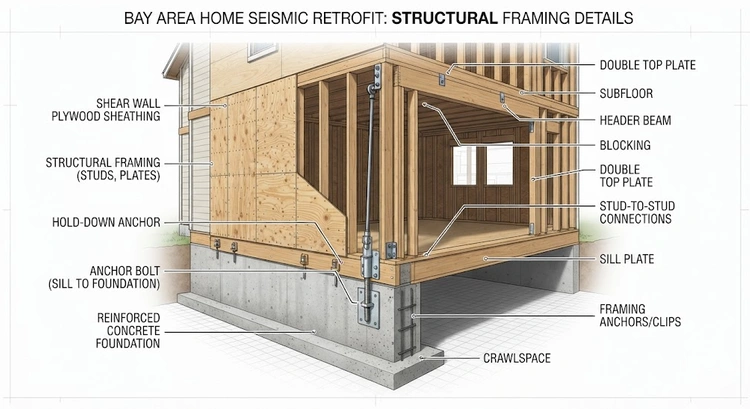

Anchor Bolts and Sill Plates

The connection between wood framing and the concrete foundation below it is the starting point for every seismic load path in the building. Weaknesses at this joint undermine everything above, regardless of how carefully the shear walls are nailed. The highest-impact improvements at this connection include:

• Upgrading from ½" to ⅝" anchor bolts — the larger diameter increases both shear and tension capacity significantly without adding much cost per bolt
• Embedding bolts at 7 inches into the concrete rather than the 6-inch code minimum, which improves pull-out resistance on high-load walls
• Reducing bolt spacing to 4 feet on center instead of the 6-foot maximum along sill lines carrying heavy lateral loads
• Installing a pressure-treated double sill plate on walls with concentrated shear demand from the structural engineer's schedule

Warning: Anchor bolts must be positioned accurately while the concrete is still wet — moving them after the pour requires drilling and epoxy anchoring, which adds labor cost and must be separately approved by the engineer of record.

Shear Wall Placement

Shear walls perform best when distributed symmetrically throughout the floor plan — on both sides of the building and balanced front-to-back. When shear walls cluster on one side, torsional irregularity (the structure twisting rather than swaying uniformly) becomes a design concern, and the engineer must compensate with additional wall length or higher-capacity hardware. The practical principles most Bay Area structural engineers follow:

• Position shear walls at or near building corners and edges, where they intercept the largest portion of the diaphragm's tributary area
• Avoid placing large openings — garage doors, glass walls, wide sliders — on more than one face of the same story without additional engineered solutions to restore lateral stiffness
• Confirm each shear wall segment is at least 2 feet wide to qualify as a full-height panel under the prescriptive path; narrower segments must be specially designed

Homeowners budgeting for a complete new build should understand where framing costs land relative to the overall project — the cost to frame a new home in the Bay Area breaks down how the framing dollar is allocated across structural and non-structural work.

When Seismic Framing Calls for a Specialist

Most new home framing in the Bay Area already demands seismic-aware work by default, but specific project types benefit considerably from a contractor whose primary experience is in SDC D residential construction — and some situations make clear that a general framing crew creates more risk than value.

Projects That Demand Dedicated Seismic Expertise

These project types consistently produce the best outcomes when the framing contractor has active Bay Area SDC D experience:

• Homes on steep hillside lots, where cantilevered framing and irregular floor-plan geometry complicate every load path calculation
• Two-story and multi-story new construction, where seismic forces accumulate floor by floor and diaphragm continuity becomes structurally critical at every level
• Open-plan ground floors with large window walls, where shear wall placement is heavily constrained by the architectural program
• Projects on liquefiable or soft soils, where foundation and framing must work together as an integrated seismic system rather than two independent elements
• ADU and addition projects where new framing must connect into an existing structure that was built to older and weaker seismic standards

When Standard Framing Crews Fall Short

A general framing crew may be fully competent for non-structural interior work or for projects in lower seismic zones. In Bay Area SDC D new construction, the specific situations where a generalist approach consistently creates problems include:

• Crews that estimate nail spacing visually rather than counting against the shear wall schedule and confirming with the special inspector before covering panels
• Contractors who don't pre-coordinate with the special inspector on timing, resulting in out-of-sequence work that gets buried before it can be verified
• Teams that treat hold-down hardware as an afterthought, installing anchors after sheathing is already nailed rather than setting hardware first as the structural sequence requires
• Contractors who can't read structural drawings independently and rely solely on verbal instructions from the general contractor rather than verifying against the engineer's details directly

Code Minimum vs. Enhanced Seismic Framing Performance

There is a meaningful gap between a home built to code minimum and one built with structural performance in mind. Both homes pass inspection. Only one consistently holds up better — and costs less to repair — after moderate-to-large earthquakes, and the framing budget difference between them is smaller than most homeowners expect.

What Code Minimum Actually Provides

Code minimum seismic framing is calibrated to achieve one primary objective: prevent collapse and protect life safety during a design-level earthquake event. That is a meaningful threshold, but the code is explicit that it does not guarantee:

• That the home will be habitable or structurally undamaged after a significant event
• That structural repairs won't be needed following a moderate earthquake well below the design level
• That finishes, windows, mechanical equipment, and interior systems won't sustain costly damage even when the structure itself remains intact

The code acknowledges this trade-off deliberately. Life safety is the floor, not the ceiling, and homeowners who want a faster path back to normal occupancy after an earthquake need to look beyond the minimums from the outset of design.

Performance-Based Framing Upgrades

These upgrades appear consistently in high-performance new home projects across the Bay Area and typically add between 3 and 8 percent to the framing budget while delivering measurable improvements in post-earthquake habitability:

• Upgrade sheathing from 15/32" OSB to 19/32" structural plywood on all exterior walls, not just the designated shear wall segments
• Tighten nail spacing to 4 inches on center at all panel edges throughout the building rather than only at high-demand shear wall locations
• Install hold-down anchors at every shear wall end post, not only at the locations the prescriptive path strictly requires
• Use continuous rod hold-down systems on multi-story structures, where cumulative overturning forces exceed what individual anchor bolts can reliably handle story by story
• Apply structural adhesive at plywood-to-framing connections on the first floor in addition to specified nailing, improving stiffness and reducing panel slip under dynamic loading

Frequently Asked Questions

Next Steps

1. Confirm the project's Seismic Design Category with the local building department before hiring a framing contractor — the SDC determines which code path applies and whether special inspections are required.
2. Request a copy of the structural engineer's shear wall schedule and framing details before work begins, and verify that the framing contractor has reviewed and understood them.
3. Coordinate a pre-framing meeting between the contractor, the structural engineer, and the special inspector to align on sequencing — especially for anchor bolt placement, hold-down installation, and sheathing nailing.
4. Review the performance upgrade options listed in this post with the structural engineer and get a cost comparison for upgrading sheathing thickness and nailing density across the full building envelope.
5. Schedule a walkthrough with the framing contractor before any panels are sheathed to verify that hold-down hardware is installed in the correct locations and with the specified fasteners — catching this before sheathing goes on eliminates the most expensive corrections.
