The soil conditions affecting room addition foundation design in the Bay Area are more variable—and more consequential—than most homeowners anticipate. Our team at Pro Home Foundation has evaluated hundreds of Bay Area sites, and local geology is almost always the decisive factor in how a foundation must be designed. The region contains expansive clays in the East Bay hills, soft bay muds along the shoreline, loose alluvial deposits on valley floors, and heterogeneous fill across older neighborhoods. Each condition demands a distinct engineering response. Our room addition foundation services begin with precisely this kind of site-specific geological analysis, because no two Bay Area lots present identical conditions.
The Hayward and San Andreas fault systems add seismic complexity to an already challenging soil environment. Room additions must account for both the static bearing capacity of the soil and its dynamic response during earthquakes. This dual requirement shapes every structural decision our team makes across Santa Clara, Alameda, Contra Costa, and San Mateo counties. The margin between a sound foundation and a failing one is often a matter of a few engineering decisions made—or omitted—at the design stage.
The California Geological Survey publishes seismic hazard zone maps, liquefaction potential assessments, and landslide inventory maps covering the entire Bay Area. These regional resources provide a useful orientation for any project. Site-specific geotechnical investigation, however, remains indispensable for any permitted room addition, and our team treats it as a required first step regardless of what regional maps indicate.
Contents
- The Geology Behind Bay Area Soil Variability
- How Soil Conditions Play Out on Actual Addition Projects
- Geotechnical Investigation: The Essential First Step
- What Soil Conditions Mean for Room Addition Foundation Costs
- Foundation Design Strategies for Challenging Bay Area Soils
- Building for the Long Term: Post-Construction Foundation Care
- Frequently Asked Questions
- Next Steps
The Geology Behind Bay Area Soil Variability
The Bay Area's geological diversity is exceptional even by California standards. Three primary soil categories define most residential sites: expansive clays, bay muds and alluvial fills, and competent rock or dense native soils. Each category presents a different set of challenges for room addition foundations, and the boundaries between these categories can shift within a single residential lot.
Expansive Clay Soils

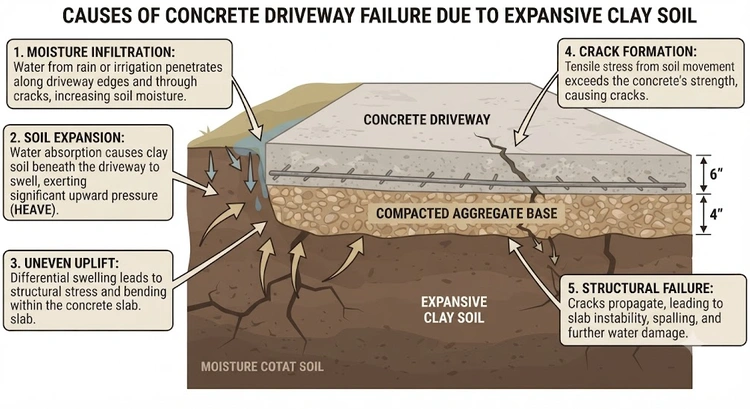

Expansive clays are the most widespread problem soil in the Bay Area. They shrink during dry months and swell during wet seasons. This volume change exerts tremendous pressure on foundation elements. Our team regularly encounters Diablo clay and Franciscan Formation soils in Fremont, Oakland, and the East Bay hills. These clays can generate uplift pressures exceeding 3,000 pounds per square foot under certain moisture conditions. Standard shallow footings placed in expansive clay without appropriate mitigation will crack and shift within a few years. The mechanics are well illustrated by what this same soil does to concrete flatwork, as explored in the post on how Bay Area clay soil causes concrete driveways to crack—the same forces act on foundation elements with similar consequences.
Bay Mud and Alluvial Fill
Bay mud is an organic, highly compressible material deposited along the margins of San Francisco Bay. Sites in Hayward, San Jose, Redwood City, and Foster City commonly overlie bay mud layers several feet thick. This material consolidates slowly under sustained load, producing long-term settlement that is difficult to reverse. Alluvial fill—river-deposited sediment in valley floors—varies widely in density and composition. Loose, saturated alluvial soils are susceptible to liquefaction under seismic loading. Our team has encountered liquefiable material as shallow as four feet below grade in portions of the South Bay.
Rock and Stable Native Soils
Not all Bay Area sites present difficult conditions. Portions of the Peninsula, the Santa Cruz Mountains, and higher elevations in the East Bay hills overlie competent bedrock or dense residual soils. These materials offer bearing capacities of 2,000 to 4,000 pounds per square foot. Room additions on these sites still require careful design, but the range of acceptable foundation solutions is broader and the cost premium for geotechnical mitigation is minimal.
How Soil Conditions Play Out on Actual Addition Projects
Our team draws on a substantial body of completed projects when advising on new additions. The variation in outcomes based on soil type is significant and consistently instructive for future work.
A Fremont Addition on Expansive Clay
One recent project in Fremont involved a 400-square-foot master suite addition on a lot underlain by Diablo clay. The existing house showed minor diagonal cracking at door corners—a classic indicator of seasonal soil movement. Our geotechnical partner confirmed highly expansive soils extending to a depth of eight feet. The design response included deepened perimeter footings bearing below the active moisture zone, a thickened post-tensioned slab, and a moisture-retaining landscape buffer along the foundation perimeter. The completed addition has shown no measurable movement across multiple wet seasons. This outcome required both the correct soil diagnosis and the correct structural response—neither alone was sufficient.
A San Jose Addition on Alluvial Fill
A separate San Jose project presented a different challenge. The lot sat on loose alluvial fill identified by the geotechnical engineer as having moderate liquefaction potential. Our team and the project's structural engineer specified driven helical piers extending to competent bearing material at 18 feet below grade. The helical pier system added cost relative to conventional spread footings, but it eliminated the risk of differential settlement during a seismic event. The additional investment represented a fraction of what post-earthquake remediation would have cost.
On any site with identified liquefaction potential, our team recommends deep foundation elements regardless of the addition's size—shallow footings placed in liquefiable soils are not an acceptable alternative under current seismic standards.
Geotechnical Investigation: The Essential First Step
A rigorous geotechnical investigation is the cornerstone of responsible room addition foundation design. Skipping this step is the most common and costly mistake our team observes in failed addition projects—and it is also one of the most preventable.

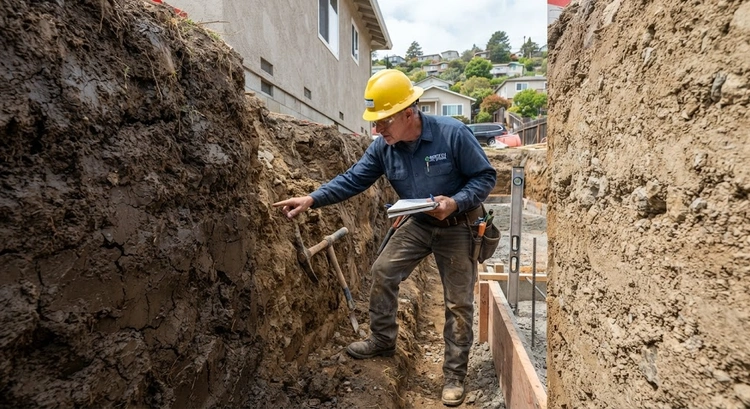

Soil Boring and Field Testing
A standard geotechnical investigation for a Bay Area room addition includes at least one soil boring positioned at the proposed addition footprint. The boring retrieves samples at regular depth intervals for visual classification and laboratory analysis. Standard Penetration Tests measure relative density and soil resistance at each sample depth. Our team coordinates closely with licensed geotechnical engineers—particularly those with established familiarity with the specific geology of the target municipality. Bay Area building departments, especially in Alameda and Santa Clara counties, scrutinize geotechnical reports carefully on addition permit applications.
Laboratory Analysis and Report Findings
Laboratory testing typically covers Atterberg limits, which quantify clay expansivity; grain size distribution; moisture content; and consolidation characteristics for compressible soils. The geotechnical report translates these findings into actionable design parameters: allowable bearing pressure, recommended foundation type, minimum embedment depth, and provisions for drainage or moisture control. Our team reviews these parameters in detail with the structural engineer before committing to any foundation design. This coordination step prevents costly field changes during construction.
What Soil Conditions Mean for Room Addition Foundation Costs
Soil conditions directly drive foundation costs on Bay Area room additions. The table below summarizes the cost impacts our team observes across common soil scenarios. These figures reflect foundation construction only and exclude superstructure framing or permit fees.
| Soil Condition | Typical Bearing Capacity | Recommended Foundation Approach | Relative Cost vs. Baseline |
|---|---|---|---|
| Competent native soil or bedrock | 2,000–4,000 psf | Standard spread footings, 18–24 in. depth | Baseline |
| Moderately expansive clay | 1,000–2,000 psf | Deepened footings (36–48 in.), moisture barrier | +20–40% |
| Highly expansive clay | 500–1,000 psf | Post-tensioned slab, footings below active zone | +40–70% |
| Loose alluvial fill | 500–1,500 psf (variable) | Compaction grouting or helical piers to bearing layer | +50–90% |
| Bay mud or organic fill | <500 psf | Driven or drilled piers to competent bearing stratum | +80–150% |
Key Cost Drivers by Soil Type
Deep foundation systems represent the largest potential cost driver in challenging soil conditions. Helical piers, driven piles, and drilled piers require specialized equipment and extended installation schedules. On bay mud sites, pier depths of 20 to 40 feet are not uncommon, and each additional foot of depth carries a direct cost implication. Post-tensioned slabs add material and labor cost but distribute loads far more effectively than conventionally reinforced slabs in expansive clay conditions.
The choice between a slab-on-grade and a raised perimeter foundation is also influenced heavily by soil conditions—not only by personal preference or budget. The post on slab-on-grade vs. raised foundation design in the Bay Area explores those tradeoffs in detail, and our team refers clients to it frequently during the early design phase.
Foundation Design Strategies for Challenging Bay Area Soils
Our team relies on a set of proven design responses calibrated to specific soil conditions. These approaches are established geotechnical and structural engineering practices applied with precision, not experimental solutions.
Deepened and Reinforced Footings
For moderately expansive clays, the standard response is to extend perimeter footings below the active moisture zone—typically 36 to 54 inches in the Bay Area context. Deeper embedment places the bearing surface in soil that experiences significantly less seasonal volume change. Additional continuous steel reinforcement prevents footing cracking if minor differential movement does occur. Our team specifies continuous perimeter footings rather than isolated pad footings wherever expansive soils are identified, as continuous footings distribute load more uniformly and resist differential movement more effectively.
Post-Tensioned Slabs and Deep Piers
Post-tensioned slabs are highly effective on expansive clay sites. Pre-stressed cables running through the slab hold it in compression, dramatically increasing resistance to the differential movement that expansive clays produce. On sites underlain by bay mud or liquefiable alluvium, deep piers bypass the problematic material entirely. The pier-supported approach eliminates load transfer through weak soil, delivering structural loads directly to a competent bearing stratum. Our team coordinates pier layout with the structural engineer to ensure load paths are direct and that connection details at the pier cap are properly designed for both gravity and lateral loads.
Drainage and Moisture Management
Moisture management is consistently underemphasized in addition foundation design, yet our team regards it as one of the highest-value line items in any foundation budget. Expansive clay behavior is driven almost entirely by moisture fluctuation. Positive site drainage away from all foundation elements, subsurface drainage systems where topography requires, and vapor retarders beneath slabs reduce seasonal moisture cycling and extend the functional life of any foundation system. When the budget is constrained, moisture management is the last item our team recommends cutting.
Building for the Long Term: Post-Construction Foundation Care
A well-designed foundation still requires consistent attention after construction is complete. Long-term performance depends on maintenance practices and periodic monitoring, particularly given the challenging soil conditions that characterize so much of the Bay Area. The same diligence that informs the connection of new footings to existing structures—explored in our post on tying room addition footings into an existing foundation—also applies to ongoing care after the addition is occupied.
Periodic Settlement Monitoring
Our team recommends that homeowners establish floor-level benchmark measurements at the time of construction completion. Simple readings at multiple interior points provide a baseline reference. Deviation from those baselines over subsequent years signals movement worth investigating. Small movements caught early can often be addressed with targeted soil stabilization or drainage correction. Deferred monitoring allows problems to compound until structural intervention becomes unavoidable and substantially more expensive.
Vegetation, Root Management, and Irrigation Practices
Large trees positioned near addition foundations represent a significant long-term risk on clay sites. Tree roots extract moisture from soil, causing localized shrinkage and differential settlement beneath foundation elements. Our team advises against planting large-canopy trees within 15 feet of any new addition foundation on clay soils. Existing mature trees warrant evaluation before construction begins—root barriers or selective removal may be necessary to prevent future foundation movement.
Consistent irrigation practices are equally important. Allowing soil adjacent to a foundation to dry out severely during drought periods, then saturating it with heavy irrigation or seasonal rain, recreates the moisture cycling that drives expansive clay movement. The goal is even moisture distribution around the foundation perimeter throughout the year, achieved through drip irrigation on controlled schedules rather than periodic deep watering.
Frequently Asked Questions
What soil conditions are most common in Bay Area room addition projects?
Expansive clay is the most widespread condition our team encounters, particularly in the East Bay, Fremont, and hillside areas throughout Alameda and Contra Costa counties. Soft bay mud and loose alluvial fill are common in low-lying areas near the bay and on valley floors across Santa Clara and San Mateo counties.
Is a geotechnical report always required for a room addition in the Bay Area?
Requirements vary by jurisdiction, but most Bay Area building departments require a geotechnical report for additions in designated seismic hazard zones or when the addition exceeds a minimum square footage threshold. Our team recommends commissioning a report regardless of whether it is strictly mandated, as it reliably prevents costly design errors.
How does expansive clay affect foundation depth for a room addition?
Expansive clay requires footings to bear below the active moisture zone, which typically means a minimum embedment depth of 36 to 54 inches in the Bay Area. This is considerably deeper than the 18-to-24-inch depths acceptable on stable native soils, and it increases both excavation and concrete costs accordingly.
Can a room addition be built on a lot underlain by bay mud?
Yes, but it requires a deep foundation system—typically driven or drilled piers extending to competent bearing material well below the mud layer. Standard spread footings placed on bay mud will consolidate unevenly under sustained load and cause progressive structural damage to both the addition and the existing home.
How much does a geotechnical investigation add to a room addition project budget?
A site-specific geotechnical investigation for a residential room addition typically costs between $1,500 and $4,000 in the Bay Area, depending on the number of borings and laboratory tests required. This investment is modest relative to the cost savings it generates by eliminating overdesign on stable sites and preventing underdesign on problematic ones.
What is liquefaction and why does it matter for room addition foundations?
Liquefaction occurs when saturated, loose granular soils temporarily lose bearing capacity during an earthquake as pore water pressure rises. An addition foundation bearing on liquefiable soil without deep pier support can experience dramatic differential settlement during a seismic event, causing severe structural damage to both the addition and the original structure.
How do soil conditions influence the choice between a slab-on-grade and a raised foundation for an addition?
Soil conditions are a primary driver of this decision. Highly expansive clays often favor post-tensioned slab-on-grade designs or raised perimeter foundations with ventilated crawl spaces. Bay mud sites require deep pier systems regardless of slab type. The appropriate choice depends on bearing capacity, expansivity index, and seismic risk at the specific site.
Next Steps
- Commission a site-specific geotechnical investigation before finalizing any addition design—retain a licensed geotechnical engineer and request soil borings positioned at the proposed addition footprint, not just at the existing structure.
- Review the completed geotechnical report with both a licensed structural engineer and a foundation contractor experienced in Bay Area soil conditions, so that the foundation design reflects actual site parameters rather than generic regional assumptions.
- Obtain an itemized foundation estimate that separates soil mitigation costs from standard foundation costs—this breakdown clarifies where the budget is being driven and allows informed decisions about design alternatives.
- Plan drainage infrastructure, vapor barriers, and irrigation controls as part of the initial foundation scope, and confirm that the civil or landscape design does not direct water toward the new addition footprint.
- Establish floor-level benchmark measurements immediately after construction is complete and schedule a professional foundation inspection at five-year intervals to detect and address any movement before it compounds into a structural problem.
