A Fremont homeowner poured a new concrete patio in the spring and watched hairline cracks appear before the first winter rains had passed. The culprit: the same expansive clay soil that fractures driveways and undermines foundations across the region. When evaluating concrete patio vs pavers Bay Area conditions demand a different calculus than flat, stable soil markets. Pro Home Foundation's concrete flatwork and driveway services handle both systems, but soil behavior — not aesthetics — should drive the final call.

Concrete patio vs pavers Bay Area installation on expansive clay soil backyard

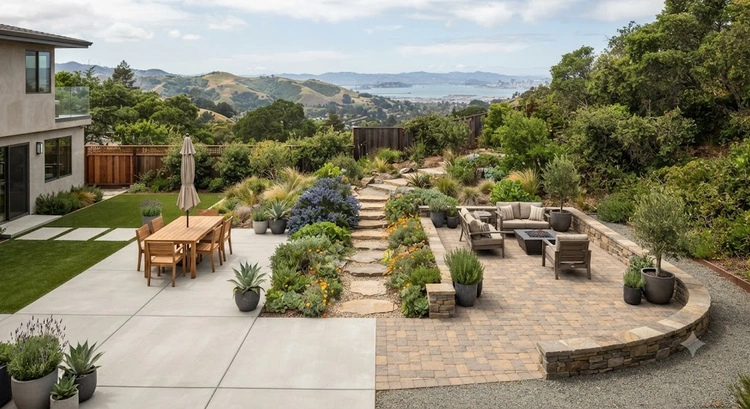

Figure 1 — Concrete slab (left) and interlocking concrete pavers (right) installed over Bay Area expansive clay subgrade.

Bay Area soils shift on a seasonal clock. Montmorillonite-rich clays beneath much of the East Bay, South Bay, and Peninsula absorb moisture during the rainy season and contract sharply through summer drought. A rigid surface sitting atop that movement will crack. A surface whose individual units can be lifted and reset behaves entirely differently under the same stress cycle.

The material choice carries downstream consequences beyond aesthetics. Poorly drained hardscaping redirects runoff toward the house, accelerating the damage detailed in how expansive clay soil damages Bay Area home foundations. A correctly installed patio — in either material — slopes away from the structure at a minimum 2% grade. That 2% is not optional on Bay Area clay.

Bar chart comparing concrete slab vs interlocking pavers across six performance metrics on Bay Area expansive clay soil

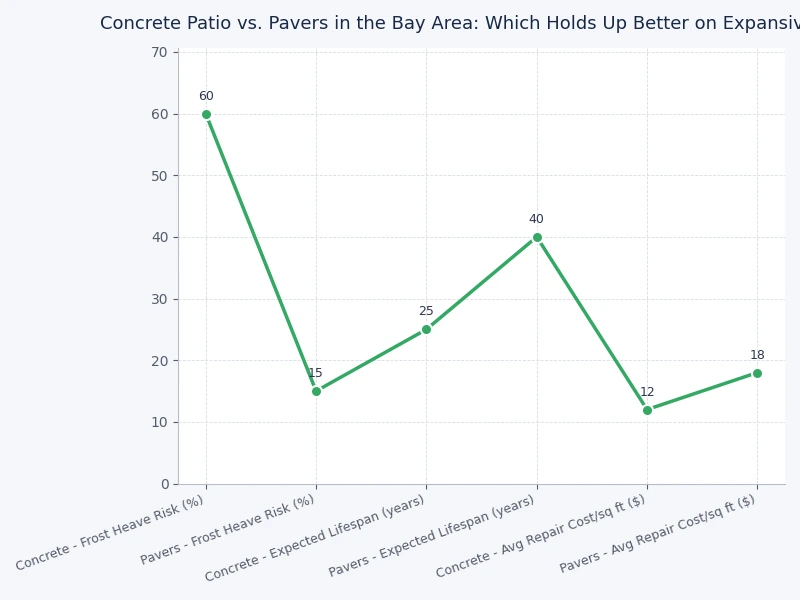

Figure 2 — Comparative performance scores for concrete slabs and interlocking pavers across six key metrics on Bay Area expansive clay soil.

Concrete vs. Pavers: Strengths and Weaknesses on Expansive Soil

Neither material holds a clean win. Performance on Bay Area expansive clay depends on subgrade preparation, joint design, and drainage control — variables that a site-specific soil report can quantify before a single form is set. The table below captures the core tradeoffs that contractors and homeowners weigh on every job.

Factor Concrete Slab Interlocking Pavers
Installed Cost (per sq ft) $12–$20 $18–$35
Failure Mode on Expansive Clay Monolithic cracking, slab heave Individual unit displacement
Repair Complexity High — visible patches or full replacement Low — reset individual units
Drainage Management Requires precise grading; no permeability Open joints allow partial infiltration
Ongoing Maintenance Sealing and joint refill every 3–5 years Re-sanding and edge restraint checks annually
Expected Lifespan (proper install) 25–40 years 30–50 years

The Case for Concrete

Monolithic concrete slabs deliver high compressive strength and a seamless surface. On stable soil, a 4-inch slab with proper rebar performs for decades with minimal intervention. On expansive clay, the same slab becomes a single rigid panel — and rigid panels crack when differential heave applies uneven force across their underside. That is the central tension with concrete in Bay Area conditions.

  • Lower upfront material and labor cost per square foot
  • Faster installation — single pour, cure, done
  • Accepts decorative finishes: stamping, exposed aggregate, broom texture
  • Easier to seal against moisture intrusion
  • One crack propagates across the entire slab — monolithic failure is the defining risk on high-EI soils
  • Repairs are visible; finish matching after partial replacement is rarely seamless
  • Requires precisely spaced control joints — see control joint spacing rules for Bay Area flatwork for code-compliant spacing

The Case for Pavers

Interlocking concrete pavers (ICPs) distribute load across individual units separated by sand-filled joints. When soil heaves under one section, those units lift independently and can be reset without disturbing the full surface. That targeted repairability is the decisive advantage on Bay Area expansive clay, where ground movement is not an occasional event — it is an annual certainty.

  • Individual unit replacement eliminates the visible patching problem that plagues concrete repairs
  • Flexible jointing absorbs differential movement without propagating damage
  • Permeable open-joint options reduce surface runoff and improve infiltration
  • Higher material and labor cost per square foot than concrete
  • Sand-set base migrates laterally if edge restraints fail or are omitted
  • Polymeric joint sand requires periodic replacement, especially after heavy rain

Pro insight: On soils with an Expansion Index above 90, pavers hold a structural advantage — their ability to reset individual units converts what would be a full slab replacement into a two-hour repair job.

Installation Decisions That Pay Off Immediately

The decisions that produce the largest long-term return happen before any material is placed on site. Subgrade preparation — not surface selection — is the primary determinant of performance on expansive clay soil.

Subbase Depth and Compaction

The USGS ranks expansive soils among the leading causes of infrastructure damage in the western United States, with annual costs exceeding those from earthquakes and floods combined. Standard practice in affected Bay Area jurisdictions requires:

  • Minimum 4 inches of Class II aggregate base (AB) for pedestrian patios
  • 6 inches of AB for vehicle-accessible hardscaping
  • Compaction to 95% relative compaction per ASTM D698 at each lift
  • Moisture conditioning of native clay subgrade before base placement
  • 1-inch coarse concrete sand bedding layer for pavers, screeded to grade after final AB compaction

Edge Restraints and Drainage

Plastic or aluminum edge restraints spiked into the subgrade are non-negotiable for paver installations on expansive clay. Without them, lateral clay movement pushes units outward, opens joints, and collapses the field pattern. Restraints must be re-spiked annually wherever heave has displaced them.

For concrete, control joints cut to one-quarter the slab depth at spacing of 2–3 times the slab thickness in feet are the primary crack management tool. A 4-inch slab gets joints every 8–12 feet. Bay Area clay soil drives random concrete cracking within 2–5 years when joint spacing is inadequate. Both surfaces must be graded away from the structure at a minimum 1/8 inch per foot.

Keeping Each Surface in Service

Concrete Maintenance

Bay Area concrete faces fog, occasional acid deposition near industrial corridors, and freeze-thaw cycles above 1,000 feet in the East Bay hills. Without a proactive sealing schedule, surface degradation compounds faster than the soil damage alone would produce.

  • Seal every 3–5 years with a penetrating silane-siloxane sealer — surface film sealers peel on exterior slabs
  • Inspect control joints annually; refill with polyurethane sealant when cracked or compressed below grade
  • Address drainage redirects immediately — standing water accelerates alkali-silica reaction (ASR) in aggregate
  • Grind high edges caused by differential heave before they exceed the ADA 1/2-inch trip-hazard threshold

Paver Maintenance

Pavers require less material maintenance than concrete but demand more consistent joint management. Bay Area winter rain events are the primary threat, washing out polymeric sand binder and leaving exposed channels that funnel water directly to the subbase.

  • Re-sand joints with polymeric sand every 3–5 years under normal conditions
  • Replace joint sand immediately after visible washout — open joints allow subbase undermining within a single rainy season
  • Reset individual lifted units with a flat bar; re-level bedding sand before replacing the unit
  • Inspect and re-spike edge restraints each fall before the first significant rain
  • Apply paver sealer every 3–5 years to suppress efflorescence and organic staining

Warning: Never pressure-wash polymeric sand joints at high PSI — it strips the binder and creates open channels that direct water straight to the subbase, triggering the bedding migration the joint sand was installed to prevent.

Selecting and Installing on Bay Area Soil

The installation sequence is well-established in industry practice. Execution quality at each step — not the sequence itself — is what separates a 30-year surface from a 5-year replacement. Every step below has a known failure mode when rushed or skipped on expansive clay.

Step 1 — Soil Assessment

Commission a geotechnical report before specifying materials for any patio larger than 200 square feet adjacent to a structure. The report identifies the Expansion Index (EI) of native soil — the primary number that governs material selection and subbase design. EI above 50 triggers enhanced subbase requirements under California Building Code Section 1803. EI above 130 warrants direct consultation with a licensed geotechnical engineer about additional measures: moisture barriers, deepened edge footings, or soil treatment.

Step 2 — Excavation and Subgrade Prep

Excavate to design depth: 8 inches for a standard 4-inch concrete slab (4" AB plus 4" concrete) and 9 inches for pavers (4" AB plus 1" sand plus 4" paver unit). Over-excavate 2 additional inches in any fill or disturbed soil areas. Compact native subgrade to 90% relative compaction before placing base rock — skipping this step on Bay Area clay is the single most common cause of premature surface failure.

Step 3 — Base and Bedding

Place AB in maximum 4-inch lifts. Compact each lift with a vibratory plate compactor before placing the next. Confirm grade with a laser level or 10-foot straightedge after each pass. For pavers, screed bedding sand after the final AB lift is confirmed — do not compact sand before unit placement, or the screed grade is destroyed and must be reset.

Step 4 — Surface Placement and Finishing

For concrete: set perimeter forms, place rebar on 18-inch centers minimum, pour, screed, bull-float, broom-finish perpendicular to primary traffic direction, and cut control joints within 24 hours of pour while concrete is still green. For pavers: place units in the specified bond pattern, cut border units with a wet saw, compact the field with a plate compactor fitted with a rubber protective pad, sweep polymeric sand into joints, then wet to activate the binder per manufacturer specification.

Step 5 — Final Inspection

Check cross-slope at multiple points with a 4-foot level. Verify edge restraints are flush with the finished surface and fully spiked at maximum 6-inch intervals. For concrete, confirm control joint depth and sealant coverage. Both surfaces must drain freely and show no standing water before the first rain event after installation.

Cross-section diagram comparing concrete slab vs interlocking paver installation layers over Bay Area expansive clay subgrade
Figure 3 — Cross-section comparison of concrete slab and interlocking paver construction over expansive clay, showing subbase, bedding, and surface layer relationships.

Diagnosing and Fixing Common Failures

Cracked Concrete Slabs

Random cracking — occurring between control joints rather than at them — indicates differential heave or inadequate joint spacing. Severity determines the repair path:

  • Slab jacking (mudjacking or polyurethane foam injection) lifts settled panels without demolition — cost-effective for isolated, contained settlement
  • Diamond grinding removes high edges that exceed the 1/2-inch trip threshold without replacing material
  • Full slab replacement is warranted when cracks exceed 1/4 inch width, when vertical displacement creates a structural discontinuity, or when the slab has lost bearing across multiple joint panels

Displaced or Settled Pavers

Individual pavers lift or sink when bedding sand migrates or clay heave applies upward force to one zone of the installation. The repair protocol is direct: remove affected units with a flat pry bar, add or remove bedding sand to restore design grade, replace units in the original pattern, re-sweep polymeric sand into joints, and recheck edge restraints in the surrounding area. A skilled crew handles a 10-square-foot repair in under two hours.

Joint Washout

Joint sand loss is the most frequent paver failure in Bay Area winter conditions. Higher-binder polymeric sand products designed for high-rainfall climates resist washout significantly better than standard formulations. Reapply after clearing joint channels of organic debris with a stiff brush and compressed air. Prevent recurrence by applying a penetrating paver sealer that slows water entry into the joint face without trapping vapor beneath the unit.

Drainage-Induced Foundation Risk

Both surface materials can redirect drainage toward the structure if they settle toward the house over time. The signs of foundation stress from misdirected hardscape drainage closely overlap with general structural failure indicators — recognizing the early warning signs of Bay Area foundation damage allows homeowners to address the drainage source before the foundation requires remediation. Regrading or replacing a failed patio surface costs a fraction of the foundation repair that results from ignoring it.

Frequently Asked Questions

Which holds up longer in Bay Area soil conditions — concrete or pavers?

Properly installed interlocking pavers typically outlast monolithic concrete slabs on expansive clay. Pavers absorb differential movement through individual unit displacement and flexible jointing, while concrete transfers that stress into cracks. With standard maintenance, pavers achieve a 30–50 year service life versus 25–40 years for concrete on high-EI Bay Area soils.

How does Expansion Index determine material selection?

Expansion Index (EI) is the primary soil variable in material selection. EI below 50 presents low risk to either surface. EI between 50–130 warrants enhanced subbase depth and compaction — pavers perform better in this range because of their inherent flexibility. EI above 130 requires geotechnical engineer review and potentially additional soil mitigation measures before any surface is specified.

Is a permit required for a new patio in Bay Area cities?

Most Bay Area jurisdictions require a permit for hardscaping over 200 square feet adjacent to a structure, or for any project involving drainage system modifications. Requirements vary by city and by proximity to the primary structure. Homeowners must confirm with their local building department before excavation begins — unpermitted flatwork can complicate property sales and future permit applications.

Can a cracked concrete patio cause foundation damage?

Cracked concrete that settles toward the structure actively redirects surface runoff toward the foundation. In Bay Area clay soil, that additional moisture load drives accelerated heave-shrink cycles and can trigger the differential settlement patterns that require foundation remediation. Correcting or replacing a failed patio surface is consistently less costly than the foundation repair that follows prolonged drainage misdirection.

Final Thoughts

The concrete patio vs pavers Bay Area decision ultimately turns on two variables: the site's Expansion Index and the owner's tolerance for different repair profiles. Pavers hold the long-term structural advantage on high-EI clay — but only when installed on a properly compacted, code-depth subbase with intact edge restraints and disciplined joint maintenance. Concrete performs reliably on lower-EI sites when control joints are correctly spaced and sealing is maintained on schedule. Pro Home Foundation evaluates soil conditions, specifies the appropriate system, and installs flatwork built to account for Bay Area soil realities from the first shovel cut — contact the team for a site assessment before committing to either material.
