How Expansive Clay Soil in the Bay Area Damages Home Foundations

Over 60% of Bay Area homes sit directly on expansive clay soil — and most homeowners don't realize it until foundation cracks appear. Expansive clay soil foundation damage Bay Area contractors deal with follows a predictable and expensive pattern. The soil swells when wet, shrinks when dry, and that seasonal cycle repeats relentlessly year after year. The resulting ground movement puts enormous lateral and vertical pressure on concrete slabs, stem walls, and pier systems alike. Our team at Pro Home Foundation has watched this pattern play out across hundreds of projects: early warning signs get ignored, and small problems turn into five-figure repairs. Anyone considering a foundation repair or retrofit in the Bay Area needs to understand what the ground beneath their home is actually doing.

The Bay Area's geology is dominated by Vertisols and montmorillonite-rich clay formations. These clays carry a plasticity index (PI) that routinely exceeds 50, meaning extreme volume-change potential with every moisture fluctuation. Our experience shows that a single wet-dry cycle can move soil vertically by an inch or more. Multiply that across a 40-foot foundation perimeter and the structural forces become serious fast.

The problem isn't limited to older homes. New construction, ADU foundations, and room additions all face identical challenges. Understanding soil behavior — and designing around it — is what separates a foundation that lasts from one that fails within a decade. The Bay Area soil conditions that affect room addition foundation design follow many of the same principles we cover throughout this post.

What Makes Bay Area Clay So Destructive to Foundations

The Science Behind Expansive Clay

Expansive soils are classified by their shrink-swell potential, driven primarily by clay mineral content. In the Bay Area, the dominant culprit is montmorillonite — a smectite-group mineral with an extraordinary capacity to absorb water molecules between its crystal lattice layers. The result is soil that behaves almost like a sponge, but at a scale that can crack concrete.

Key technical characteristics of Bay Area expansive clay:

• Plasticity Index (PI) of 35–65 across most of the region — classified as high to very high expansion potential
• Volume change of 15–30% with full saturation cycles; up to 50% in extreme cases
• Swell pressure exceeding 10,000 psf against confined foundation elements in high-PI soils
• Shrinkage cracking to depths of 3–5 feet during dry seasons, creating voids under slabs

The soil doesn't just push upward — it also pulls away laterally. That dual action creates differential settlement, which is far more damaging than uniform movement. A foundation that sinks two inches evenly can survive. One that drops two inches on one end and stays put on the other will crack and rack the structure above it.

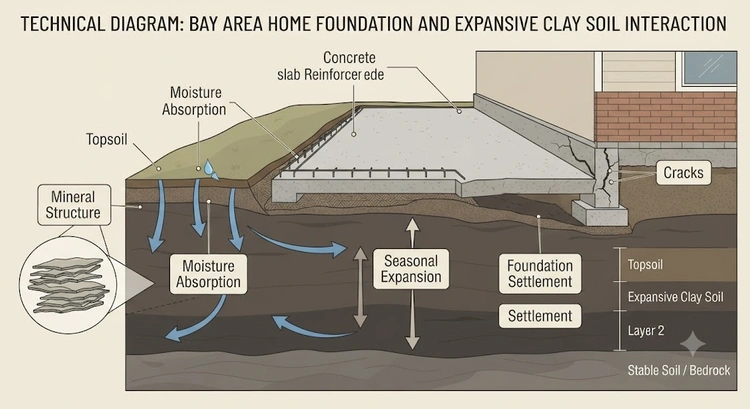

Bay Area's Wet-Dry Climate Amplifies the Problem

The Mediterranean climate is uniquely punishing for expansive clay foundations. Winters bring heavy saturation. Summers bring extreme desiccation. The swing between those two states is as dramatic as anywhere in the country.

• Winter: Clay saturates, expands under and around all foundation elements
• Spring: Partial drainage, ongoing lateral pressure against stem walls and grade beams
• Summer: Soil desiccates and pulls away from the foundation — voids form under slabs
• Fall: First rains hit dry, cracked soil — rapid re-expansion, hydraulic pressure spike

Pro insight: The most destructive moment is the first heavy rain after a long dry summer. Desiccated clay absorbs water rapidly, and the expansion pressure spike in the first 24–48 hours often exceeds the sustained swell pressure of an entire wet season.

This cycle doesn't stabilize on its own. Without intervention, each successive wet-dry season widens existing cracks and deepens existing damage patterns. The compounding effect over 10–20 years is what turns a manageable crack into a structurally compromised foundation.

Clay Soil Foundation Damage Myths We Hear Constantly

Myth: Foundation Cracks Are Just Cosmetic

This is the most dangerous assumption in Bay Area homeownership. Most people assume that small cracks — under 1/8 inch — are normal settling and nothing to worry about. Our team hears this constantly during initial inspections.

The reality, crack type by crack type:

• Horizontal cracks in stem walls indicate lateral soil pressure — never cosmetic, always structural
• Stair-step cracks in brick or CMU indicate differential settlement already in progress
• Diagonal cracks at door or window corners indicate racking — a structural event, not shrinkage
• A crack that was 1/16 inch last season and is now 1/8 inch is active — active means progressing
• Cracks with displacement — where one side sits higher than the other — indicate foundation movement, not curing shrinkage

Our position is firm: no foundation crack in Bay Area clay soil is automatically cosmetic. Some are genuinely minor. But that determination requires professional evaluation, not a casual visual assessment.

Myth: New Construction Is Safe from Clay Damage

New builds designed specifically for expansive clay are more resilient — but not immune. Poor drainage design, improper subgrade preparation, or inadequate post-tensioning specifications can doom a new foundation within five to ten years on active Bay Area clay.

Common failures our team sees in newer construction on expansive clay:

• Slab-on-grade poured without pre-moistening the subgrade — differential shrinkage occurs in the first dry season
• Grade beams undersized for actual site PI values — engineer used generic specs rather than site-specific geotechnical data
• Post-construction landscaping that disrupts designed drainage patterns, directing water back toward the foundation
• ADU foundations specified to generic slab standards, without evaluating the host parcel's specific clay characteristics

Which Bay Area Properties Face the Highest Risk

Geographic Hotspots in the Bay Area

Not all Bay Area neighborhoods carry equal risk. High-expansion clay concentrations tend to cluster in specific geologic zones that homeowners and contractors need to know.

• East Bay flatlands (Oakland, Hayward, Fremont): Marine clay and alluvial deposits — consistently high PI values across the subregion
• South Bay valley floor (San Jose, Santa Clara, Milpitas): Deep alluvial clay aggravated by historical groundwater subsidence
• Peninsula foothills (Los Altos Hills, Portola Valley): Residual clay over serpentinite — steep slopes compound lateral movement
• Marin County hillsides: Weathered shale clay, highly plastic, frequently underlain by unstable colluvium

Construction Types Most Vulnerable

Some foundation types handle Bay Area expansive clay far worse than others. Our inspection history points to a consistent pattern:

• Unreinforced concrete perimeter walls (common pre-1950 construction): Zero tensile capacity — crack immediately under differential movement
• Raised wood-frame foundations on continuous footings: Footings spread insufficient load; dry-season void formation leads to mid-span deflection
• Slab-on-grade without post-tensioning or with inadequate PT cable spacing: Notoriously susceptible to clay heave cracking
• Shallow spread footings under additions: Typically placed in the active zone — the top 5–8 feet where clay movement is most severe

Understanding how foundation type interacts with soil classification is essential before choosing a repair or new-build approach. Our analysis of slab-on-grade vs. raised foundation options for Bay Area homes covers this interaction in detail.

Early Warning Signs of Expansive Clay Soil Foundation Damage

Interior Warning Signs

The interior of a home typically reveals clay soil foundation damage before exterior cracks become obvious. Anyone living in a Bay Area home on expansive clay should know what to watch for:

• Doors that stick in winter and swing freely in summer — direct evidence of seasonal differential movement
• Diagonal drywall cracks running from door or window corners toward the ceiling
• Floors that feel spongy or visibly slope toward one wall
• Gaps opening between interior door frames and the surrounding wall framing
• Tile floors with popped or cracked grout lines in geometric or diagonal patterns
• Baseboards pulling away from the floor or separating at corners

Warning: Doors and windows that stick only in winter aren't a minor seasonal nuisance — they're a direct symptom of active clay heave. Tracking whether sticking worsens year-over-year is critical. Our full checklist of signs a Bay Area home needs foundation repair covers every indicator worth monitoring.

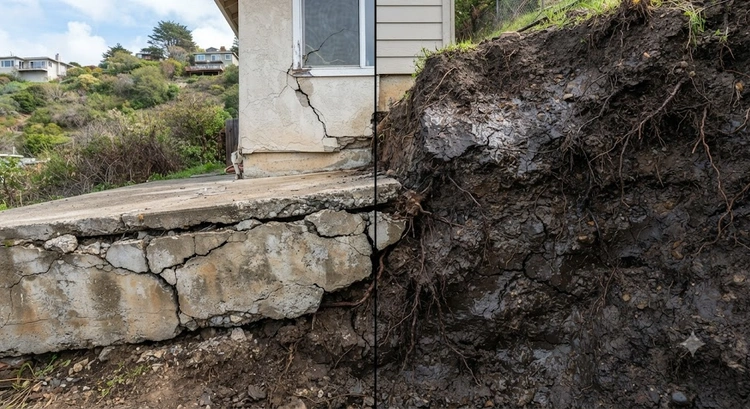

Exterior Warning Signs

• Stucco cracks following diagonal or stair-step patterns along the exterior walls
• Visible separation between the foundation sill plate and the top of the stem wall
• Concrete flatwork — driveways, walkways, patios — heaving or cracking in patterns. The same forces acting on the driveway are acting on the foundation. Bay Area clay concrete driveway cracking and foundation damage share identical root causes, as we cover in our post on how Bay Area clay soil causes concrete driveways to crack
• Standing water pooling against the foundation after rainfall — positive drainage is absent
• Visible bowing or horizontal cracking in concrete stem walls
• Gaps between garage door headers and the door opening — often the first exterior sign of foundation racking

Managing Clay Soil Around an Existing Foundation

Drainage and Grading Solutions

Controlling soil moisture is the single highest-leverage intervention for clay soil foundation damage. Our team consistently recommends addressing drainage before any structural repair. Structural work on top of unresolved moisture problems is a temporary fix.

1. Regrade the soil to achieve a minimum 6-inch drop over the first 10 feet from the foundation — positive drainage away from the structure is non-negotiable
2. Install French drains or area drains at the foundation perimeter to intercept runoff before it saturates foundation soil
3. Extend downspouts a minimum of 6 feet from the foundation — roof discharge is a primary clay saturation source that most homeowners overlook
4. Replace irrigated planters directly against the foundation with non-irrigated hardscape or gravel
5. Audit and fix irrigation system leaks; reroute any heads that spray toward the stem wall or grade beam

Soil Moisture Control Strategies

The goal isn't eliminating soil moisture — it's maintaining consistent moisture levels year-round. Dramatic swings between saturation and desiccation are what destroy foundations. Uniform moisture minimizes differential movement.

• Deep-water landscape trees well away from the foundation to prevent root systems from pulling moisture out of foundation soils in dry months
• Apply mulch in planting beds to slow summer evaporation and moderate soil moisture fluctuation
• Consider a perimeter soaker line during extended dry seasons — effective when calibrated with input from a geotechnical engineer
• Remove trees within 20 feet of the foundation if active root-moisture competition is confirmed through monitoring
• Seal foundation cracks promptly — open cracks allow rapid moisture infiltration during the first rains, triggering acute expansion events

Foundation Repair Options for Expansive Clay: What Actually Works

Underpinning and Helical Piers

For homes experiencing differential settlement on expansive clay, helical piers are our preferred structural repair method. They're installed by screwing into bearing strata below the active clay zone — typically 15–30 feet deep in Bay Area conditions — and they bypass the problematic soil entirely rather than trying to stabilize it.

Why helical piers perform well on expansive clay:

• Anchored below the active zone — clay movement in the upper soil column doesn't affect pier performance
• Installation requires no excavation or dewatering
• Works in limited-access situations: tight crawl spaces, interior bearing points, narrow side yards
• Load capacity is verified by torque correlation during installation — no guesswork
• Bracket systems allow controlled foundation lifting to recover lost elevation

Push piers (resistance piers) are also effective on Bay Area clay when installed correctly. The critical factor is reaching competent bearing strata — not just stopping at the first refusal point within a clay layer, which can shift over time.

Repair Methods That Don't Hold Up

Some commonly marketed repair methods perform poorly on expansive clay specifically. Our team recommends against:

• Mudjacking and polyurethane slab lifting: Effective for void-related subsidence, but not clay heave. If the clay continues its seasonal cycle, the slab lifts right back out of position. Not a long-term solution on active clay
• Lime treatment of in-place soil: Effective only in the upper 2–3 feet and requires thorough mechanical mixing — rarely practical under an existing foundation without full excavation and reconstruction
• Surface-only crack injection without addressing root cause: Fills the visible crack while the soil continues moving and opens new ones

Pro insight: Any repair strategy that doesn't account for ongoing seasonal soil movement is a temporary fix. Our team has re-repaired dozens of Bay Area foundations where mudjacking or crack injection was done without addressing drainage or subsurface movement — the damage always returned.

What Expansive Clay Soil Foundation Repairs Cost in the Bay Area

Cost Breakdown by Repair Type

Bay Area foundation repair costs run significantly higher than national averages — driven by labor markets, permit requirements, and mandatory engineering review. The table below reflects current project pricing ranges our team sees for typical residential foundations on expansive clay.

Factors That Drive Costs Higher

• Permit and geotechnical report requirements: Bay Area jurisdictions add $3,000–$10,000 in engineering and review fees to most projects
• Access constraints: hillside lots, crawl spaces under 18 inches, and narrow side yards all increase labor hours significantly
• Pier depth: reaching competent bearing strata at 25–35 feet rather than 15 feet changes per-pier cost substantially
• Concurrent repairs: active plumbing leaks under slab must be resolved before any structural repair can proceed
• Deferred maintenance: the longer damage goes unaddressed, the wider the repair scope tends to be

Anyone budgeting for foundation work should understand that seismic retrofit work is frequently cost-effective to address simultaneously. Bundling the two scopes saves on mobilization, permitting, and engineering. Our breakdown of seismic retrofit costs in the Bay Area gives detailed pricing for that parallel scope.

When to Repair vs. When to Replace the Foundation

Clear Signs Repair Is the Right Call

Our team recommends targeted repair — not full replacement — in the majority of cases. Full replacement is rarely necessary for single-story wood-frame homes with isolated or moderate damage.

Conditions where targeted repair works well:

• Differential settlement under 2 inches with no active superstructure failure
• Isolated stem wall cracking without widespread lateral displacement
• Damage concentrated on one or two sides of the structure — addressable with 8–12 piers
• Slab cracking without significant vertical offset or confirmed void formation under the slab
• Damage progressing slowly and predictably over multiple seasons, not accelerating

When Full Replacement Makes More Sense

Full replacement is justified — and sometimes unavoidable — in these scenarios:

• Unreinforced concrete perimeter walls with lateral displacement exceeding 1 inch — structural repair can't restore the lost section modulus
• Settlement exceeding 3–4 inches with significant racking of the floor framing or wall system above
• Foundations that have been patched repeatedly with incompatible materials over decades — no coherent structural system remains
• Perimeter damage that is truly continuous — isolated pier repair can't stabilize a fully compromised system
• New second-story additions or ADU construction over an existing foundation that can't carry the new load demand

The decision between repair and replacement must be driven by a geotechnical report and structural engineering analysis — not contractor opinion alone. Our team coordinates with licensed structural engineers and geotechnical consultants before recommending either path. There's no honest shortcut to that due diligence on Bay Area expansive clay.

Long-Term Strategy for Foundations on Bay Area Clay

Design Choices That Last

For new construction and major additions on expansive Bay Area clay, design decisions made at the start determine whether the foundation lasts 20 years or 80. Our team's preferred specifications for high-PI clay sites:

• Post-tensioned slab-on-grade engineered to PTI D4.1 standards with site-specific clay PI data — the proven standard for Bay Area production builders dealing with expansive clay
• Grade beams deepened to 18–24 inches minimum to anchor below the shallow active zone
• Structural piers to bedrock or competent bearing strata for any hillside lot or high-PI site
• Compacted engineered fill with lime-treated clay subgrade where full foundation replacement is underway
• Perimeter drainage systems integrated into foundation design — not retrofitted as afterthoughts during landscaping

For ADU projects, soil conditions on the host parcel often differ meaningfully from where the main house foundation sits — even on the same lot. Our detailed coverage of detached ADU foundation types — slab, crawl space, and raised addresses how site-specific clay conditions should directly inform ADU foundation selection.

Ongoing Monitoring and Maintenance

A well-designed foundation on Bay Area clay still requires ongoing monitoring. Our recommendations for any homeowner in a high-expansion-clay zone:

1. Install elevation benchmarks at 6–8 points around the foundation perimeter — measure annually with a level rod or digital inclinometer to catch differential movement early
2. Photograph all known cracks with a ruler for scale at the start of each wet season and each dry season — a dated photo library is invaluable for tracking active vs. stable cracks
3. Maintain a drainage inspection log: verify downspout extension function, swale grades, and French drain cleanouts each fall before the rains begin
4. Schedule a professional foundation inspection every 5–7 years, or immediately after any significant seismic event
5. Review irrigation schedules each season — summer over-irrigation near the foundation is as damaging as poor drainage, because it artificially re-saturates soil that should be drying uniformly

Long-term performance on expansive clay is a maintenance discipline, not a one-time fix. The foundation exists in a constant mechanical relationship with the soil around it. Our team's consistent observation: homeowners who monitor proactively spend dramatically less over a 20-year horizon than those who react to failures after significant damage has accumulated.

Frequently Asked Questions

Key Takeaways

• Expansive clay soil foundation damage Bay Area homeowners face is driven by montmorillonite clay that swells and contracts with seasonal moisture shifts — the Mediterranean climate makes the Bay Area one of the most punishing environments for foundations in the country.
• No foundation crack on a Bay Area clay-soil site is automatically cosmetic — every crack warrants professional evaluation, and active or widening cracks require urgent attention before the next wet season.
• Helical piers anchored below the active clay zone are our preferred repair method for differential settlement because they bypass the problem soil entirely rather than attempting to stabilize it in place.
• Drainage correction and consistent soil moisture management often deliver more long-term value than structural repair alone — addressing the root cause before reaching for piers is always the right sequence.
