Which foundation type determines whether a detached ADU becomes a long-term asset or a long-term liability? The evidence points to one answer: detached ADU foundation types drive more downstream cost and structural risk than any other single decision in the project. Homeowners who lock in a foundation type before evaluating soil, slope, and code requirements frequently face expensive corrections mid-build — or worse, after occupancy. The ADU foundation specialists at Pro Home Foundation see this pattern consistently across Bay Area projects ranging from flat Sunnyvale lots to steep East Bay hillsides.

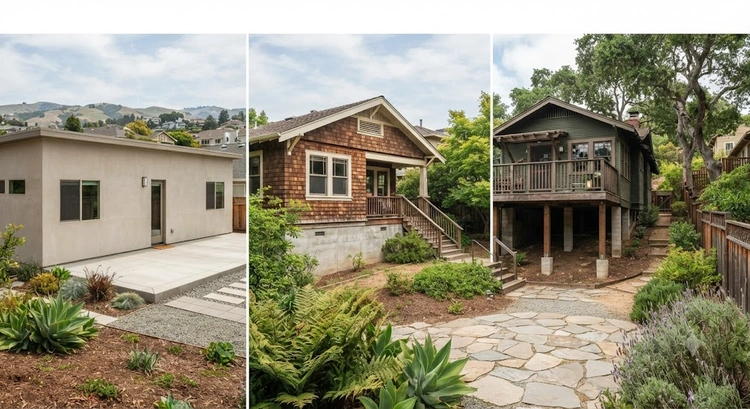

Detached ADU foundation types including slab-on-grade, raised crawl space, and pier-and-beam systems on Bay Area sites
Figure 1 — The three primary detached ADU foundation types each respond differently to Bay Area soil conditions, lot topography, and seismic requirements.

California's ADU expansion has pushed detached unit construction into every terrain type the Bay Area offers. California's Department of Housing and Community Development governs zoning and land use, but structural foundation requirements remain under local building department jurisdiction — and those departments vary significantly in what they enforce. A foundation design that sails through permit review in Santa Clara County may trigger a mandatory soils report requirement in Contra Costa or additional special inspections in San Francisco.

Three systems cover the vast majority of detached ADU foundation work in the region: concrete slab-on-grade, raised wood-frame crawl space on continuous perimeter footing, and pier-and-beam or post-and-pier on drilled or poured concrete piers. Each has a specific performance profile tied to soil bearing capacity, lot topography, utility routing, and seismic detailing. Understanding those profiles before committing to a design is not optional — it is the foundation of a project that performs as intended. A comprehensive look at how costs break down across these systems appears in the Bay Area ADU foundation costs guide.

Chart comparing detached ADU foundation types by cost range, slope tolerance, and utility access in the Bay Area
Figure 2 — Cost range, slope tolerance, and utility access compared across the three primary detached ADU foundation types for Bay Area projects.

Slab, Crawl Space, and Raised: How the Three Detached ADU Foundation Types Compare

The structural engineering community treats these three systems as distinct solutions to distinct problems — not as a hierarchy of quality. Each has legitimate applications in Bay Area ADU construction, and each performs poorly when applied to the wrong site. The decision is a function of soil, slope, and utility routing — not personal preference or cost alone.

Slab-on-Grade: Flat Sites, Fast Builds

A concrete slab-on-grade is a reinforced concrete pad poured directly on prepared subgrade, with integral thickened footings at the perimeter and at bearing walls. It eliminates the crawl space entirely. The slab becomes both the structural foundation and the finished subfloor substrate. Slab-on-grade is the fastest and typically least expensive option when site conditions support it — meaning flat or near-flat grade, non-expansive soil, and utility routing that can be resolved before the pour. For a direct comparison of this system against raised construction, the article on slab-on-grade vs. raised foundation options in the Bay Area covers the performance trade-offs in detail.

Raised Crawl Space: Sloped Lots and Utility Access

A raised crawl space foundation uses a continuous perimeter footing with concrete or masonry stem walls that elevate the floor system above grade. The resulting crawl space — typically 18 to 36 inches of clearance — houses plumbing, electrical conduit, and HVAC runs beneath the subfloor. This system accommodates grade differentials up to roughly 36 inches across the building footprint before requiring a hybrid approach or pier extensions. The crawl space also allows utility modifications after occupancy, a meaningful long-term advantage over a poured slab where all penetrations are permanent.

Pier-and-Beam: When Grade Change Is Extreme

Post-and-pier or drilled concrete pier systems are specified when topographic change across the ADU footprint exceeds what stem walls can accommodate economically, or when geotechnical conditions require deep foundation elements to reach competent bearing material. On steep hillside lots — common in Oakland, Berkeley, and the Marin hillsides — pier depth often reaches 12 to 24 feet. The structural frame then spans between piers with the building elevated significantly above the downhill grade. Cost on these systems is primarily driven by pier quantity, depth, and access constraints on narrow or steep parcels.

Foundation Type Typical Bay Area Cost (400 sf ADU) Slope Tolerance Utility Access Construction Timeline
Slab-on-Grade $18,000 – $32,000 0–5% grade In-slab only; modifications costly after pour 1–2 weeks
Raised Crawl Space $28,000 – $52,000 5–25% grade Excellent; accessible post-build 2–4 weeks
Pier-and-Beam $45,000 – $90,000+ 25%+ grade Excellent; utility runs visible below structure 3–6 weeks

How Bay Area Lots Shape Foundation Selection in Practice

The three foundation types are not distributed evenly across the Bay Area. Geography, geology, and jurisdictional practice cluster them into predictable zones. Experienced contractors know which system a lot will likely require before the geotechnical report arrives — because the terrain tells most of the story.

Flat Valley Floor Sites

South Bay cities — Sunnyvale, Santa Clara, Mountain View, Milpitas — sit largely on alluvial fill deposited by the Santa Clara River system. Soil profiles are relatively predictable: sandy to silty loam underlain by denser alluvial material. Bearing capacity is generally adequate for slab construction without deep elements. Slab-on-grade dominates detached ADU construction on these flat valley sites because soil, slope, and cost all point to the same conclusion. Jurisdictions here are also well-practiced with slab ADU permits, which keeps plan-check cycles shorter and inspection scheduling more predictable.

The exception is proximity to the Bay margin. Sites within the historic marsh zone — portions of East Palo Alto, parts of Alviso, and low-lying sections of Fremont — can contain soft, compressible Holocene bay mud. Slabs on those sites require either a compacted structural fill surcharge or pile-supported mat construction. This is a soil classification question, not a topographic one. That distinction underscores why geotechnical review matters even on seemingly simple flat lots.

Hillside Lots in the East Bay and Peninsula

Oakland Hills, Berkeley Hills, Orinda, Woodside, and Portola Valley present the full spectrum of slope and soil complexity. Lots with 15 to 40 percent grades are common. Many of these sites also sit atop the Franciscan Complex — a jumbled mix of serpentinite, greywacke, and shale with unpredictable bearing values and significant variability across short horizontal distances. On these lots, raised crawl space and pier systems are standard. Pier depth, bearing stratum, and seismic detailing requirements must be confirmed through investigation, not assumed from neighboring projects. No two hillside parcels perform identically.

What Each Detached ADU Foundation Type Costs in the Bay Area

Foundation cost on a detached ADU is not a fixed line item. It scales with soil conditions, access constraints, permit requirements, and the specific geometry of the structure. The ranges in the comparison table above reflect real Bay Area project data, not published national averages from cost estimating databases that have no relationship to local labor and material markets.

Slab Cost Range

For a 400-square-foot detached ADU on a flat, suitable site in the South Bay, slab-on-grade foundation work — including excavation, sub-base preparation, vapor barrier, rebar, and pour — runs between $18,000 and $32,000. The lower end assumes straightforward site access, non-expansive native soil, and standard reinforcement at 18-inch on-center spacing. The upper end reflects sites requiring import fill, additional rebar density mandated by a soils engineer, or integration with existing hardscape. Post-tensioned slabs, sometimes specified on marginal expansive soil classifications, add $6,000 to $12,000 to the base cost and require a licensed PT specialty subcontractor.

Crawl Space and Raised Foundation Cost Range

Raised crawl space foundations typically run $28,000 to $52,000 for the same 400-square-foot unit on a moderately sloped lot. Pier-and-beam systems on steep hillside lots start at $45,000 and frequently exceed $90,000 when pier depth, formwork complexity, equipment access, and concrete pump costs are factored in. Those numbers do not include the structural framing package above, which on a post-and-pier system often requires custom beam sizing to span between bearing points at varying elevations — adding engineering fees and material costs that flat-site projects do not carry.

Matching Foundation Type to Site Conditions and Code

Selecting a detached ADU foundation type is, fundamentally, a process of elimination based on what the site will not support. The correct question is not which system the owner prefers — it is which systems the soil, slope, and local code actually permit.

When Slab Makes Sense — and When It Does Not

Slab-on-grade is the correct choice when grade is essentially flat across the building footprint, soil bearing capacity is confirmed, and all utility routing can be resolved before the pour. It is the wrong choice on lots requiring significant cut-and-fill to achieve a level pad, on sites with expansive clay classifications above EI-50, and on any site where future plumbing modifications are anticipated. Bay Area clay soils — and their documented behavior under seasonal moisture cycling — are analyzed in detail in the discussion of how Bay Area clay soil affects concrete flatwork. The same mechanisms that crack driveways will crack under-engineered ADU slabs.

When to Specify a Raised or Crawl Space System

A raised foundation becomes the pragmatic choice on any lot with measurable cross-slope, on sites where the geotechnical report identifies expansive or compressible soils, and wherever plumbing penetrations through the floor system are likely to change over the building's life. Hillside lots with grades exceeding 15 percent should default to pier-and-beam unless a specific cut condition allows a level pad to be engineered without retaining wall complications. Seismic detailing on raised systems requires hold-downs at all shear wall boundary elements and positive mudsill connections — requirements that are non-negotiable in Seismic Design Category D, which covers the vast majority of Bay Area jurisdictions.

Pro insight: On any stem wall or CMU foundation system, require continuous special inspection on the mudsill anchor bolt installation — misplaced or under-torqued anchor bolts are the single most common deficiency flagged during foundation inspections across Bay Area jurisdictions.

What Experienced ADU Contractors Prioritize Before Choosing a Foundation System

The foundation type discussion should happen after site evaluation — not before it. Contractors who name a preferred system during the initial client meeting, before reviewing a geotechnical report, are working on assumptions. Those assumptions fail on the lots where it matters most.

Soil Investigation First

A standard geotechnical investigation for a detached ADU typically involves two to three borings or test pits, laboratory analysis of soil plasticity index and expansion potential, and a written report with explicit foundation type recommendations. For most Bay Area ADU projects, that report costs $2,500 to $5,000 and takes two to four weeks from field work to final delivery. It is not optional on hillside sites, and it is strongly advisable on flat lots in historically problematic soil zones. The investment eliminates the most expensive category of mid-construction surprises. The geotechnical report requirements guide covers what the investigation should include and how to read the resulting recommendations.

Utility Coordination Before Forming

Foundation type selection must account for how water, sewer, gas, and electrical service will enter the structure. On a slab, all under-slab utilities must be stubbed in the correct position before the pour — with no margin for adjustment. On a raised system, those penetrations can be modified after the foundation is in place. Projects that skip utility coordination before foundation forming consistently generate rework costs that exceed the time saved by starting early. This step is especially important when the new ADU connects to service laterals shared with the primary dwelling, because existing stub locations may not align with the ADU's interior layout as designed.

Common Foundation Problems and How to Avoid Them

Most detached ADU foundation failures follow predictable patterns tied to system selection errors or construction deficiencies. They are not random events. They are the foreseeable outcome of ignoring site data in favor of schedule or budget pressure.

Slab Cracking on Expansive Clay

The most common failure mode on Bay Area ADU slabs is differential cracking driven by expansive clay movement. When wet-season moisture infiltrates beneath a slab on expansive soil, the clay swells unevenly — heaving in saturated zones and contracting in drier areas. The resulting differential movement exceeds the tensile capacity of standard 4,000 psi concrete, producing diagonal or map cracking across the slab field. This is a system-mismatch failure, not a construction defect. The correct response is not to patch the cracks but to evaluate whether the foundation type was appropriate for the soil from the outset. Early-stage cracking indicators and what they signal in a Bay Area context are covered in the guide on signs a Bay Area home needs foundation repair.

Crawl Space Moisture and Ventilation Failures

Raised crawl space foundations in coastal Bay Area microclimates are prone to chronic moisture accumulation when ventilation design is inadequate. The California Building Code specifies prescriptive cross-ventilation opening ratios, but those minimums frequently underperform in fog-belt locations — Daly City, Pacifica, the coastal Santa Cruz Mountains, and the marine-influenced West Oakland flatlands. Specify a vapor barrier on all crawl space dirt floors — 6-mil polyethylene minimum, 10-mil preferred — and calculate actual ventilation area based on local humidity data rather than defaulting to code minimums. Unaddressed moisture in a crawl space leads to wood rot at the subfloor system, fungal growth on joists, and eventually structural degradation that is significantly more expensive to remediate than the ventilation upgrade that would have prevented it.

Frequently Asked Questions

Which detached ADU foundation type is most common in the Bay Area?

Slab-on-grade is the most frequently permitted foundation type for detached ADUs across the flat valley floor cities of the South and East Bay. Raised crawl space and pier-and-beam systems become standard as lot topography increases, particularly in hillside communities such as Oakland Hills, Berkeley, Orinda, and throughout Marin County.

Does a detached ADU project require a geotechnical report before the foundation type is chosen?

Not always. Many jurisdictions allow contractors to use default soil bearing values on flat sites with documented soil histories. However, a full geotechnical investigation is required by most building departments when slope exceeds 15 percent, when fill soils are suspected, or when the site falls within a mapped landslide, liquefaction, or fault setback hazard zone — all common conditions in the Bay Area.

Can the foundation type be changed after a permit is issued?

Yes, but a plan revision must be submitted to the building department and reviewed by the structural engineer of record. Foundation type changes mid-permit frequently delay construction by four to eight weeks in Bay Area jurisdictions with high permit volume. The change is sometimes unavoidable when unexpected soil conditions are encountered during excavation — another reason upfront geotechnical investigation is a cost-effective step.

How do Seismic Design Category D requirements affect detached ADU foundation work in the Bay Area?

Most of the Bay Area falls within Seismic Design Category D, which imposes specific requirements on anchor bolt sizing, spacing, and mudsill connections for all foundation types. Raised foundations must include engineered hold-downs at shear wall boundary studs. Slab foundations require embedded anchor bolts at prescribed intervals. These requirements are enforced at the structural frame inspection and cannot be field-retrofitted after the framing is complete.

Is a raised crawl space foundation always more expensive than a slab on a hillside lot?

On a sloped lot, a slab often becomes the more expensive option because creating a level bearing surface requires significant cut-and-fill earthwork or retaining wall construction. The crawl space stem wall system accommodates grade change economically without requiring complete site regrading. The cost crossover point typically occurs at grade differentials above five inches across the building footprint — below that threshold, slab work remains competitive.

Next Steps

  1. Commission a geotechnical investigation on the ADU site before committing to any foundation type — specify two to three borings and request an expansion potential test on all cohesive soil samples to classify clay reactivity.
  2. Pull the current zoning, grading, and hazard maps from the local building department to identify any mapped liquefaction, landslide, or fault setback zones that constrain foundation system options before the design phase begins.
  3. Engage a licensed foundation contractor for a site walk with the geotechnical report in hand, and confirm that the proposed foundation type aligns with both the soils engineer's recommendations and the structural engineer's framing assumptions.
  4. Coordinate all utility stub locations — water supply, sewer lateral, gas service, and electrical conduit — with the foundation forming plan before any excavation begins, particularly where the ADU will share a service lateral with the primary dwelling.
  5. Schedule concrete and special inspections through the local building department at least five to seven business days before the planned pour date — Bay Area inspection queues fill quickly, and an unscheduled pour that cannot be inspected on time will delay the project.
