Geotechnical Report Requirements for Small Commercial Buildings in the Bay Area

Every geotechnical report for a commercial building in the Bay Area establishes the scientific foundation that engineers, building officials, and contractors rely on before construction begins. The California Building Code and Bay Area jurisdictions require a licensed geotechnical engineer — a professional who studies soil, rock, and groundwater behavior — to evaluate subsurface conditions and submit a formal report alongside permit applications. Property owners pursuing a commercial building foundation must treat this report as a non-negotiable first step, not a formality handled at the last minute.

Small commercial buildings — generally structures under three stories or beneath 10,000 square feet — face the same level of geotechnical scrutiny as large-scale developments. The Bay Area's seismically active environment, expansive clay deposits, and variable groundwater levels make thorough site investigation especially critical in this region. A well-executed report protects owners from mid-construction surprises, reduces structural engineering revisions, and provides the documentation that city building departments and project lenders require before a permit moves forward.

Understanding report requirements, typical investigation scopes, and how findings inform structural design decisions saves time and money throughout the permitting and construction phases. The sections below address every stage of the geotechnical process, from initial budget planning through long-term site monitoring after a project is complete.

What a Geotechnical Site Investigation Actually Costs

Budget planning begins with a realistic understanding of geotechnical fees, which vary based on site complexity, number of borings, and laboratory testing requirements. For a small commercial building in the Bay Area, investigation costs generally range from $5,000 to $25,000, with most straightforward projects falling between $8,000 and $15,000. Sites with known problem conditions — bay mud, fill material, or proximity to fault zones — push costs toward the higher end of that range and sometimes beyond it.

Field Investigation Expenses

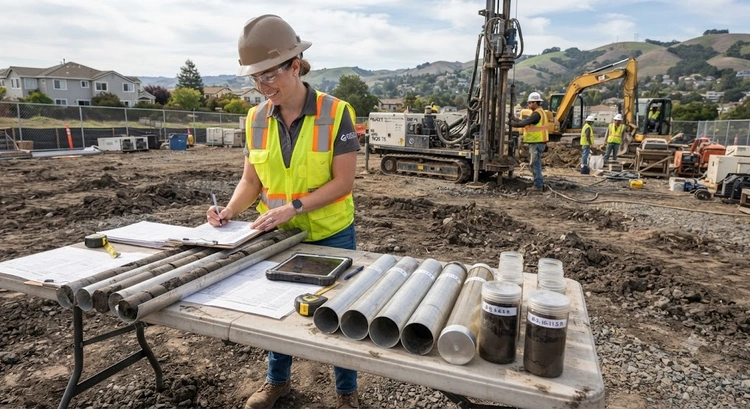

The field phase includes equipment mobilization, drilling or test-pit excavation, soil sampling, and on-site observation time. A standard small commercial project typically requires two to four soil borings drilled to depths of 20 to 50 feet, depending on anticipated foundation loads and depth to competent bearing material (firm soil or rock capable of supporting the structure). Mobilization fees for drilling equipment alone often represent $1,500 to $3,000 of the total cost, regardless of project size.

Laboratory Testing and Report Preparation

After field work concludes, collected samples travel to a certified geotechnical laboratory for analysis. Tests commonly performed on Bay Area samples include grain-size analysis, Atterberg limits testing (which measures how plastically a soil behaves with changing moisture), consolidation testing, and shear-strength evaluation. Report preparation — synthesizing field data, laboratory results, and engineering recommendations — typically accounts for 30 to 40 percent of the total fee. The finished report includes foundation type recommendations, allowable bearing pressures, lateral earth pressures, and seismic design parameters required by the California Building Code.

Practical Strategies to Streamline the Geotechnical Investigation

Experienced owners reduce delays and cost overruns by preparing thoroughly before the geotechnical firm mobilizes to the site. Gathering existing data — prior boring logs, utility maps, topographic surveys, and any available environmental reports — allows the geotechnical engineer to design a targeted investigation scope rather than a generic one. Many Bay Area cities maintain historical boring logs in their public works databases, which can inform boring locations and anticipated depths before a single dollar is spent on fieldwork.

Pro tip: Providing the geotechnical engineer with a preliminary architectural site plan before fieldwork begins allows boring locations to be placed directly beneath proposed column and wall lines, which produces the most relevant bearing capacity data for the structural design team.

Coordinating Geotechnical and Structural Scopes

One of the most effective strategies for a smooth project is scheduling the geotechnical engineer and the structural engineer to communicate directly, rather than having the owner relay information between firms. The structural engineer's preliminary load estimates guide the geotechnical firm's testing scope, while geotechnical findings shape the structural engineer's foundation selection. This coordination, established early in pre-design, prevents the costly scenario of receiving a geotechnical report that does not address the foundation system the structural engineer intended to specify.

Scheduling Around Seasonal Conditions

Bay Area soil conditions fluctuate seasonally. Wet-season drilling from November through April can be more difficult in fine-grained soils, and standing water in test pits creates both safety concerns and data-quality problems. Scheduling fieldwork during drier months, when the project timeline permits, produces cleaner samples and more efficient drilling operations. Experienced geotechnical firms account for seasonal variability in their proposals and adjust sampling methods accordingly when constrained schedules leave no alternative.

First-Time Owners Versus Experienced Developers: Key Differences

First-time commercial owners often underestimate the geotechnical report's role in the broader project schedule. Many assume the report is a one-time deliverable that disappears into the permit package and is never referenced again. In reality, the geotechnical report drives foundation type selection, concrete mix design, retaining wall specifications, and grading requirements — documents that every trade contractor references throughout construction. First-time owners benefit most from a pre-investigation meeting with the geotechnical firm to understand exactly how report output will be applied downstream.

What Experienced Developers Do Differently

Experienced developers treat the geotechnical report as a living reference document rather than a permit checkbox. They share the report with their general contractor at bidding, flag sections relevant to earthwork and foundation installation, and request that the geotechnical firm remain available for construction observation — on-site monitoring during active foundation work. Construction observation, while an additional expense, reduces disputes between the contractor and design team when field conditions differ from report predictions, which occurs more frequently on Bay Area urban infill sites than owners typically expect.

When Supplemental Investigation Is Warranted

First-time owners often discover mid-project that the original investigation scope was insufficient for a design change, such as adding a basement level or shifting the building footprint closer to a property line. Experienced developers anticipate this possibility and negotiate a supplemental boring allowance into the original contract, giving the geotechnical firm authority to add borings during fieldwork if unexpected conditions arise. This small contractual provision prevents a weeks-long delay waiting for a separate contract amendment while the structural design team sits idle and the project schedule erodes.

Commissioning a Geotechnical Report for a Commercial Building in the Bay Area

The process of obtaining a geotechnical report for a commercial building in the Bay Area follows a predictable sequence, and owners who understand each step avoid the most common scheduling failures. The process begins well before permit submission and ends with formal acceptance of the report by the local building department's plan review staff.

Step 1: Select a Licensed Geotechnical Engineer

California requires geotechnical engineers to hold a Professional Engineer (PE) license with recognized geotechnical competency. Many Bay Area jurisdictions also maintain lists of pre-approved firms or require that reports be stamped by engineers familiar with local geology and active fault systems. The California Geological Survey publishes seismic hazard zone maps and fault data that licensed engineers incorporate into Bay Area commercial geotechnical reports. Confirming with the local building department before selecting a firm prevents the expensive mistake of receiving a report the jurisdiction refuses to accept.

Step 2: Define the Scope of Investigation

The geotechnical firm issues a written scope of work specifying the number and depth of borings, laboratory tests to be performed, and the format of the final report. For small commercial buildings, most Bay Area jurisdictions expect the scope to address bearing capacity, settlement potential, expansive soil risk (since many Bay Area clays expand and shrink with moisture changes), liquefaction susceptibility (the tendency of saturated sandy soils to lose strength during an earthquake), and seismic site classification per the California Building Code. Owners should confirm that the proposed scope addresses all of these items before authorizing fieldwork. Reviewing how soil testing shapes foundation design decisions provides useful background context for evaluating the scope before signing a contract.

Step 3: Submit and Respond to Plan Check Comments

After the structural engineer incorporates geotechnical findings into the foundation drawings, both the structural plans and the geotechnical report are submitted to the building department for plan check (the formal permit review process). Plan checkers frequently issue comments requesting clarification of specific geotechnical parameters or confirmation that the proposed foundation design aligns with report recommendations. Prompt, written responses from the geotechnical engineer of record resolve most comments within one or two review cycles, keeping the permit timeline on track.

Addressing Problem Soils Before They Stall Construction

Bay Area geology presents a predictable set of challenges that a thorough geotechnical report must address directly. San Francisco Bay mud — a soft, compressible marine deposit found beneath much of the South Bay and East Bay lowlands — can cause significant long-term settlement if the foundation design does not account for it explicitly. Expansive clays, common across the East Bay hills and parts of the Peninsula, generate upward pressure on slabs and footings during wet seasons. Fill material, found on many urban infill sites, requires careful evaluation to determine whether it can support structural loads or must be removed and replaced with engineered fill.

Warning: Sites within Seismic Hazard Zones designated by the California Geological Survey require a formal liquefaction or landslide hazard evaluation included in the geotechnical report — no commercial permit can be issued without it.

Mitigation Options the Report Should Address

A thorough geotechnical report does not merely identify problems — it recommends specific mitigation strategies suited to actual site conditions. Common recommendations include deep foundation systems such as drilled piers or driven piles that bypass poor near-surface soils, ground improvement techniques such as compaction grouting or soil mixing, and over-excavation with replacement using engineered fill (compacted, tested material with known engineering properties). Owners who understand these options in advance can discuss preliminary cost implications with their structural engineer before the report arrives, allowing faster design decisions once findings are in hand. A review of commercial foundation types used in Bay Area projects helps owners evaluate geotechnical recommendations with greater confidence.

Best Practices for Integrating Report Findings Into Structural Design

The geotechnical report's value depends entirely on how effectively the structural engineer and contractor use its recommendations. Best practice begins with a formal hand-off meeting between the geotechnical engineer and the structural engineer, where key parameters — allowable bearing pressure, lateral earth pressure coefficients, and seismic site class — are reviewed together and questions are resolved before design work progresses. This meeting, typically lasting less than one hour, prevents months of downstream confusion and design revision.

Documenting Special Inspections

California requires Special Inspections — third-party verification by a qualified inspector separate from city inspectors — for many foundation elements in commercial construction. The geotechnical report typically identifies which elements require special inspection, such as drilled piers, compacted fill, or post-installed anchors. The structural engineer incorporates these requirements into the Statement of Special Inspections submitted with the permit application. Owners who plan for special inspection costs at the outset of the project avoid budget surprises that can delay construction authorization.

Maintaining a Copy Throughout Construction

The geotechnical report should remain accessible on the job site throughout construction, available to the contractor's superintendent, the special inspector, and the geotechnical engineer of record during observation visits. When field conditions differ from report predictions — which occurs on a meaningful percentage of Bay Area urban infill sites — the geotechnical engineer can review actual conditions against the original baseline and issue a written field directive that protects all parties. This practice is standard on professionally managed projects and requires no additional cost beyond keeping the document present and organized on site.

Immediate Actions That Speed Up Permit Approval

Several straightforward actions taken early in the project dramatically reduce permit processing time. Submitting the geotechnical report as part of the initial permit application package — rather than as a deferred submittal — allows the plan checker to review structural and geotechnical documents simultaneously, eliminating at least one review cycle. Many Bay Area building departments also offer pre-application meetings where the project team can confirm exact submittal requirements with plan check staff before investing in complete construction drawings, preventing costly resubmittals.

Confirming Peer Review Requirements Early

Some Bay Area jurisdictions — including San Francisco, Oakland, and several Peninsula cities — require independent peer review of geotechnical reports for commercial projects above certain size or complexity thresholds. Confirming peer review requirements before selecting a geotechnical firm allows the owner to build peer review fees and the associated timeline into the project schedule from the start. Surprises related to peer review requirements are among the most common causes of permit delays on small commercial projects throughout the Bay Area, and they are entirely avoidable with a single early inquiry to the building department.

Planning Beyond Permit: Long-Term Site Monitoring and Maintenance

The geotechnical report's utility extends well beyond the permit counter. On sites with compressible soils or areas of known settlement risk, geotechnical engineers recommend installing survey monuments — physical markers embedded in the structure — to allow periodic settlement monitoring after construction is complete. This data proves valuable if settlement-related claims arise years later, since it provides a documented baseline against which observed conditions can be objectively measured and evaluated by engineers or legal counsel.

When to Commission a Follow-Up Investigation

If a commercial building is later expanded, converted to a heavier occupancy load, or if adjacent construction affects subsurface conditions at the site, a supplemental geotechnical investigation may be required by the jurisdiction or requested by the structural engineer. The original report's boring logs, laboratory data, and engineering parameters serve as a valuable baseline even if surface or subsurface conditions have changed over time. Retaining the original geotechnical firm for follow-up work is advisable, since institutional familiarity with the site reduces mobilization costs and accelerates the investigation process for any subsequent project phase.

Frequently Asked Questions

Final Thoughts

A geotechnical report for a commercial building in the Bay Area is the single document that makes every downstream design and construction decision more reliable and defensible. Owners who commission a thorough investigation early, ensure that geotechnical and structural engineers communicate directly, and treat the report as an active site reference throughout construction complete their projects with fewer surprises, stronger permit outcomes, and greater protection from future liability. Pro Home Foundation's team works alongside qualified geotechnical engineers on Bay Area commercial foundation projects of all sizes — reach out today to discuss how site investigation findings will shape the foundation design for the next project.
