Approximately 80 percent of all concrete flatwork failures originate from a single preventable cause: incorrect control joint spacing in concrete flatwork established before the pour begins. If you are planning a driveway, patio, walkway, or garage slab in the Bay Area, the placement and spacing of control joints determines whether your surface endures decades of use or fractures within the first few wet seasons. Pro Home Foundation's concrete flatwork and driveway services are built around this principle, because getting the joint grid right from day one costs far less than repairing uncontrolled cracks after the fact.

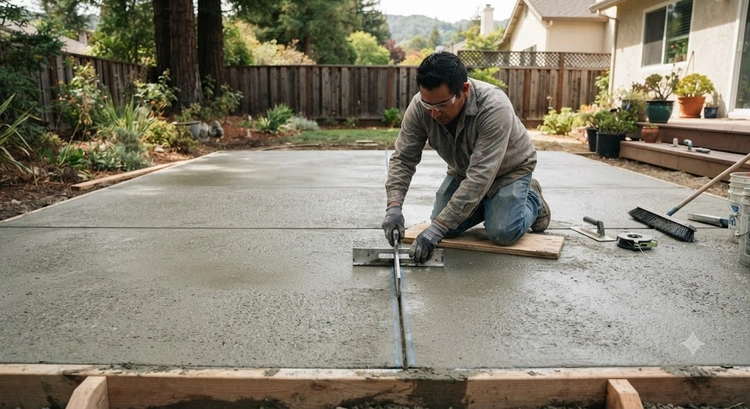

Control joint spacing in concrete flatwork driveway Bay Area residential project
Figure 1 — Properly spaced control joints in a Bay Area residential concrete driveway prevent uncontrolled surface cracking across the slab field.

Bay Area conditions create an unusually demanding environment for concrete slabs. Expansive clay soils, significant seasonal moisture swings, and seismic ground movement combine to exert stresses that exceed what contractors encounter in drier, more geologically stable regions. The relationship between Bay Area clay soil and concrete cracking is well-documented, and it means you cannot apply national spacing guidelines without accounting for local subgrade conditions.

Control joints function by introducing a deliberate weak plane into the slab, guiding shrinkage cracks to form where you intend them rather than where they cause the greatest damage. Without a proper joint grid, thermal expansion, moisture loss, and subgrade movement accumulate until the concrete fractures across the surface in unpredictable patterns. The sections below explain the standard rules, the errors that undermine them, and the regional adjustments that protect your investment.

Chart comparing control joint spacing recommendations by slab thickness for Bay Area concrete flatwork
Figure 2 — Recommended control joint spacing by slab thickness, based on ACI 360R guidelines adjusted for Bay Area subgrade conditions.

Control Joint Spacing Mistakes in Concrete Flatwork That Lead to Premature Cracking

Oversized Panels and What They Cost You

The foundational rule for control joint spacing in concrete flatwork comes from the American Concrete Institute: space joints no farther than 24 to 30 times the slab thickness in inches, converted to feet. For a standard 4-inch residential slab, that yields a maximum panel dimension of 8 to 10 feet in both directions. When you exceed this threshold, shrinkage forces build across a surface area that exceeds the concrete's tensile capacity, and an uncontrolled crack forms — almost always in the center of the panel where it is most visible and structurally disruptive.

The most frequent errors contractors make in this area include:

  • Setting joint spacing based on visual symmetry rather than engineering ratios, producing panels that look balanced on a sketch but measure 12 to 15 feet across
  • Failing to address re-entrant corners at garage cutouts or step landings, where stress concentrations form regardless of overall panel size
  • Skipping control joints on narrow walkways under the assumption that small slabs will not crack — they will
  • Applying a single spacing dimension to rectangular slabs with aspect ratios greater than 1.5 to 1, which concentrates tensile stress along the long axis

Omitting Slab Thickness From Your Calculations

Slab thickness anchors every spacing decision, yet many contractors treat it as secondary. A 6-inch slab supports maximum panel dimensions of 12 to 15 feet; a 4-inch slab requires joints at 8 to 10 feet. When slab thickness varies across a project without a corresponding adjustment to the joint grid, cracking is predictable. Driveway aprons that thicken to 6 inches at the street while the field remains 4 inches require two distinct spacing regimes — not a single uniform grid applied across the entire pour.

Pro Insight: Re-entrant corners at garage entries and step cutouts require a diagonal joint cut from the inside corner outward at 45 degrees — overlooking this single detail causes more driveway cracks than any panel-size error.

Bay Area Projects That Illustrate the Stakes

Residential Driveway Failures in Clay-Heavy Neighborhoods

In neighborhoods underlain by expansive Hm and Los Banos clay soils — widespread across Fremont, San Jose, and Concord — concrete driveways installed without adequate joint spacing routinely crack within two to three rainy seasons. The clay expands during the wet season and contracts sharply during summer drought, exerting cyclic lateral pressure across the slab's underside. When panel dimensions run 12 feet or wider, this movement carries enough leverage to fracture a standard 4-inch slab along lines of its own choosing. Understanding why subgrade conditions drive so many structural decisions in this region is central to choosing the right foundation system for Bay Area construction and applies equally to flatwork design.

Commercial Flatwork That Gets Joint Placement Right

Commercial projects in the Bay Area — warehouse floors, retail parking aprons, and multi-family common areas — demonstrate what disciplined joint placement achieves. A well-executed commercial slab incorporates:

  • Panel grids sized to 10 feet by 10 feet or smaller for standard 4-inch slabs
  • Isolation joints at all column bases, walls, and drain locations to prevent restraint cracking
  • Saw cuts completed within six to twelve hours of the finishing pass, before random cracking initiates
  • Epoxy joint filler in high-traffic zones to prevent edge spalling from repeated vehicle loads

These practices reflect the fundamental material science of concrete — a material strong in compression but weak in tension, requiring deliberate design to manage its inevitable shrinkage. If you are navigating local approvals for a flatwork project, our guide to concrete driveway permit requirements in San Jose outlines what the city requires before work can begin.

Sawed Versus Tooled Control Joints: Weighing the Trade-Offs

The Case for Saw-Cut Joints

Saw-cut joints represent the professional standard for most Bay Area flatwork applications. A diamond-blade saw creates a groove to a depth of one-quarter to one-third the slab thickness — typically 1 to 1.5 inches for a 4-inch slab — producing a precise, clean weak plane. The primary advantage is timing control: you execute the cut after the concrete has hardened sufficiently to resist raveling but before random cracking initiates, a window that typically spans four to twelve hours depending on temperature and mix design.

When Tooled Joints Make Sense

Tooled joints — formed with a hand groover during the finishing pass — require no additional equipment and suit smaller residential walkways and patios where the joint pattern is simple and slab thickness does not exceed 3 inches. Their limitation is depth: a hand groover rarely achieves penetration beyond three-quarters of an inch, which is insufficient for joints in thicker slabs. You should not rely on tooled joints alone for driveways, garage floors, or any slab exceeding 3 inches in thickness.

Method Depth Achieved Best Application Primary Limitation
Saw Cut (early entry) 1/4 to 1/3 slab thickness Driveways, garage floors, commercial slabs Requires saw and precise timing
Tooled (hand groover) Up to 3/4 inch Walkways and patios 3 inches or thinner Insufficient for thicker slabs
Plastic Insert (Zip Strip) Full groove depth Cold-weather pours with uncertain saw timing Less clean appearance; can trap debris

Tools and Materials for Accurate Joint Installation

Cutting Equipment Options

Selecting the right cutting tool directly affects joint quality and your ability to meet the critical timing window. The equipment most commonly used in Bay Area flatwork operations includes:

  • Early-entry dry-cut saws — lightweight machines with skid plates that allow cutting as soon as one to four hours after finishing, reducing raveling risk on fresh concrete edges
  • Conventional wet-cut diamond blade saws — used for deeper cuts on thicker commercial slabs, typically started four to twelve hours after the pour
  • Hand groovers and jointing tools — appropriate for walkway projects and small patios where tooled joints are sufficient
  • Chalk lines and layout squares — essential for maintaining straight, geometrically consistent joint lines across large slab areas before cutting begins

Joint Fillers and Sealants

An unsealed control joint is only half the job. Once the joint has opened — typically after the concrete has cured for a minimum of 28 days — you should fill it with a semi-rigid polyurea or polyurethane sealant to prevent water infiltration, debris accumulation, and edge spalling. In Bay Area climates where heavy winter rains follow prolonged summer drought, unsealed joints allow water to penetrate and soften the subbase, accelerating the differential settlement you were working to prevent. Epoxy fillers suit joints that carry heavy vehicle loads; flexible sealants work well for pedestrian areas and residential driveways.

When to Follow Standard Spacing and When to Tighten the Grid

Conditions That Require Closer Spacing

ACI spacing guidelines assume reasonably uniform subgrade conditions, average aggregate size, and moderate temperatures during placement. In the Bay Area, several conditions require you to tighten the joint grid below the standard formula:

  • Expansive clay subgrade — reduce maximum panel dimensions by 15 to 20 percent below the calculated value
  • High water-to-cement ratios resulting from warm-season pours where the mix slumps on the way to the site
  • Fiber-reinforced concrete mixes, which control plastic shrinkage cracks but do not replace the need for control joints in the hardened slab
  • Slabs placed adjacent to existing structures where differential movement is likely, a condition common to addition and ADU projects

Situations Where Standard Rules Hold

You can apply standard ACI spacing with confidence when your subgrade is well-compacted engineered fill, your mix arrives at appropriate slump (4 inches or less for driveways), and ambient temperatures remain between 50 and 85 degrees Fahrenheit during placement and initial cure. Under these conditions, the 24-to-30 times thickness rule delivers reliable crack control without further adjustment. Projects on competent native soils in elevated Bay Area neighborhoods — portions of the East Bay hills and the Santa Cruz foothills — often qualify for standard spacing without the reductions required on valley-floor clay sites.

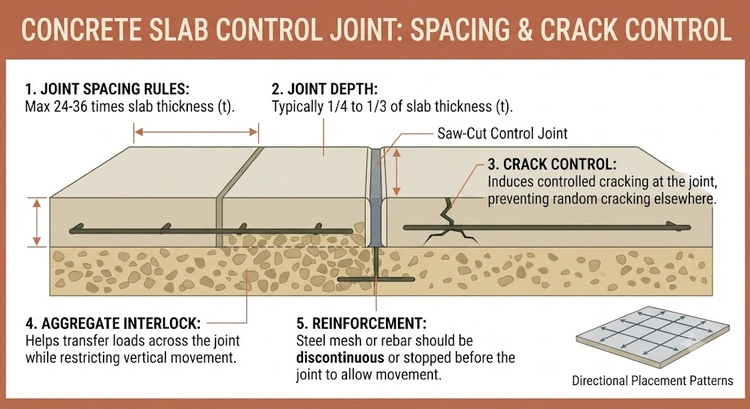

Infographic summarizing control joint spacing rules and installation methods for Bay Area concrete flatwork projects
Figure 3 — Control joint spacing rules and installation methods summarized for Bay Area concrete flatwork by slab type and subgrade condition.

Frequently Asked Questions

What is the standard control joint spacing for a 4-inch concrete driveway?

For a 4-inch slab, the American Concrete Institute recommends a maximum joint spacing of 8 to 10 feet in both directions, derived from the 24-to-30 times slab thickness formula. Bay Area projects on expansive clay soils should use the lower end of this range — 8 feet or less — to account for subgrade movement across wet and dry seasons.

How deep must a control joint be cut to function correctly?

A control joint must penetrate to at least one-quarter of the slab thickness to create an effective weak plane. For a 4-inch slab, that means a minimum cut depth of 1 inch. Shallower grooves will not consistently direct shrinkage cracking into the joint and may leave the slab vulnerable to random surface fractures.

How soon after the pour should control joints be cut?

Saw-cut joints should be completed within four to twelve hours of the finishing pass, depending on temperature, humidity, and mix design. In hot Bay Area summers, the window closes faster — sometimes within three to four hours. Early-entry saws allow cutting to begin as soon as one to two hours after finishing, providing the widest margin of safety.

Do control joints eliminate cracking entirely?

Control joints do not eliminate cracking; they direct where cracking occurs. By creating deliberate weak planes at regular intervals, they ensure that shrinkage cracks form inside the joint groove rather than across the visible slab surface. The result is planned, predictable cracking that does not compromise structural performance or visual quality.

Are control joints required by code for Bay Area residential flatwork?

Building codes typically reference ACI standards rather than specifying joint spacing directly, but Bay Area municipalities expect flatwork to comply with industry guidelines. San Jose's permit review process, for example, evaluates driveway designs against recognized construction standards. Omitting control joints on a permitted project risks a failed inspection and required remediation.

What is the difference between a control joint and an expansion joint?

A control joint is a partial-depth groove that guides shrinkage cracking to a planned location within a slab. An expansion joint is a full-depth separation filled with compressible material, designed to accommodate thermal expansion between two independent concrete sections or between concrete and an adjacent structure. Both are necessary in a complete flatwork design, but they address different forces.

Should control joints be sealed after the concrete cures?

Yes. Sealing control joints after the concrete has cured for at least 28 days prevents water infiltration, subbase erosion, and edge spalling. In the Bay Area's wet winters, unsealed joints allow rainwater to saturate and soften clay subgrades beneath the slab, accelerating differential settlement and widening surface cracks over successive seasonal cycles.

How does Bay Area clay soil specifically affect joint spacing decisions?

Expansive clay soils exert cyclic lateral pressure on concrete slabs as they absorb moisture in winter and release it in summer. This movement increases tensile stress across slab panels beyond what standard formulas anticipate, requiring you to reduce panel dimensions by 15 to 20 percent below the ACI baseline to compensate for subgrade-induced stress concentrations.

Final Thoughts

Proper control joint spacing in concrete flatwork is not a finishing detail — it is a foundational engineering decision that determines whether your Bay Area slab performs for decades or begins deteriorating within seasons. If you are ready to plan a driveway, patio, or flatwork project with the correct joint layout from the start, contact Pro Home Foundation today for a professional site assessment that accounts for your soil conditions, slab thickness requirements, and the specific demands of Bay Area construction.
