When our crew was laying out a 4,000-square-foot retail shell in Fremont last spring, the structural engineer called a site meeting before the first shovel broke ground, and the entire conversation centered on one question: spread footings or mat slab? The spread footing vs mat slab commercial foundation decision shapes everything from concrete volume and excavation scope to long-term settlement risk, and our team at Pro Home Foundation has worked through this exact choice on dozens of commercial foundation projects across the Bay Area.

Spread footing vs mat slab commercial foundation comparison for small commercial buildings

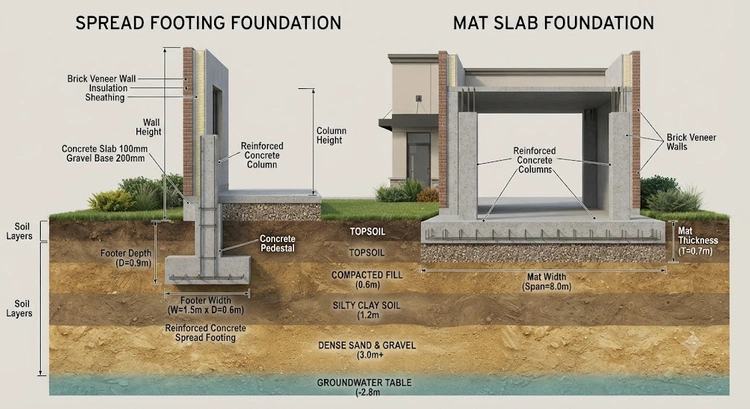

Figure 1 — Isolated spread footings distribute column loads to discrete soil zones while a mat slab spreads the entire building load across a continuous reinforced raft.

Small commercial buildings — retail pads, medical offices, light industrial shells, small mixed-use structures — typically fall in the 2,000- to 15,000-square-foot range, and their foundation loads are modest enough that both systems are genuinely on the table. The choice hinges on soil bearing capacity, column spacing, settlement tolerance, and project budget, and our engineers weigh all four factors before committing to a system. Understanding the structural logic behind each option makes the design conversation faster and the construction sequence more predictable for everyone involved.

What follows is how our team thinks through the spread footing vs mat slab commercial foundation decision, drawn from real Bay Area projects on clay, fill, and mixed-bearing soils.

The Structural Role Each Foundation Type Plays

Both systems belong to the shallow foundation family, meaning they transfer building loads to competent soil within a few feet of grade rather than driving piles to deeper bearing strata. Beyond that shared classification, they operate in fundamentally different ways, and understanding that mechanical difference is the foundation — so to speak — of every design decision that follows.

How Spread Footings Work

  • Individual pad footings sit beneath each column, sized so the bearing pressure stays within the soil's allowable capacity at that discrete location.
  • Continuous strip footings run beneath load-bearing walls, distributing linear loads across a long, narrow soil interface.
  • Isolated footings allow each column to move somewhat independently, which means differential settlement between adjacent columns is a genuine design concern on variable soils.
  • Spread footings perform best on sites with uniform, high-bearing-capacity soils where each pad can carry its column load without the required area overlapping neighboring pads.

How Mat Slabs Work

  • A heavily reinforced concrete raft covers the entire building footprint, distributing all column and wall loads across a single continuous structural element.
  • The rigid mat redistributes uneven loads and resists differential settlement by behaving as a structural plate spanning between and beyond each column location.
  • Mat slabs perform especially well on weak or variable soils where isolated footings would require impractical pad sizes to remain within allowable bearing pressure limits.
  • The continuous structure also serves as the finished floor slab simultaneously, reducing the total number of concrete pours on the project schedule.

How Our Team Evaluates Which System Fits a Given Site

Our evaluation follows a repeatable sequence on every commercial project, and skipping any step in that process tends to produce expensive surprises during permitting or construction.

Starting With the Geotechnical Report

A thorough geotechnical investigation is non-negotiable before specifying either foundation type, and our experience with geotechnical report requirements for small commercial buildings in the Bay Area confirms that soil data almost always narrows the foundation decision before any structural calculations even begin.

  1. Order borings to the depth of influence — typically 1.5 to 2 times the mat width for mat slabs, or three footing widths below grade for isolated pads.
  2. Confirm allowable bearing capacity, consolidation characteristics, and groundwater depth from the geotechnical engineer's written report.
  3. Flag any liquefiable soil layers, expansive clay deposits, or soft organic lenses that would disqualify a shallow foundation system entirely.
  4. Use the reported modulus of subgrade reaction to inform mat slab thickness and two-way reinforcement design.

Column Loads and Spacing Analysis

  • Calculate the required pad area for each isolated footing using the formula: pad area equals column load divided by allowable bearing pressure.
  • When individual pad areas begin to overlap on the layout drawing, the mat slab becomes structurally and economically superior — that overlap threshold is the clearest signal our engineers watch for on any project.
  • Wide column spacing at 15 feet or more on strong soil favors spread footings; tight grids on weak soil favor the mat every time.
Pro insight: When isolated footing pads begin to overlap on the structural layout, stop the spread footing design immediately — a mat slab will cost less and perform better on that site.

Engineering and Construction Best Practices for Both Systems

Spread Footing Execution

  • Set footing depth at or below frost depth and at a minimum of 12 inches into undisturbed, competent native soil — never into uncontrolled fill without special compaction documentation and geotechnical sign-off.
  • Size each pad individually based on its tributary column load rather than applying a single generic dimension across the entire project.
  • Install grade beams between isolated footings when the structural frame requires lateral continuity or when the slab-on-grade must be structurally isolated from the foundation pads.
  • Never place concrete against loose or disturbed subgrade — compact or re-excavate to native bearing material before the pour, and document the condition for the inspector.
  • Specify minimum 3,000 psi concrete and follow ACI 318 cover requirements for all reinforcing steel in footing elements.

Mat Slab Execution

  • Thicken the slab at column locations to handle punching shear, which is the governing failure mode for mat foundations under concentrated column loads.
  • Place a capillary break — typically four inches of clean crushed aggregate — beneath the mat to control moisture vapor transmission through the finished slab surface.
  • Pour the mat in a single continuous operation where feasible; cold joints in a structural mat introduce differential stiffness that can propagate cracking through finish floors over time.
  • Cure the mat for a minimum of seven days under wet burlap or a liquid curing compound before applying any superstructure loads above.

Long-Term Performance and Lifecycle Costs

The foundation decision made at the design phase determines maintenance costs and renovation flexibility for the full life of the building, and our team thinks through these long-term implications on every commercial project we price and build.

Factor Spread Footings Mat Slab
Differential settlement risk Higher on variable soils Lower — mat redistributes load
Concrete volume Lower (discrete pads) Higher (full footprint coverage)
Formwork complexity Moderate (individual pad forms) Low (flat slab form with thickened zones)
Minimum soil bearing capacity 2,000+ psf recommended 1,000–2,000 psf acceptable
Seismic performance Good with continuous grade beams Excellent — monolithic behavior
Future utility penetration Easier between isolated footings Requires core drilling through slab
Typical concrete cost premium Baseline 15–35% more concrete material cost

On Bay Area projects, the seismic performance row in that table carries extra weight, since the region's ground motion demands make monolithic foundation behavior a genuine structural advantage over independent isolated pads. Our team also factors in liquefaction risk on every Bay Area commercial project, and the full picture of how ground behavior under seismic shaking shifts the spread footing vs mat slab commercial foundation decision is covered in our detailed guide on how liquefaction zones affect commercial foundation design in the Bay Area.

Comparison diagram showing spread footing vs mat slab commercial foundation systems side by side
Figure 2 — Side-by-side comparison of isolated spread footing layout and continuous mat slab reinforcement plan for a small commercial building footprint.

Design Decisions That Save Time and Budget Early

Several decisions made in the first two weeks of design can materially reduce both construction cost and schedule on commercial foundation projects, and our team has learned most of these lessons the hard way on past jobs.

  • Standardize footing sizes wherever structural loads permit — a project with 12 isolated footings at two pad dimensions is faster and cheaper to form than one with eight unique sizes across the layout.
  • Specify the mat slab as the structural finish floor when floor flatness tolerances are compatible with the intended tenant use, eliminating a separate slab pour and curing cycle from the schedule.
  • Align column grids with the geotechnical engineer's recommended footing spacing before submitting for permit, avoiding costly redesign cycles during plan review.
  • Sequence concrete pours to match crane or telehandler availability on site, since mat slabs poured in separate sessions during equipment downtime add unnecessary cold joints and structural discontinuities.
  • Resolve all underground utility conflicts on the structural drawings before excavation begins, because utility trenches cut through compacted subgrade after a footing inspection require re-inspection and add days to the critical path.
Warning: Changing from spread footings to a mat slab after permit submission typically triggers a plan recheck cycle of four to eight weeks in most Bay Area jurisdictions — lock in the foundation type before the first submittal.

Persistent Myths About Commercial Foundation Selection

Myth: Mat Slabs Always Cost More

The concrete volume in a mat slab is higher, but the total installed cost frequently lands within 10% of a spread footing system on the same project when formwork labor, multiple inspection trips, and extended schedule duration are factored together. On weak soils requiring oversized isolated pads, the mat slab often costs less overall because the continuous structural element is simply more efficient per unit of load transferred to the soil below.

Myth: Any Soil Can Support Spread Footings If the Pads Are Large Enough

Enlarging a footing pad increases the bearing area but does not eliminate differential settlement risk on compressible or variable soils — in fact, oversized pads can worsen long-term consolidation settlement by engaging a deeper and larger soil volume than discrete smaller pads would. When soil bearing capacity falls below roughly 1,500 psf, the mat slab or a deep foundation system is almost always the correct engineering answer, and our team does not deviate from that threshold regardless of schedule pressure.

Myth: Foundation Type Has Little Impact on Seismic Performance

The foundation system is a critical link in the seismic load path, and isolated footings without continuous grade beams can rock independently under lateral ground motion — a behavior that damages column bases and floor slabs in even moderate seismic events. Our team specifies continuous grade beams between all isolated footings on commercial projects in Seismic Design Category D and higher, which adds concrete cost but is non-negotiable for life-safety performance in the Bay Area's seismic environment.

When a Foundation System Shows Early Signs of Trouble

Recognizing distress patterns early allows for remediation before structural integrity is compromised, and our team has assessed dozens of small commercial buildings where foundation problems were misread or quietly ignored in their early stages.

Spread Footing Distress Patterns

  • Diagonal cracking at window and door corners is the classic indicator of differential settlement developing between adjacent column footings on variable soil.
  • Uneven floor gaps at interior partition bases, particularly when the gap widens or narrows along the length of a single wall, signal that footings are moving independently.
  • Column base plate separation from the slab or grout pad, visible as a hairline gap or rust staining at anchor bolt zones, indicates footing rotation or settlement exceeding design tolerances.
  • Sticking doors along one side of the building while the opposite side operates freely indicates the structure is racking on an unlevel foundation plane beneath the floor.

Mat Slab Distress Patterns

  • Mid-slab cracking in a map or random shrinkage pattern often points to inadequate curing rather than structural failure, but any cracking concentrated near column zones warrants prompt engineering review.
  • Edge curl along the mat perimeter occurs when slab edges dry faster than the interior, causing upward deflection that can unseat perimeter wall framing and door frames over time.
  • Moisture intrusion through the slab surface — evidenced by efflorescence, damp spots, or finish flooring adhesive failure — typically means the vapor barrier or capillary break was compromised during construction.

Frequently Asked Questions

What is the primary difference between spread footings and a mat slab foundation for a small commercial building?

Spread footings are discrete reinforced concrete pads placed beneath individual columns or walls, transferring concentrated loads to the soil at separate points across the footprint. A mat slab is a single continuous reinforced concrete raft covering the entire building footprint, distributing all loads simultaneously and resisting differential settlement through its monolithic structural behavior.

Which foundation type performs better on Bay Area expansive clay soils?

On Bay Area expansive clay, our team generally favors the mat slab because the continuous element resists the uneven heave and shrink cycles that cause isolated footings to move independently and crack the structure above. The mat's rigidity spreads the movement across the entire building plane rather than concentrating it at individual pad locations, which is the failure pattern that produces visible door and window distress in clay-soil buildings.

How thick does a mat slab need to be for a typical small commercial building?

For small commercial buildings with modest column loads, mat slabs typically range from 12 to 24 inches thick, with the governing dimension set by punching shear requirements at column locations rather than flexural demand across the mid-span zones. The geotechnical and structural engineer determine the final thickness together based on column loads, modulus of subgrade reaction, and the required reinforcement layout.

Can spread footings and a mat slab be combined on the same commercial project?

Combined systems exist in specialized applications — for example, a mat slab beneath a heavily loaded equipment room combined with spread footings under a lightly loaded storage wing — but our team avoids hybrid approaches on small commercial projects because the differential stiffness between the two foundation zones creates unpredictable settlement behavior at the transition.

How does the seismic design category affect the spread footing vs mat slab commercial foundation choice?

In Seismic Design Category D and higher, which covers most of the Bay Area, spread footing systems require continuous grade beams connecting all column footings to prevent independent rocking under lateral ground motion. The mat slab inherently satisfies this requirement through its monolithic behavior, which is one reason our structural engineers often recommend the mat slab on Bay Area commercial projects even when soil conditions would technically permit isolated pads.

What soil bearing capacity is required for spread footings to be a viable option on a small commercial project?

Our team considers spread footings viable when the geotechnical report confirms allowable bearing capacity of at least 1,500 to 2,000 pounds per square foot at the design footing depth. Below that threshold, the required pad sizes become so large that they overlap on the structural layout, at which point the mat slab is both structurally superior and typically more cost-effective to build.

How long does it take to pour and cure a mat slab for a small commercial building?

A mat slab for a building in the 3,000- to 8,000-square-foot range typically requires one full day for the concrete pour, followed by a minimum seven-day wet cure before structural framing loads can be applied above. Total elapsed time from subgrade preparation to frame-ready slab is generally 10 to 14 days, including subgrade compaction, vapor barrier placement, rebar installation, and inspection holds.

Does the foundation type chosen affect the commercial building permit timeline in Bay Area cities?

The foundation type itself does not inherently extend permit timelines, but switching systems after the initial submittal almost always triggers a plan recheck cycle that runs four to eight weeks depending on the jurisdiction. Our team locks in the foundation type during the pre-application geotechnical phase so that the structural drawings submitted for permit reflect the final system — the commercial foundation permit process across Bay Area cities is detailed further in our guide on commercial foundation permit requirements for Bay Area contractors.

The right foundation for a small commercial building is never the cheapest one on paper — it is the one that matches the soil beneath the slab, the loads above it, and the seismic demands that will test both for decades to come.
