What separates a code-compliant garage conversion from a project that stalls at plan check? In most cases, the answer lies beneath the floor. Understanding garage conversion ADU foundation requirements in the Bay Area means grasping why a slab poured for a vehicle is almost never engineered for a habitable space—and what it takes to close that gap. Pro Home Foundation's ADU foundation services routinely begin with exactly this evaluation: an existing garage slab that looks solid on the surface but carries none of the design parameters that residential occupancy demands.

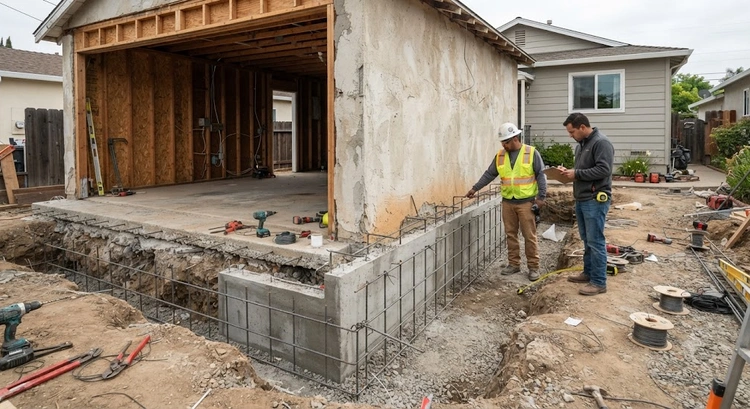

Garage conversion ADU foundation requirements Bay Area — perimeter footing excavation alongside existing concrete slab
Figure 1 — Perimeter footing excavation alongside an existing garage slab is a common starting point for Bay Area ADU conversion foundation upgrades.

California's Department of Housing and Community Development sets minimum habitability standards that cascade into structural requirements, and Bay Area jurisdictions—Santa Clara, Alameda, Contra Costa, San Mateo, and Marin counties among them—layer local amendments on top. A garage slab is typically 3.5 to 4 inches thick with minimal or no rebar, poured to support vehicle loads distributed across a wide footprint, not the uniform live loads of 40 psf that residential floors must carry. Add the Bay Area's seismic environment and expansive clay soils, and the structural delta between what exists and what code requires becomes substantial.

Engineers reviewing garage conversion projects consistently flag three issues: insufficient slab thickness, absent or inadequate perimeter footings, and no connection between the existing slab and any lateral force-resisting system. These are not cosmetic shortfalls—they affect permit approval, occupancy certification, and long-term structural integrity.

Chart comparing garage slab specifications versus residential ADU foundation requirements for Bay Area conversions
Figure 2 — Typical garage slab specifications compared against California Residential Code requirements for habitable ADU foundation systems.

Why Garage Slabs Fall Short of Residential Standards

The Engineering Gap Between Parking and Living

Residential structural slabs are engineered to fundamentally different criteria than garage slabs from the outset. A garage slab functions as a flatwork element—unreinforced or lightly reinforced, with thickness and mix design calibrated to wheel loads distributed across a large area. Residential floor systems, whether slab-on-grade or raised, must carry concentrated point loads from partitions, appliances, and occupants, and they must transmit lateral seismic forces to grade beams and perimeter footings designed for that purpose.

The California Residential Code, Part 2.5 of Title 24, requires habitable-space slabs to achieve a minimum 2,500 psi compressive strength—though most Bay Area engineers specify 3,000 psi or higher given local soil variability. Perimeter thickening under CRC Section R506 must reach 12 inches of depth below undisturbed grade with a minimum 6-inch width. Most existing garage slabs have no such integral footing thickening; the perimeter simply tapers to a blunt edge or terminates against a stem wall that was never designed to anchor a habitable structure.

Seismic Demands the Bay Area Adds

The Bay Area sits within ASCE 7 Seismic Design Category D, the highest residential designation in the continental United States. That classification requires ADU foundations to provide positive connections between the slab, any stem walls, and the framed structure above. Without a continuous perimeter footing tied to the slab and anchored through hold-downs to the mudsill, the building can slide or rack during a seismic event. This anchorage requirement alone drives the majority of garage conversion foundation upgrades across the region, regardless of whether the existing slab is otherwise in acceptable condition.

The Foundation Assessment and Permit Pathway

Geotechnical and Structural Evaluation

The assessment phase begins before any permit submittal. A licensed geotechnical engineer characterizes soil bearing capacity, expansion potential, and—where applicable—liquefaction risk. The Bay Area's Quaternary alluvial deposits, particularly common in the South Bay flatlands, East Bay lowlands, and portions of San Mateo County, present elevated liquefaction susceptibility that triggers additional design requirements. Understanding how Bay Area soil conditions affect room addition and ADU foundation design provides essential context for scoping any conversion project accurately before engineering begins.

Following the geotechnical review, a structural engineer evaluates the existing slab: core samples establish actual in-place compressive strength, and ground-penetrating radar or physical probing locates rebar, post-tension tendons, or their absence. The engineer's report becomes the design basis for the foundation upgrade plan submitted to the building department and directly determines whether a hybrid upgrade or full replacement is the appropriate path forward.

Permit Submittal and Departmental Review

Most Bay Area jurisdictions process ADU permits under streamlined timelines mandated by AB 2221 and SB 897, but structural drawings still require full plan check. The submittal package typically includes architectural plans, structural calculations with the engineer's wet stamp, a soils report where the jurisdiction requires one, and Title 24 energy compliance documentation. Plan check reviewers focus heavily on the foundation-to-frame connection detail and on whether the perimeter footing design is consistent with the soils report recommendations—discrepancies between these documents are a leading cause of correction cycles.

When Foundation Replacement Is Justified—and When It Isn't

Indicators That Full Replacement Is Warranted

Full slab replacement becomes the appropriate path when core samples return compressive strengths below 2,000 psi, when the slab exhibits through-cracking or differential settlement exceeding acceptable limits, or when the garage sits on fill material lacking the bearing capacity required for residential loads. Projects in documented liquefaction zones often require a deepened foundation system—spread footings or drilled piers to competent bearing strata—that cannot be integrated into an existing thin slab regardless of its surface condition.

When Strategic Upgrades Preserve the Existing Slab

Many garage slabs in Bay Area neighborhoods built between the 1960s and 1990s were poured at 4 inches with light wire mesh. These slabs frequently pass structural review with targeted interventions: perimeter footing excavation and pour around the slab, epoxy-doweled rebar connecting new footings to the existing concrete, and slab thickening at concentrated load locations. Epoxy-doweled connections between new perimeter footings and existing slabs are among the most cost-effective structural upgrades available in garage conversion work. This hybrid approach preserves the majority of the existing concrete, reduces demolition waste, and shortens the construction timeline compared to a complete slab replacement.

Pro insight: Always pull a core sample before committing to a hybrid upgrade. A slab that looks intact on the surface can return compressive strength below 2,000 psi, which changes the structural calculus and the permit submittal entirely.

Structural Approaches That Protect Long-Term ADU Value

Footing Depth and Soil Movement

Bay Area clay soils—prevalent throughout the Alameda County hills, the peninsula, and much of the North Bay—expand and contract seasonally with moisture changes. Footings that terminate within the active zone, typically the top 18 to 24 inches of expansive clay, are subject to heave forces that progressively crack slabs and rack framed walls. Engineers familiar with the region routinely specify 18 to 24 inches of embedment at minimum, sometimes deeper on south-facing slopes where clay profiles thicken. The long-term value of an ADU conversion depends significantly on whether the foundation was designed for these site-specific soil dynamics rather than to minimum code thresholds alone.

Connectivity to the Lateral System

A garage conversion ADU's lateral force-resisting system—typically wood-framed shear walls with structural sheathing—must connect continuously from the roof diaphragm down through the wall framing and into the foundation. The foundation-to-shear-wall hold-down connection is the most heavily scrutinized detail in Bay Area ADU permit reviews, and engineers specify anchor bolt schedules, hold-down hardware, and mudsill plate sizing based on the seismic demand calculated for the specific site location. These details represent a significant portion of the foundation upgrade cost and are non-negotiable under current code.

Weighing the Structural Trade-offs of a Garage Conversion Foundation

Conversion vs. New Detached ADU Foundation

Understanding where garage conversion foundation scope lands relative to new construction helps homeowners make structurally and financially informed decisions. The comparison below reflects typical Bay Area project parameters across foundation system types.

Foundation Scenario Typical Scope Relative Cost Driver Schedule Impact
Hybrid upgrade (sound slab) Perimeter footings + epoxy dowels + anchor bolts Labor-intensive excavation adjacent to slab 2–4 weeks added to framing start
Full slab replacement Demo existing slab, regrade, pour new engineered slab Demolition + disposal + full rebar schedule 4–6 weeks added
New detached ADU slab Blank-slate design, no existing conditions Excavation + formwork on clean site Baseline (no remediation)
Deepened system (liquefaction zone) Drilled piers or spread footings to bearing strata Drilling equipment + structural engineer oversight Adds 3–5 weeks + geotech monitoring

A new detached ADU starts with a blank-slate foundation optimized for the site—no existing slab to work around, no unknown concrete quality to assess, and no hybrid connection details to engineer. The detached ADU foundation types overview covers the slab, crawl space, and raised options available for new construction, providing a useful structural baseline for comparison when garage conversion scope begins approaching full replacement territory.

Practical Approaches That Reduce Cost and Schedule Risk

Pre-Application Meetings and Early Geotech

Most Bay Area building departments offer pre-application consultations that allow project teams to present foundation upgrade strategies before full plan submittal. These meetings surface jurisdiction-specific requirements—some cities require soils reports for all ADU conversions, others only for projects in designated geologic hazard zones—and allow the structural engineer to calibrate the design to what plan check will actually require, reducing correction cycles. Early geotechnical investigation, ideally completed before the structural engineer begins design drawings, eliminates the costly redesign loop that occurs when soil data arrives after structural calculations are already underway. The relationship between soil data and structural design decisions is explored in depth in the guide on what a soil report tells your foundation engineer.

Sequencing Foundation Work With Framing

Foundation upgrades and framing work must be carefully sequenced. Perimeter footing excavation immediately adjacent to an existing slab can undermine edge support if not properly shored during the excavation phase. Contractors who deviate from the engineer-specified excavation sequence to compress the schedule create structural liability that far exceeds any time savings achieved. Structural engineers typically prescribe the excavation sequence, footing pour sequence, and backfill compaction requirements as part of the construction documents, and these specifications carry the same permit authority as the structural drawings themselves.

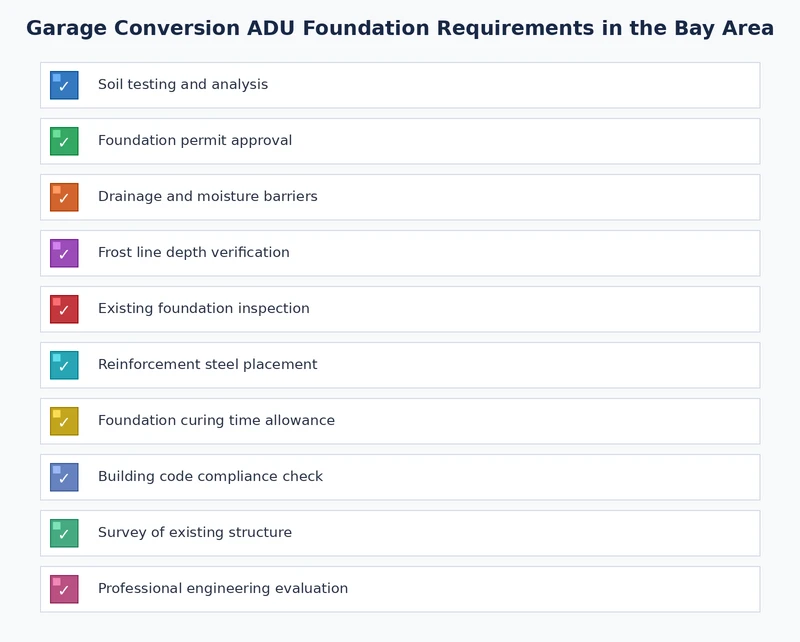

Checklist of garage conversion ADU foundation requirements and inspection milestones for Bay Area projects
Figure 3 — Key inspection milestones and documentation requirements for garage conversion ADU foundation work in Bay Area jurisdictions.

Common Garage Conversion Scenarios Across the Bay Area

Attached Garages in Older Peninsula Homes

Peninsula cities—Redwood City, San Mateo, Burlingame, and their neighbors—contain large numbers of postwar ranch homes with attached two-car garages on continuous perimeter footings. These garages often have better foundation connectivity than detached structures because the perimeter footings were poured integrally with the original house foundation. Conversion projects in this housing stock typically require footing deepening, slab thickening at bearing wall locations, and anchor bolt installation rather than full perimeter footing construction from scratch. Plan check timelines in San Mateo County run eight to twelve weeks for ADU permits with structural components.

Detached Garages in East Bay Flatland Neighborhoods

Oakland, Hayward, and Fremont contain substantial stock of detached garages on independent slabs with no perimeter footings—just a thickened edge pour at best. These projects require the most extensive foundation work of any Bay Area conversion type: full perimeter footing installation, slab assessment and potential replacement, and in liquefaction-zone parcels, potentially deepened footing systems to competent bearing soils. The Association of Bay Area Governments liquefaction mapping provides parcel-level hazard data that informs both the geotechnical scope and the structural design approach for these projects.

South Bay Infill ADUs in Santa Clara and San Jose

Santa Clara and San Jose permit ADU conversions under relatively streamlined review processes, but both cities apply California's seismic requirements fully and require structural engineering for any foundation modification. South Bay soils vary considerably between compact alluvial deposits near the foothills and softer bay mud closer to the shoreline—projects near Alviso, southern Sunnyvale, and the Santa Clara bayfront warrant particular attention to bearing capacity and long-term settlement. For projects where homeowners are also evaluating broader construction costs, the guide on ADU foundation costs in the Bay Area provides current budget benchmarks across foundation system types.

Frequently Asked Questions

Do all garage conversions in the Bay Area require foundation upgrades?

Not universally, but the vast majority do. Garages built before modern seismic code cycles—generally pre-1980—almost always lack the perimeter footings, slab thickness, and anchor bolt schedules required for residential occupancy under current California code. Newer garages on engineered foundations may need only anchor bolt upgrades and minor thickening rather than full perimeter footing installation.

How does a liquefaction zone designation affect garage conversion ADU foundation requirements in the Bay Area?

Parcels within mapped liquefaction zones trigger additional geotechnical investigation requirements and typically require foundation systems that extend below liquefiable soils to competent bearing strata. This can mean drilled piers or deepened spread footings rather than the conventional slab-on-grade approach, adding meaningful cost and schedule to the project.

Can an existing garage slab be kept if it passes a core sample test?

Yes. If core samples confirm compressive strength at or above 2,500 psi, and the slab shows no through-cracking or differential settlement, engineers frequently design hybrid upgrade schemes that retain the existing slab while adding perimeter footings via saw-cut or excavation along the perimeter. The new footings are connected to the existing slab with epoxy-doweled rebar, creating the continuous foundation system the code requires.

What structural documentation is required for a garage conversion foundation permit in Bay Area cities?

A typical submittal includes stamped architectural and structural drawings, structural calculations prepared by a licensed engineer, a geotechnical report where the jurisdiction requires one, and Title 24 energy compliance documentation. Some cities also require a completed ADU checklist. Plan check reviewers specifically look for foundation-to-frame connection details and consistency between the structural drawings and soils report recommendations.

How do Bay Area garage conversion ADU foundation requirements differ from those in other California regions?

The primary difference is seismic design category. The Bay Area sits in ASCE 7 Seismic Design Category D, which imposes stricter hold-down, anchor bolt, and lateral connection requirements than Seismic Design Categories B or C applicable in less active California regions. This higher category drives more extensive foundation-to-frame connection specifications and typically results in higher structural upgrade costs compared to equivalent projects in Southern California's inland areas.

Key Takeaways

  • Most Bay Area garage slabs lack the perimeter footings, slab thickness, and seismic anchor connections required for residential ADU occupancy under current California code, making foundation upgrades a near-universal project requirement.
  • The choice between a hybrid upgrade and full slab replacement hinges on core sample compressive strength, slab settlement history, and whether the parcel sits within a mapped liquefaction or expansive soil zone.
  • Early geotechnical investigation and a pre-application meeting with the building department eliminate the most common and costly plan check correction cycles before they occur.
  • Seismic Design Category D requirements—specific to the Bay Area—drive stricter hold-down hardware, anchor bolt schedules, and lateral connection details that significantly shape both the foundation upgrade scope and the overall project budget.
