Is your Bay Area home one earthquake away from serious structural damage? If it was built before 1980 and sits on a raised foundation, there's a good chance it is — unless you've already taken action. Cripple wall bracing Bay Area homeowners rely on is one of the most impactful seismic upgrades available, yet most homeowners have never heard of it. Cripple walls are the short wood-framed walls between your concrete foundation and first floor, and without proper bracing, they're a collapse risk every time the ground shakes.
The good news is that this fix is well-established, code-approved, and affordable compared to the cost of structural damage after a major earthquake. Thousands of homes in Oakland, Berkeley, Richmond, and San Jose still lack this protection. If yours is one of them, this guide explains exactly what's at stake, what the retrofit involves, and what it costs.
Cripple wall failures aren't theoretical. During the 1989 Loma Prieta earthquake, hundreds of homes collapsed or slid off their foundations because these short walls racked and gave way. If your home has a crawl space under the first floor, this is almost certainly your biggest seismic vulnerability. And it's fixable.
Contents
Why Older Bay Area Homes Have a Hidden Weak Spot
Most Bay Area homes built before the mid-1980s were constructed before modern seismic codes took effect. Builders and engineers at the time didn't fully account for lateral forces — the side-to-side shaking that earthquakes generate. The result is a generation of houses that look structurally sound from the outside but carry a critical vulnerability hidden in the crawl space. You can't see it from the sidewalk, but it matters enormously when the ground starts moving.
What a Cripple Wall Is
A cripple wall is a short wood-framed wall, typically 12 to 48 inches tall, that runs along the perimeter of a home's crawl space. It sits on top of the concrete foundation and supports the floor joists above. The name comes from the fact that these walls are shorter than a full-height stud wall — "crippled" by design to fill the gap between grade and the first floor.
In older construction, these walls were built with no diagonal bracing and no structural sheathing. The studs were simply nailed together in a rectangle. That design performs fine under gravity loads — the weight of the house pressing straight down. But earthquakes don't push straight down. They push sideways. And a simple rectangle of wood studs offers very little resistance to that kind of force. The geometry itself is the problem.
How Earthquakes Exploit This Design
When an earthquake hits, the concrete foundation moves with the ground. But the house above has inertia — it wants to stay put. The cripple wall sits between these two forces and has to absorb that difference in motion. Without sheathing or diagonal bracing, the wall racks like a parallelogram and collapses. The house above drops and shifts, sometimes by several feet. This is the precise failure mode that destroyed hundreds of homes in 1989.
According to the U.S. Geological Survey, the Bay Area sits on some of the most seismically active fault systems in the country — the Hayward Fault, the San Andreas Fault, and several secondary faults. A major Hayward rupture alone could affect hundreds of thousands of structures. Homes with unbraced cripple walls are consistently identified as among the most vulnerable building types. That's not a projection — it's a pattern confirmed by every major local earthquake in the past century.
The fix isn't complicated, but it does require proper materials, correct installation, and permits. Skipping any of those steps leaves your home at risk regardless of how much work you put in.

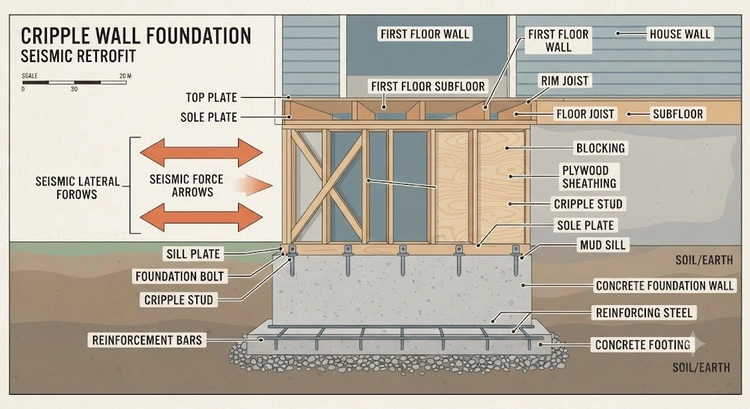

How Cripple Wall Bracing Works: The Retrofit Process
Cripple wall bracing Bay Area contractors install follows a specific methodology developed through decades of earthquake research and post-disaster analysis. The California Existing Building Code and local jurisdictions have standardized this process. Understanding the basics helps you evaluate bids and ask the right questions before work begins.
Plywood Sheathing — The Primary Fix

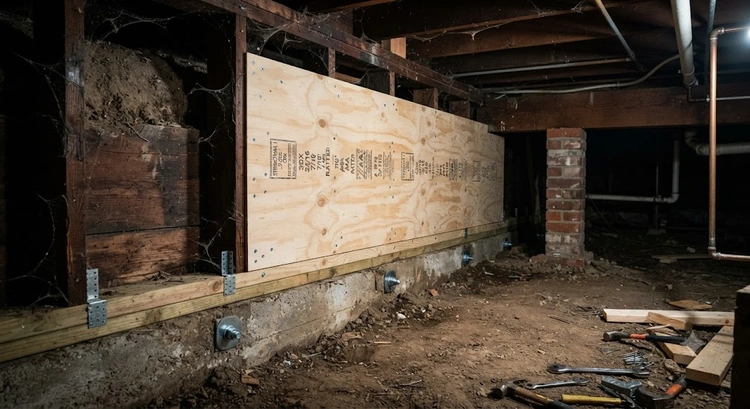

The most common and effective method is bolting structural plywood or oriented strand board (OSB) to the inside face of each cripple wall. This sheathing transforms a flexible rectangle of studs into a rigid shear panel that resists lateral forces without racking. The plywood is typically 15/32-inch thick, nailed at close intervals — usually 2 to 4 inches at panel edges — to transfer seismic forces into the framing efficiently.
Sheathing alone isn't enough, though. The cripple wall also needs to be anchored to the concrete foundation below it. This is done with expansion bolts or epoxy anchor bolts drilled into the concrete. Without this anchor, the entire wall assembly can slide off the foundation during a quake even if the sheathing is perfect. The anchor bolts solve a different problem than the sheathing — you need both.
Above the cripple wall, the connection between the wall and the floor framing matters too. Engineered metal connectors — hold-downs and framing ties — lock the assembly together at the top. All three components working together are what make a retrofit perform as designed: anchor bolts at the bottom, sheathing along the wall, and metal connectors at the top. Remove any one of them and the system's performance drops substantially.
Permits and Engineering
Cripple wall bracing is a structural modification. It requires a building permit in every Bay Area city and county. Most jurisdictions also require engineering review, or at minimum a plan showing stud spacing, plywood layout, and anchor bolt placement. A qualified contractor handles most of this — but you should know what's involved before you hire anyone.
The Bay Area foundation repair permit process follows similar steps to a cripple wall retrofit — inspections at key milestones, approved plans kept on site, and a final sign-off before the work is considered complete. Expect at least one interim inspection after sheathing is installed and before the crawl space is closed up. Plan for that timing when scheduling the work.
Some Bay Area cities have adopted streamlined residential seismic retrofit permit programs. Oakland, Berkeley, and San Jose all have resources specifically for this type of work. Ask your local building department — the application process is often simpler than homeowners expect.
Bracing Methods: A Side-by-Side Look
Not every cripple wall situation is identical. The height of the wall, the spacing of the studs, access conditions in the crawl space, and the condition of existing framing all affect which approach makes the most sense. Here's a comparison of the methods contractors use most often.
| Method | Best For | Relative Cost | Permit Required | DIY Feasible? |
|---|---|---|---|---|
| Structural Plywood Sheathing | Most homes with standard stud spacing | Moderate | Yes | Rarely recommended |
| OSB Sheathing | Budget-conscious retrofits with sound framing | Slightly lower | Yes | Rarely recommended |
| Steel Moment Frame | Tall or heavily loaded cripple walls | High | Yes, with engineering | No |
| Anchor Bolts Only | Supplement — not a standalone fix | Low | Yes | Possible but risky |
| Full Foundation Replacement | Severely deteriorated foundations | Very high | Yes, with engineering | No |
Choosing the Right Method for Your Home
Plywood sheathing with anchor bolts is the right answer for the vast majority of Bay Area homes. It's what the California Existing Building Code prescribes for standard residential retrofits, and it's what structural engineers will recommend for homes with cripple walls under 48 inches tall. The performance record of this approach is extensive — it's been validated by post-earthquake analysis going back to Loma Prieta.
Steel moment frames come into play when cripple walls are taller than typical, when the home has unusual loading conditions, or when existing framing is too deteriorated to support sheathing. They cost more but offer higher performance for challenging situations. If your contractor recommends this approach, ask to see the engineering rationale so you understand why.
Anchor bolts alone — without sheathing — do not constitute a complete retrofit. They prevent the wall from sliding off the foundation, but they don't prevent racking. Racking is the failure mode that brings the house down. You need both elements for meaningful seismic protection.
Cripple Wall Bracing Costs in the Bay Area
Cost is usually the first question homeowners ask. The honest answer is that it varies — but the range is narrower than most people expect. For a typical single-story Bay Area home with a standard crawl space, a complete cripple wall retrofit generally runs $3,000 to $8,000. Larger homes, taller cripple walls, and difficult access push that figure higher. Smaller homes with good crawl space conditions can come in below the midpoint.
For a full breakdown of what goes into seismic retrofit pricing across different types of work, the seismic retrofit cost guide for Bay Area homeowners covers the variables in detail. Cripple wall bracing is often just one part of a broader retrofit that also includes mudsill bolting and potentially soft-story work on multi-unit buildings.
What Drives the Price Up or Down
The two biggest cost drivers are crawl space access and the condition of existing framing. If your crawl space clearance is under 18 inches, workers can't move freely — labor costs go up significantly. If existing studs are rotted or termite-damaged, they need replacement before sheathing can be applied. Both conditions are common in Bay Area homes built before 1950, especially in older East Bay neighborhoods.
Other factors that affect the final number include:
- The total linear footage of cripple wall around your home's perimeter
- Whether anchor bolts are already installed or need to be drilled and set
- Local permit fees, which vary meaningfully by city
- Whether stamped engineering drawings are required by your jurisdiction
Homes with standard perimeter shapes, adequate clearance, and sound framing land at the lower end of the range. Complex floor plans, low clearance, and deteriorated wood push costs toward the top. Get at least two detailed bids from licensed contractors before committing — and make sure both bids cover the same scope.
Permit and Engineering Fees
Permit fees for residential seismic retrofits in the Bay Area typically run $200 to $600 depending on the city. Engineering fees — if stamped drawings are required — add another $500 to $1,500. Some contractors bundle engineering into their overall quote; others price it separately. Ask upfront so you're comparing equivalent scopes.
The California Earthquake Authority offers bolt-and-brace grants for qualifying low- and moderate-income homeowners. These grants can cover a meaningful portion of retrofit costs. Your contractor should be familiar with these programs. If they're not, that's worth noting. The program has helped thousands of California homeowners complete retrofits that would otherwise be out of reach.
If your property has foundation concerns beyond the cripple walls, the team at Pro Home Foundation's repair and retrofit services can evaluate the full scope and give you a clear picture of what's needed and what it will cost.
After the Retrofit: Protecting Your Investment
Once your cripple walls are braced, most of the heavy lifting is done. But like any structural system, a cripple wall retrofit benefits from periodic attention. The crawl space environment is hard on materials — moisture, pests, and slow settling can degrade components over time. A few minutes of inspection each year keeps small issues from becoming expensive ones.
What to Check Every Year
You don't need a contractor for a basic annual check. Open the crawl space access hatch and look for a few specific things. First, verify that the plywood sheathing is still firmly attached — no buckled panels, no missing nails at the edges. Second, examine the anchor bolts where the mudsill meets the foundation. They should be tight and free of heavy corrosion. Third, look at the base of the cripple wall studs for wood rot or signs of moisture damage.
Moisture is the most common long-term threat to a cripple wall retrofit. Standing water or chronic condensation in the crawl space accelerates wood rot and corrodes metal connectors faster than seismic cycles will. If you find signs of moisture intrusion, trace the source before it reaches the structural members. A vapor barrier on the crawl space floor and proper cross-ventilation address most moisture problems before they become structural ones.
When to Call a Professional
Call a licensed contractor if you observe any of the following: plywood panels that have shifted or separated from the framing, anchor bolts that are heavily corroded or loose, visible termite damage or fungal decay in the studs, or cracking in the foundation wall near anchor bolt locations. Each of these conditions can compromise the retrofit's performance in an actual earthquake — they're not cosmetic issues.
Schedule a professional inspection after any significant seismic event, even one that didn't produce obvious interior damage. Ground shaking can loosen connections and shift structural elements in ways that aren't visible without a close look in the crawl space. A post-earthquake inspection is inexpensive insurance compared to discovering a compromised connection during the next event.
If you're uncertain whether your foundation is still performing well after years of Bay Area seismic activity, start with a professional assessment. Foundations don't fail overnight — they show warning signs first. Understanding those signs helps you act before the damage compounds. Review the warning signs that your Bay Area home needs foundation repair to know what warrants urgent attention versus routine monitoring.
Frequently Asked Questions
How do I know if my home has cripple walls?
If your home has a crawl space under the first floor, it almost certainly has cripple walls. Open the crawl space access hatch and look inside — if you see short wood-framed walls sitting on top of the concrete foundation, those are cripple walls. Homes built on a full basement or a slab-on-grade foundation typically don't have them. If you're unsure, a foundation contractor can confirm during a brief on-site visit.
Is cripple wall bracing the same as a full seismic retrofit?
Not exactly. Cripple wall bracing is one component of a residential seismic retrofit. A complete retrofit also includes mudsill bolting — anchoring the sill plate to the concrete foundation. Some homes need additional work such as first-floor shear wall reinforcement. Your contractor will assess which elements apply to your specific house based on its construction, age, and local code requirements.
Do I need a permit for cripple wall bracing in the Bay Area?
Yes. Cripple wall bracing is a structural modification and requires a building permit in every Bay Area jurisdiction. Most cities also require engineering drawings showing the scope of work. Your contractor should pull the permit on your behalf as part of the project. If a contractor offers to skip the permit to reduce costs, decline. Unpermitted structural work can affect your homeowner's insurance coverage and create significant complications when you sell the property.
Final Thoughts
Cripple wall bracing is one of the most direct, proven steps you can take to protect your Bay Area home from earthquake damage. If your home has a crawl space and hasn't been retrofitted, reach out to Pro Home Foundation for an assessment — our team works with homeowners across the Bay Area on exactly this type of structural upgrade, and we can tell you quickly whether your home needs it and what the work entails.
